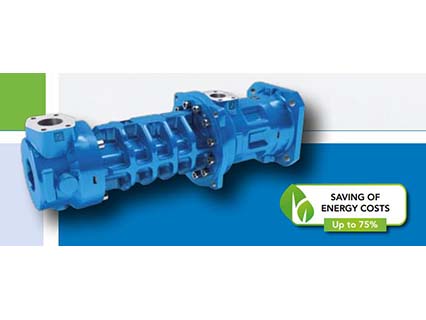

Allweiler EMTEC Triple Screw Pumps

  • For handling mal-lubricating, lubricating, abrasive and corrosive liquids
  • Very Efficient
  • Quiet Operation
  • Durable design and construction

Modern production technology represents a real challenge. Ever greater precision with extremely tight tolerances forms the foundation of modern, innovative products. At the same time, expectations for cost-efficiency in production continue to grow. When you choose EMTEC screw pumps, you can confront these challenges with confidence. Precise, extremely quite and efficient, EMTEC pumps supply chipping processes with any type of cooling lubricant at high pressure and low pulsation, all while exhibiting a robustness and longevity that is unequaled in the market.

Construction Summary:

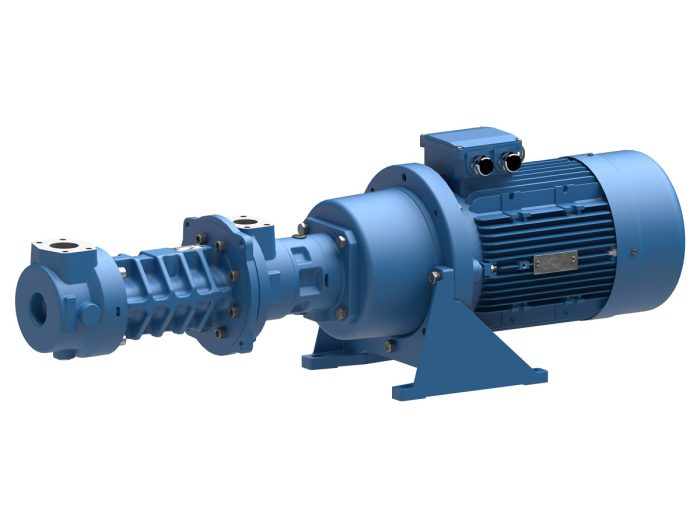

  • Block design (Motor attached to pump via flange or lantern)
  • Bulkhead mounting
  • Dry installation
  • submerged design
  • Storage tank mounting

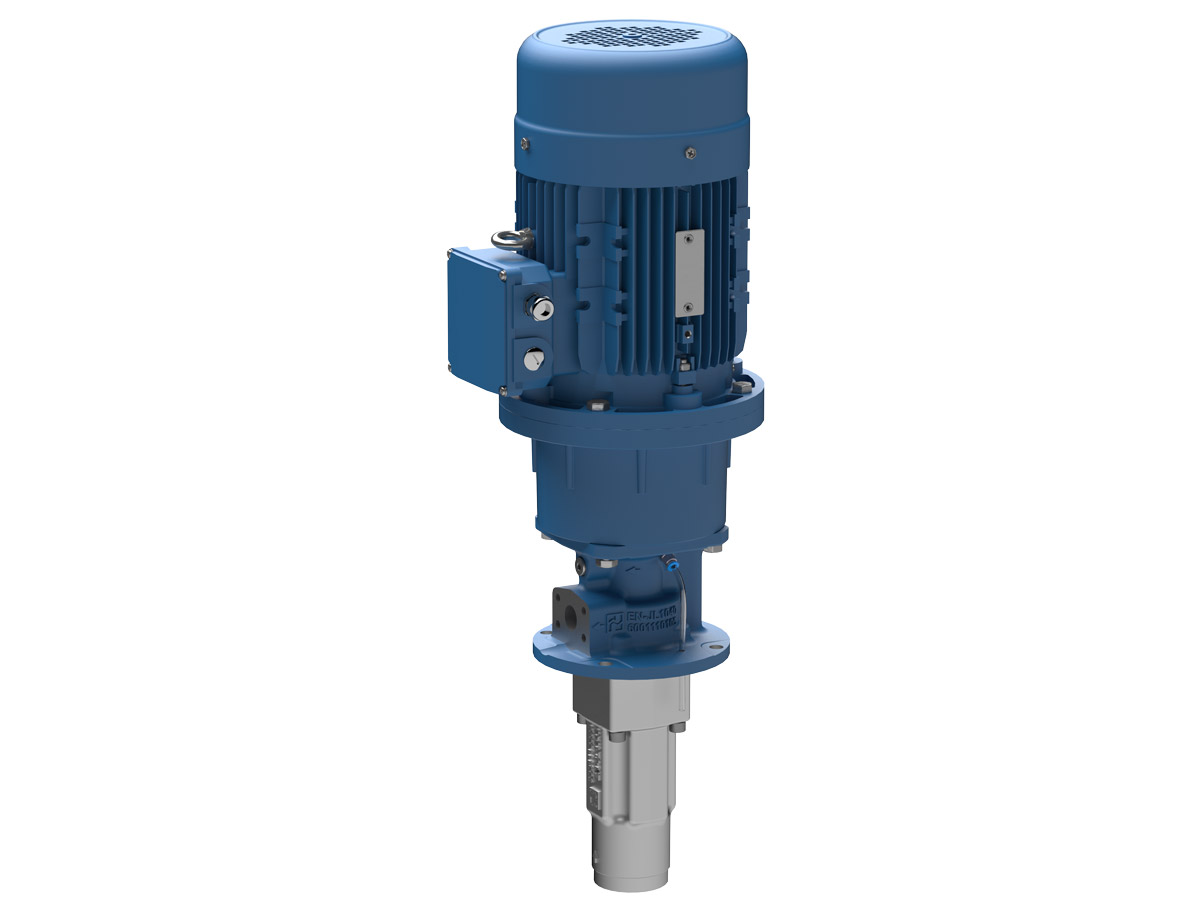

  • Vertical installation
  • Horizontal installation
  • Self – priming with shaft sealing

Specification Summary:

Capacityup to 900 L/min
Inlet Pressureup to 7 Bar
Discharge Pressureup to 130 Bar
Differential Pressureup to 120 Bar
Viscosity Range1 – 2000 mm2/s
Temperature Rangeup to 100 Degrees Celsius
Operating Speedup to 3,600 rpm
