Ebara – Horizontal Split Case Pumps – CNA/CSA

  • Extensive Range
  • High Flow
  • Cast Iron Construction

Ebara’s range of horizontal split case pumps represent a very robust, compact and competitively priced pump.  Ebara’s range commences at 0.6m3/hr right the way up to 32m3/hr.  Many models between these two flow rates offer great efficiency and flexibility based on the individual projects need.

  • Very compact design for ease of installation and permits minimum maintenance
  • Azially split casing allows the easy romoval of the top casing for impsction and service
  • A wider range of performance with head up to 150m
  • High speed drives and vertical mount available
  • Anti Corrosion materials used on the rotating parts
  • High quality sealed and cartridge type bearing unit provides the high durability
  • Mechanical seal for easy maintenance

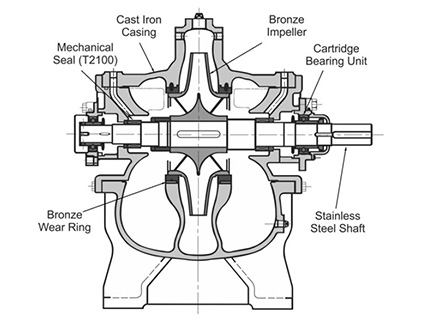

  • Materials: Cast iron casing, bronze impeller, 316 SS shaft
  • Shaft seal: Mechanical seal (optional gland packing)
  • Power used: up to 425 kW
  • Flow rates: 0.6 to 35 m3/min
  • Head: 5 to 140m
  • Outlet size: 100 to 350 mm
