Ebara – 3′ series Stainless Steel End Suction Pumps

  • Sturdy Stainless Steel Pumps for a broad range of applications
  • Back pull out for easy maintenance
  • High Efficiency
  • Quality Components
  • Built to DIN 24255 Standard

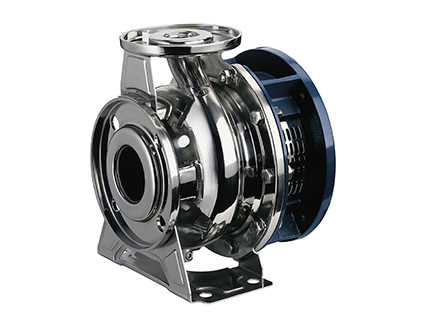

This series of stainless steel pumps feature a unique one piece volute casing that are produced using an advanced computer controlled Plasma stamping system that ensures total quality control during manufacture.  With the smooth surfaces of stamped stainless steel, this results in consistent high standard products, of superior quality and high efficiency.

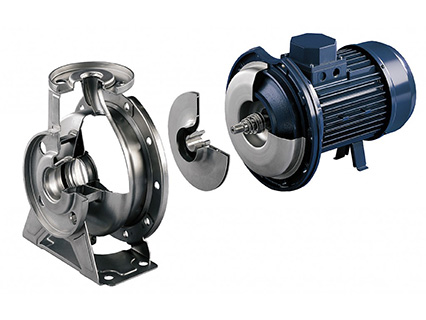

The back pull-out construction permits the dis assembly and overhaul of the impeller, shaft and bearings, without removal of the suction or discharge piping, or pump casing.

The centre line discharge and foot support under the casing ensure maximum resistance to misalignment and distortion from pipe loads.

Suitable for many applications:

  • Industrial, commercial and agricultural applications
  • Booster sets and cooling towers
  • Washing plants and air conditioning systems
  • Water supply and irrigation
  • Heat exchangers
  • Pumping or boosting of water in general

With 2 different versions, and with 2 pole & 4 pole models available, there is a large range from which to ensure the correct pump is selected.

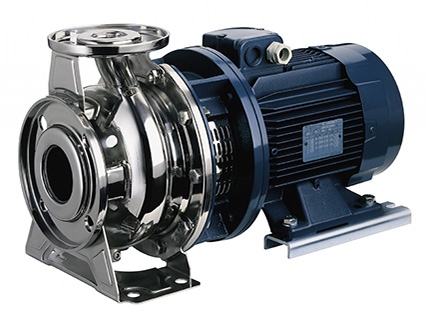

3M4 Monobloc Pumps, 4 Pole

Motor output: 0.37 to 2.2 kW (3ph)
Outlet size: 32 to 50 mm
Flow rates: 50 to 600 lpm
Head: 3 to 18 m
Liquid temp: -10 oC to +90 oC
Max. working pressure: 10 Bar

3LS4 Stub Shaft Pumps, 4 Pole

Motor output: 0.25 to 3.0 kW (3ph)
Outlet Size: 32 to 65 mm
Flow Rates: 50 to 1200 lpm
Head: 3 to 18 m
Liquid temp: -10 oC to +90 oC
Max. working pressure: 10 Bar

3M Monobloc Pumps, 2 Pole

Motor output: 1.1 to 15 kW (3ph)
Outlet size: 32 to 50 mm
Flow rates: 100 to 1200 lpm
Head: 7 to 70 m
Liquid temp: -10 oC to +90 oC
Max. working pressure: 10 Bar

3LS Stub Shaft Pumps, 2 Pole

Motor output: 1.1 to 55 kW (3ph)
Outlet Size: 32 to 80 mm
Flow Rates: 100 to 4000 lpm
Head: 7 to 90 m
Liquid temp: -10 oC to +90 oC
Max. working pressure: 10 Bar

3M4 Monobloc Pumps, 4 Pole

These pumps feature Ebaras’ unique one piece volute casing.

All the hydraulic and wetted components are manufactured in 304 stainless steel.

Compact & economical close coupled pumps utilising an extended shaft motor.

Options:

High temperature versions with Viton elastomers, suitable for liquid temperatures up to 110 oC.

Hard face mechanical seal in SiC/SiC/Viton

3LS4 Stub Shaft Pumps, 4 Pole

These pumps feature Ebaras’ unique one piece volute casing.

All the hydraulic and wetted components are manufactured in 316L stainless steel, and fitted standard with SiC/SiC/Viton mechanical seal.

Standard IEC motors used, allowing for single phase, special enclosure, or specific brand motors to be fitted.

3M Monobloc Pumps, 2 Pole

These pumps feature Ebara’s unique one piece volute casing.

All the hydraulic and wetted components are manufactured in 304 stainless steel.

Compact & economical close coupled pumps utilising an extended shaft motor.

Options:

High temperature versions with Viton elastomers, suitable for liquid temperatures up to 110 oC.

Hard face mechanical seal in SiC/SiC/Viton

3LS Stub Shaft Pumps, 2 Pole
These pumps feature Ebara’s unique one piece volute casing.

All the hydraulic and wetted components are manufactured in 316L stainless steel, and fitted standard with SiC/SiC/Viton mechanical seal.

Standard IEC motors used, allowing for single phase, special enclosure, or specific brand motors to be fitted.
