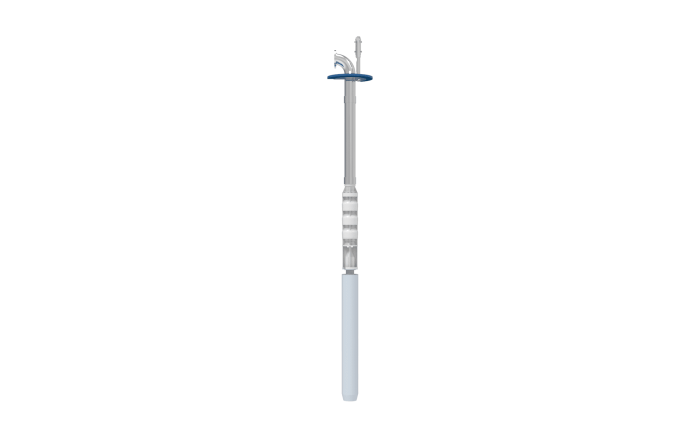

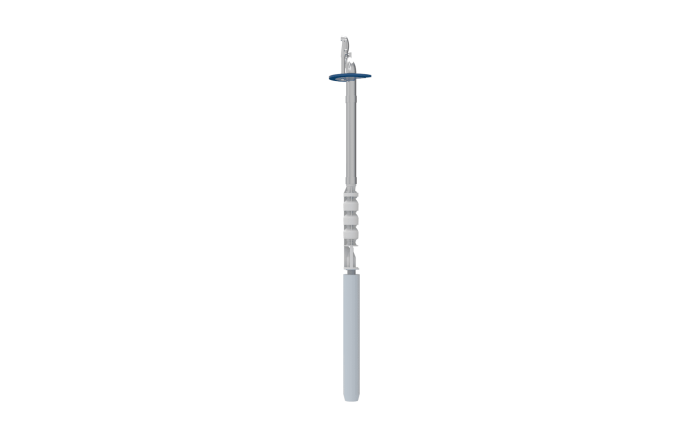

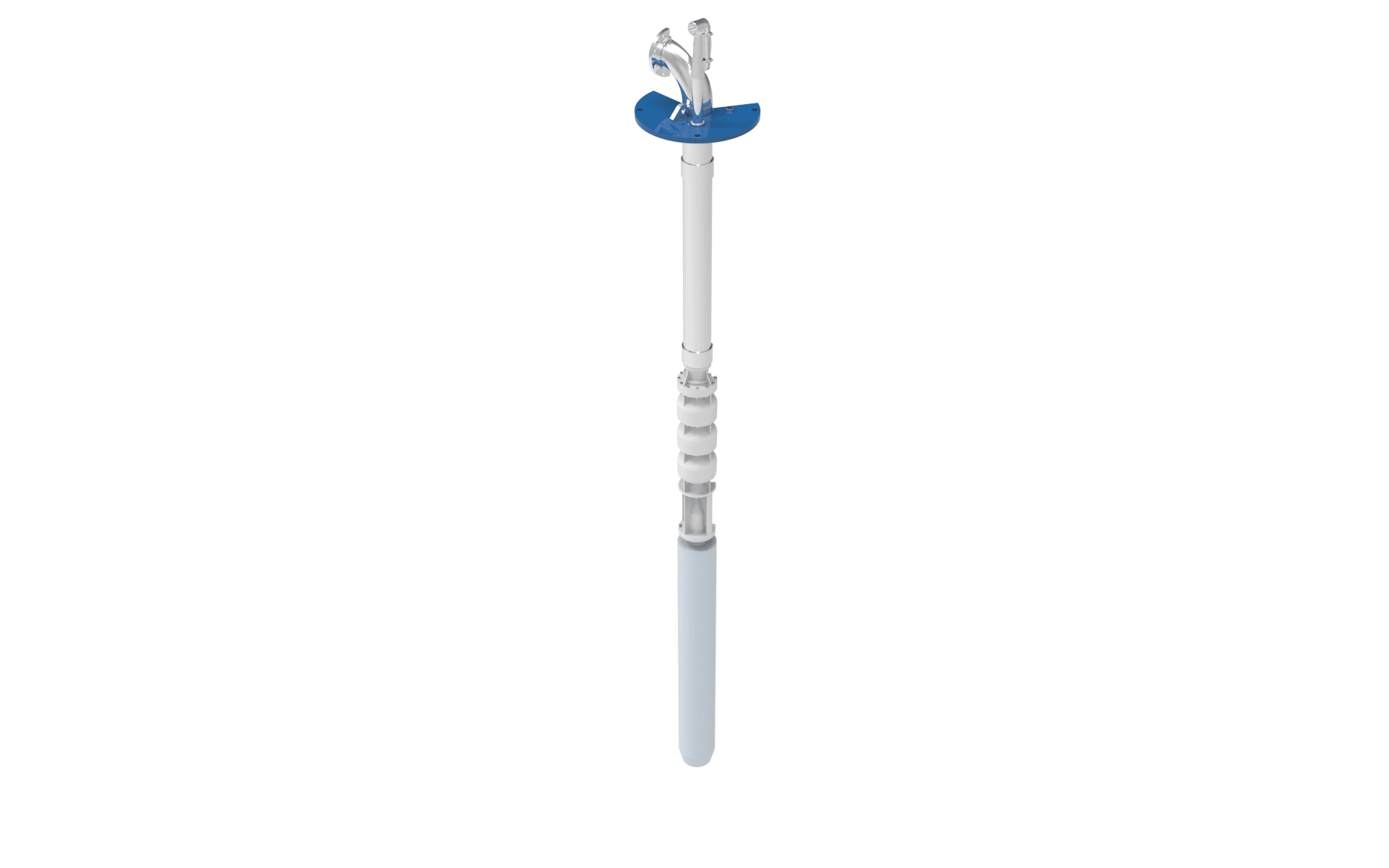

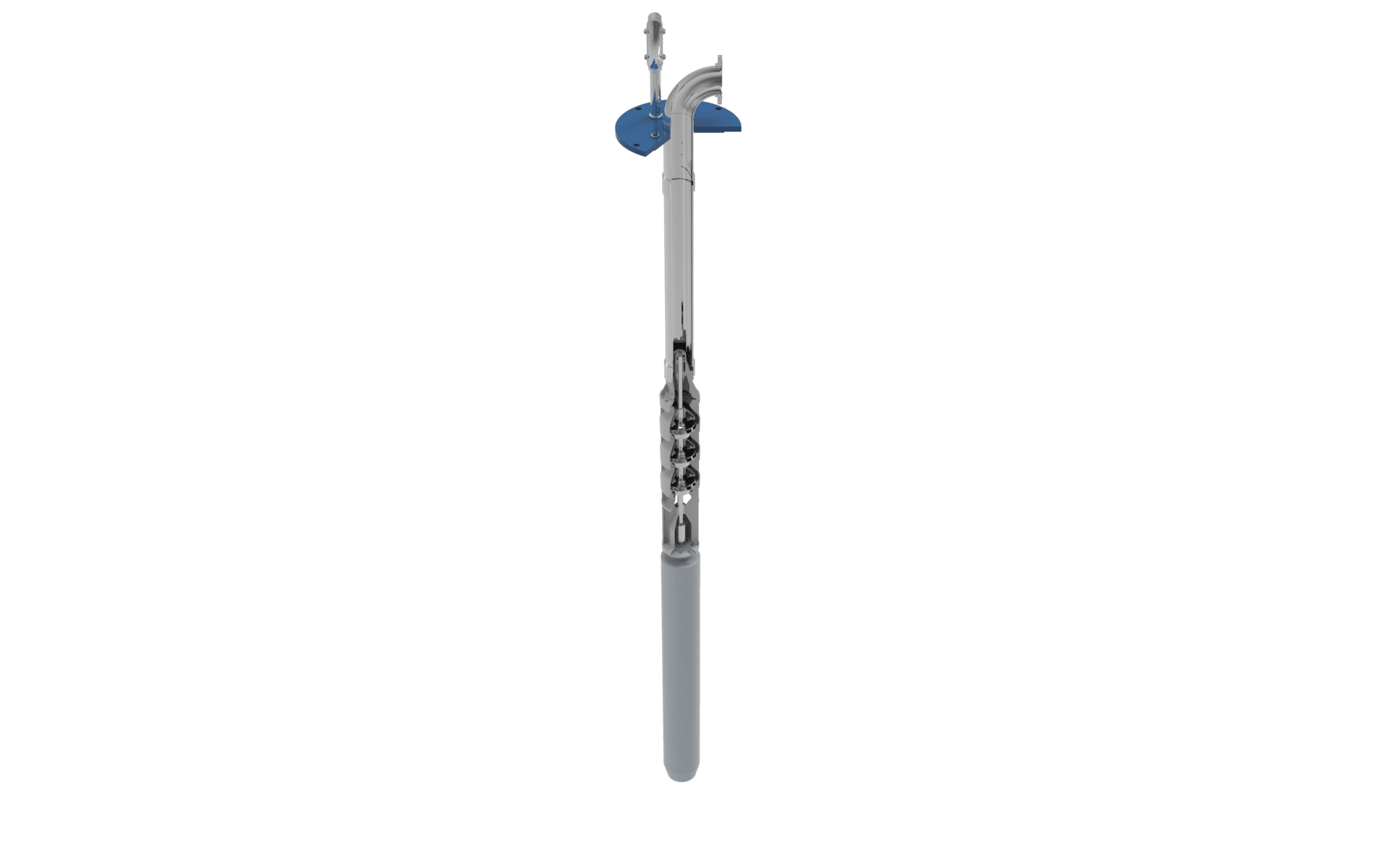

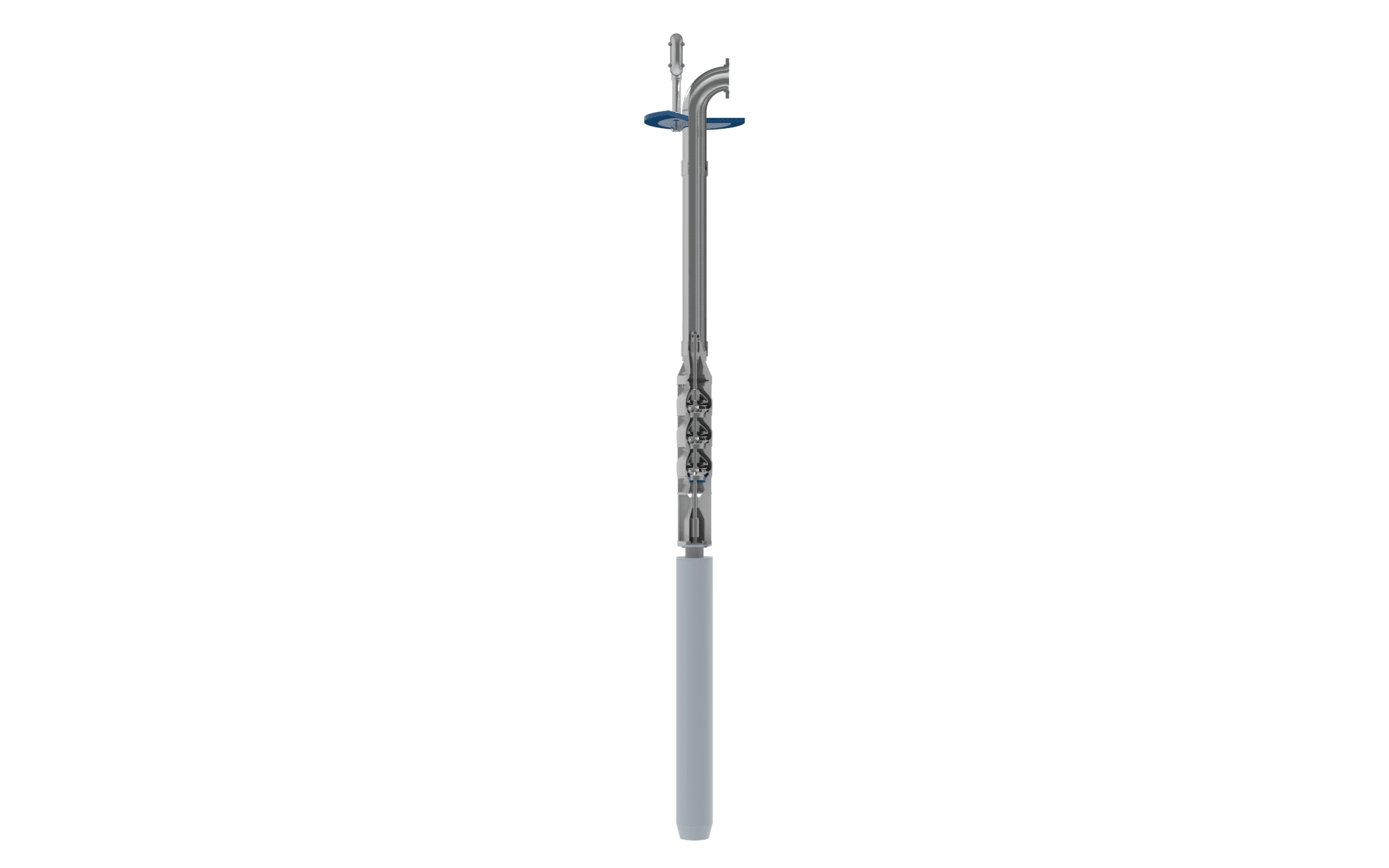

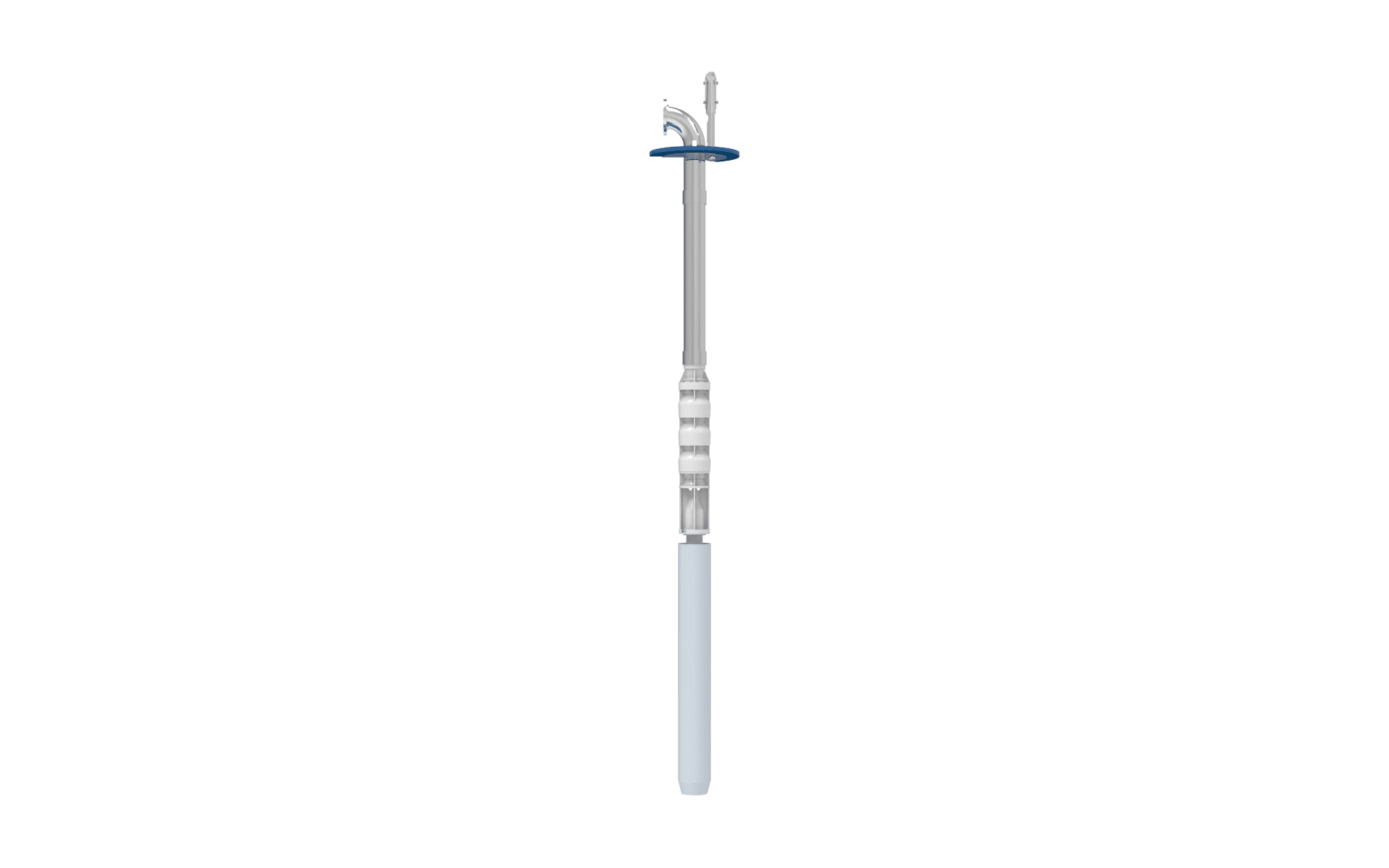

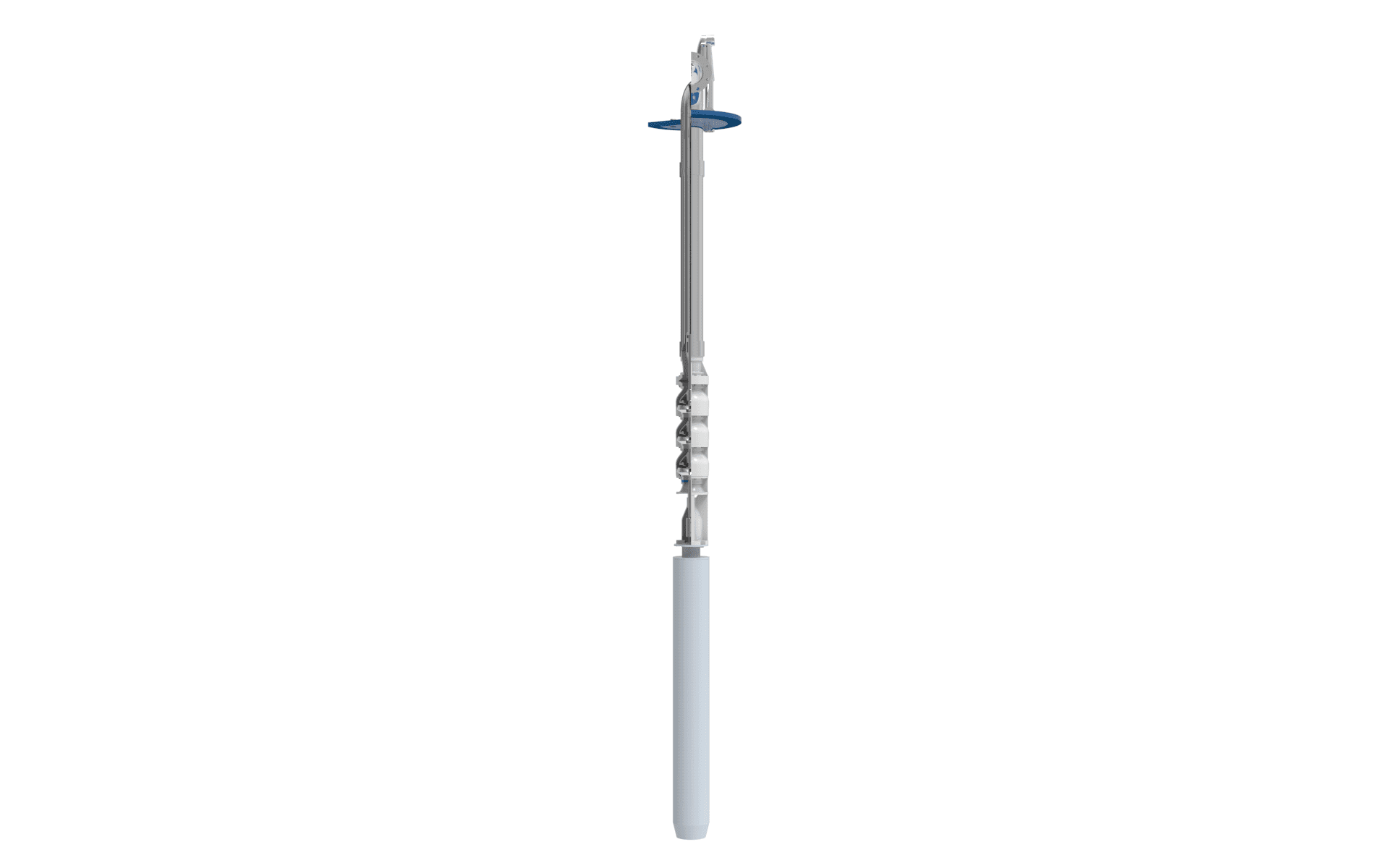

The Floway® VSB (Vertical Submersible Pump) vertical close coupled, single and multistage submersible motor pump is suitable for various applications and markets.

Available in wet pit or closed suction designs, this submersible vertical pump is also available in a selection of material combinations. The Floway® VSB has a compact connection between the pump and motor which provides maximum shaft support, the flanged column option allows for ease of assembly, an internally mounted power cable eliminates potential hazards, and motor with water-tight insulated windings ensures improved cooling, extended life, and ease of maintenance.

KEY FEATURES & BENEFITS

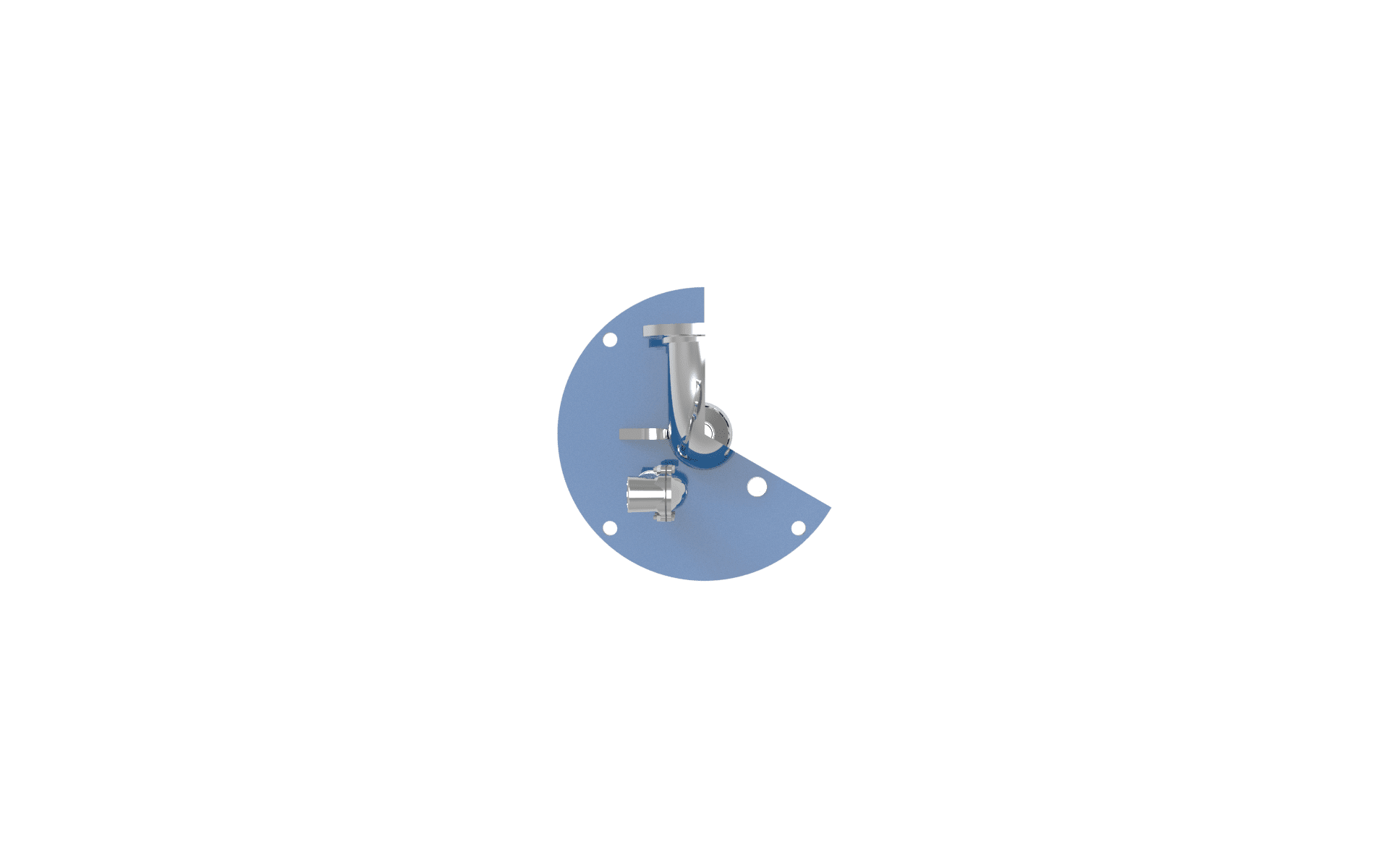

Cast/fabricated discharge elbow
Flanged & threaded column
Enclosed impellers, Multiple NDE/testing options
Bowl & impeller wear rings
Hard chrome bearing journals
Product lube shafting
Submersible electric motor
Suction barrel available
Colletted & keyed impeller mounting
Check valve available
Cable & cable guards
Controllers available

DESIGN STANDARDS

Hydraulic Institute
PRESSURE CLASS & POWER
Pressures up to 750 psi (52 bar)

CAPACITY

Up to 30,000 gpm

MATERIALS

Iron, Bronze
Ni Al Bronze
Carbon Steel
12% Chrome
Stainless Steel
Duplex SS
254 SMO
Titanium

APPLICATIONS

Process Pumps
Water Supply
Tailings Pumps
RO Treatment Pumps
Dewatering Pumps
Seepage Water Pumps
Reclaim Water Pumps
Overflow Water Pumps
Barge Mounted Pumps
Drilling, Water Supply
Water Distribution
Flood Control
Irrigation
Cooling Water
Transformer Cooling
Geothermal
Water Treatment

SIZE RANGE & DIMENSIONS

4 – 37 inches

TEMPERATURE RANGE

-40ºF (-40ºC) – 175ºF (80ºC)
