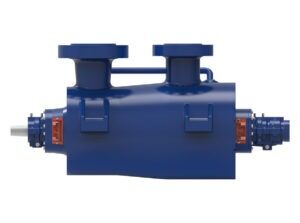

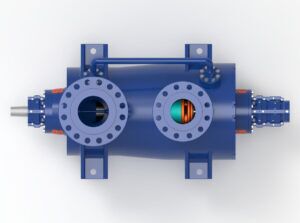

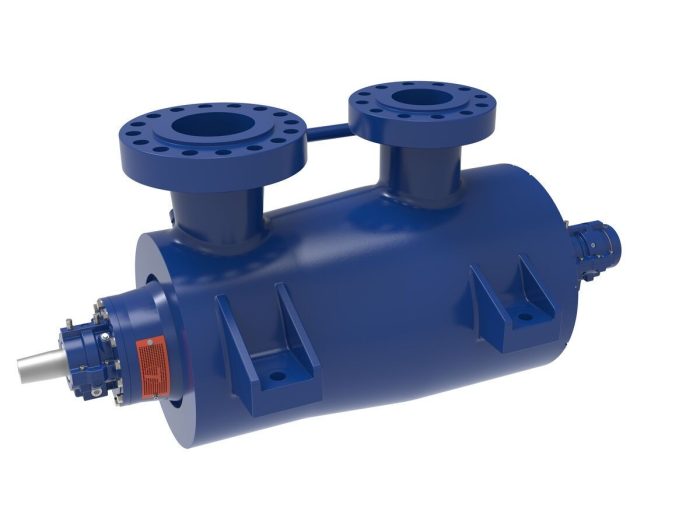

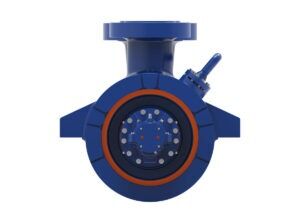

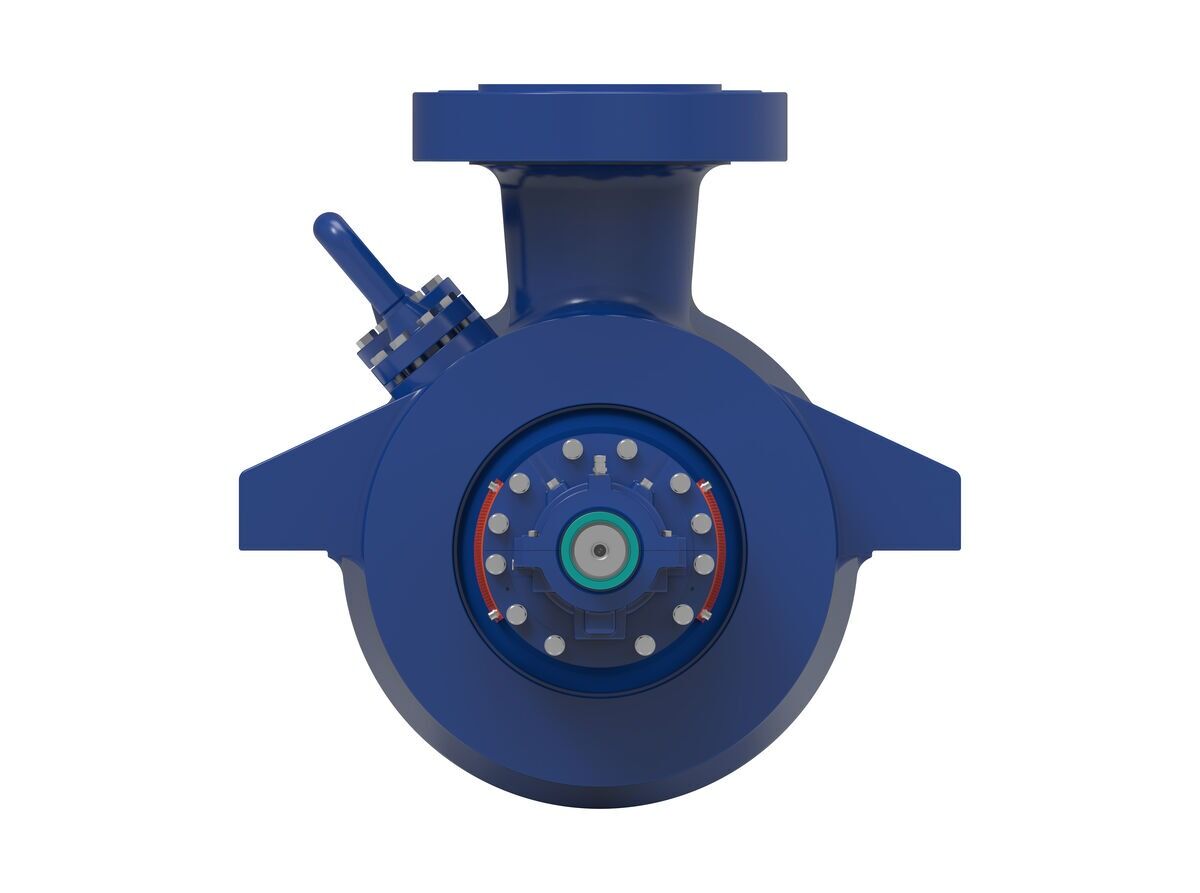

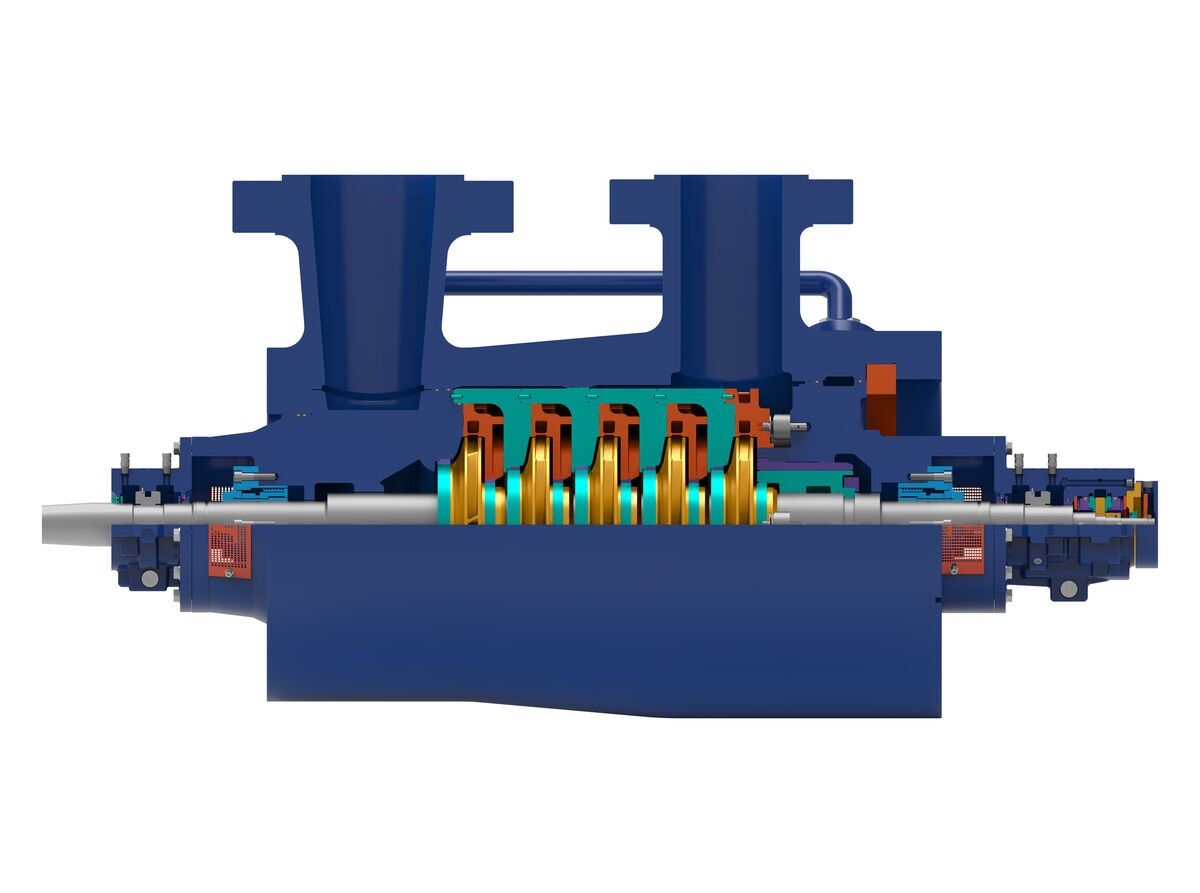

Trillium Flow Technologies updated MESB pump range builds on the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands. Our expertise in designing and manufacturing BB5 pumps dates back to the 1970s, with hundreds of units installed worldwide. This API-compliant BB5 pump range is a radially split, multi-stage, between-bearings, centerline-mounted pump with either a single or double suction first stage impeller for reduced NPSHr. The MESB has an inline impeller arrangement to minimise bearing span, and provide a more compact design. The pump range is available with bolted or shear ring end cover arrangements.

Key Features

API 610 compliant
Integral case connections to avoid non-destructive testing
Heavy-duty shaft to minimize rotor defection and maximize uptime
API 682 compliant seal chamber
Single or Double suction Impeller
Bolted or shear ring end cover arrangements.
Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps

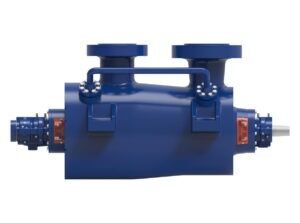

Balance line to ensure both seals remain at equal pressure

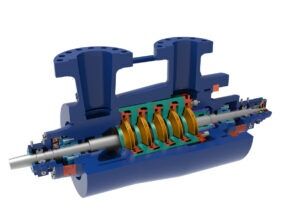

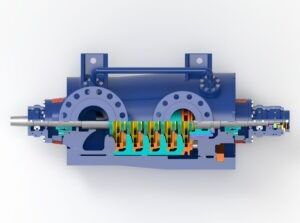

Inline impeller arrangement

Main Applications

Water Injection
Crude oil transmission
Boiler feed water

Options

All API material options:
S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
Bolted or shear ring end cover arrangements
Composite wear parts, for improved efficiency and rotor dynamics
Specialist Options: high speed over 6000 RPM
