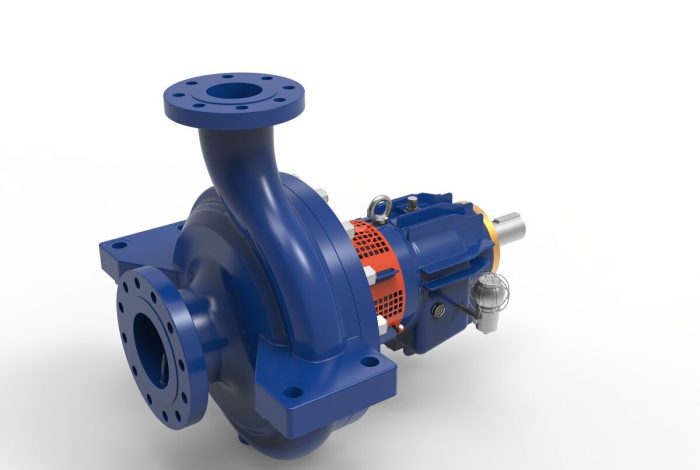

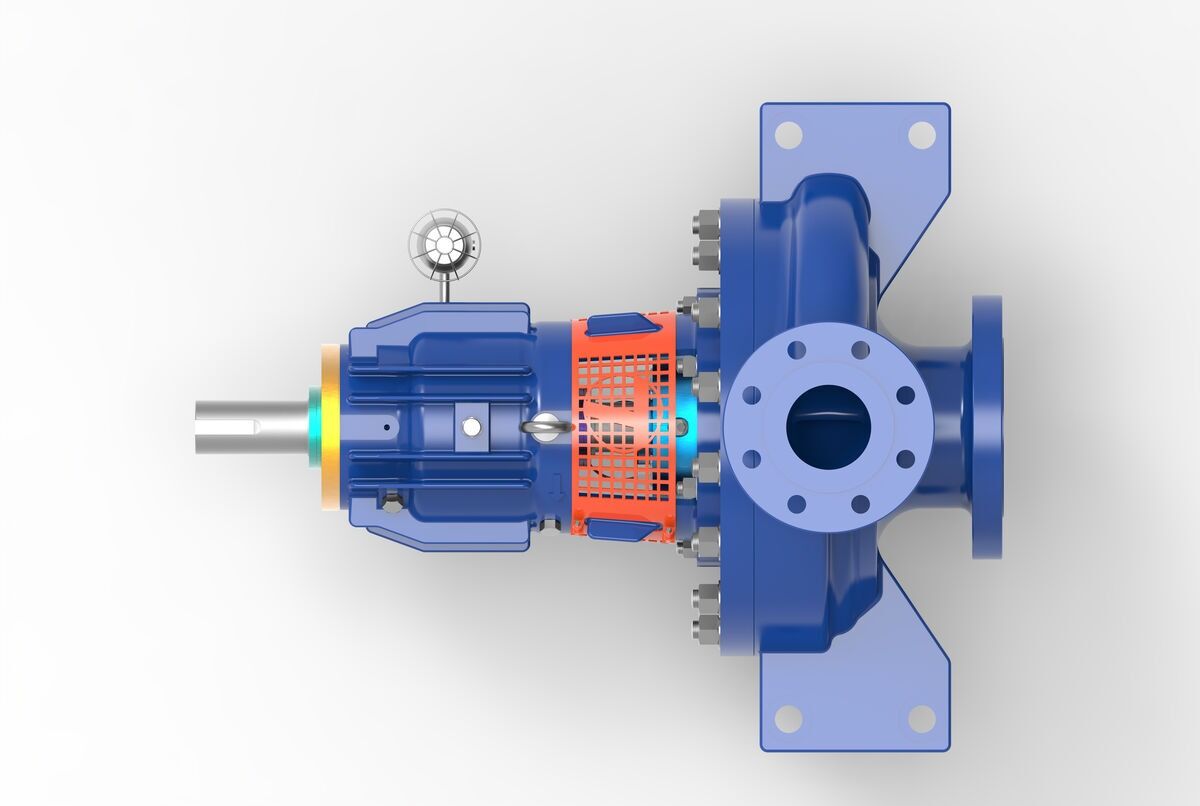

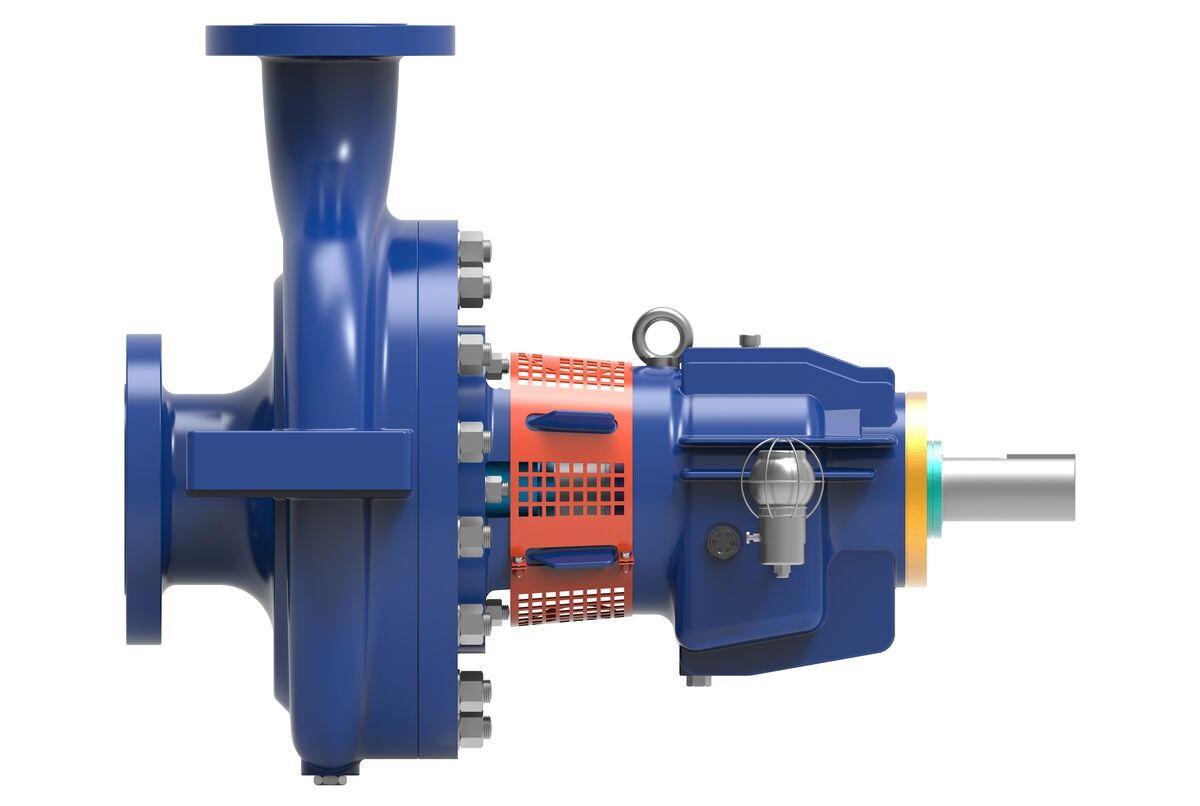

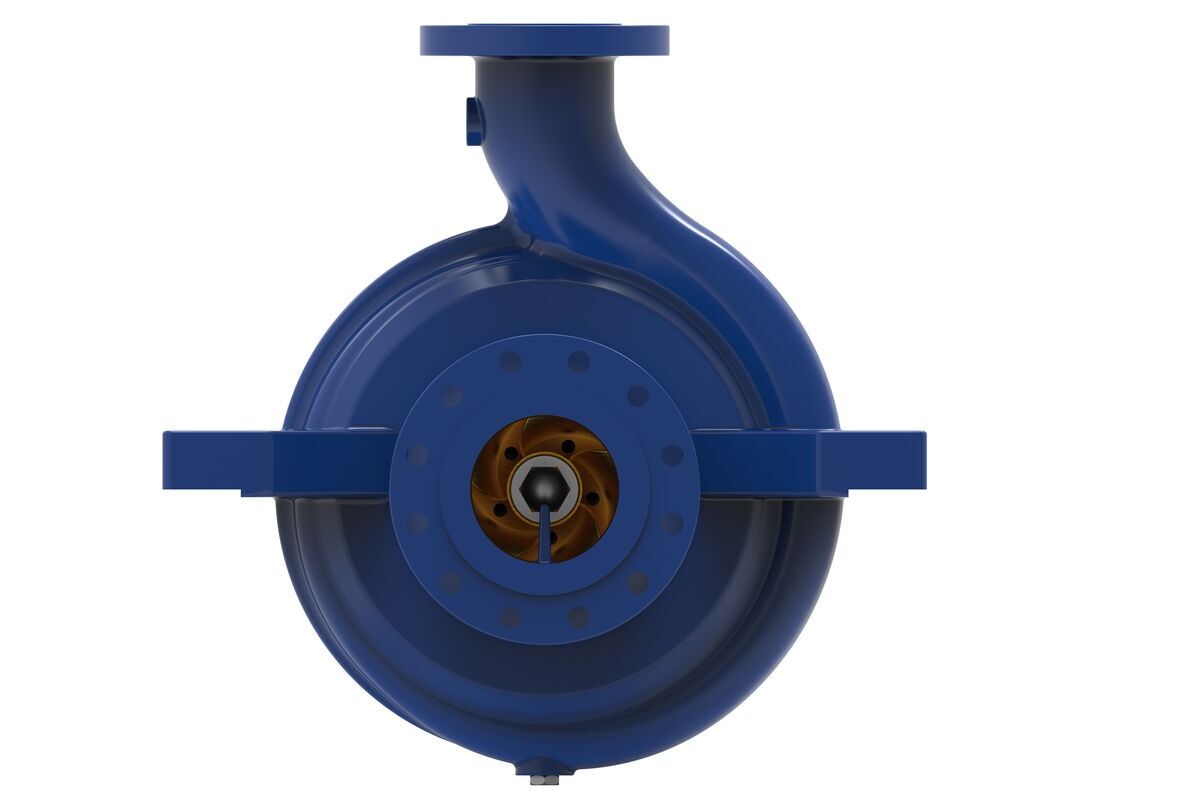

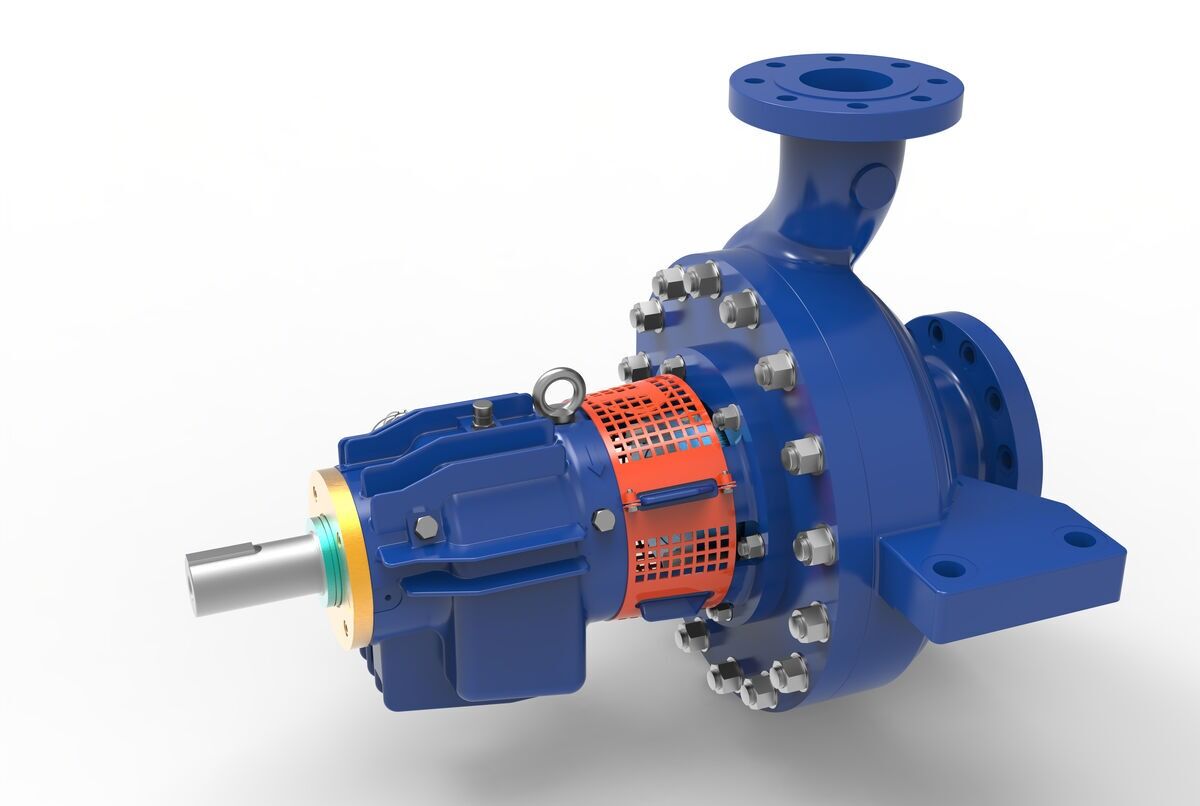

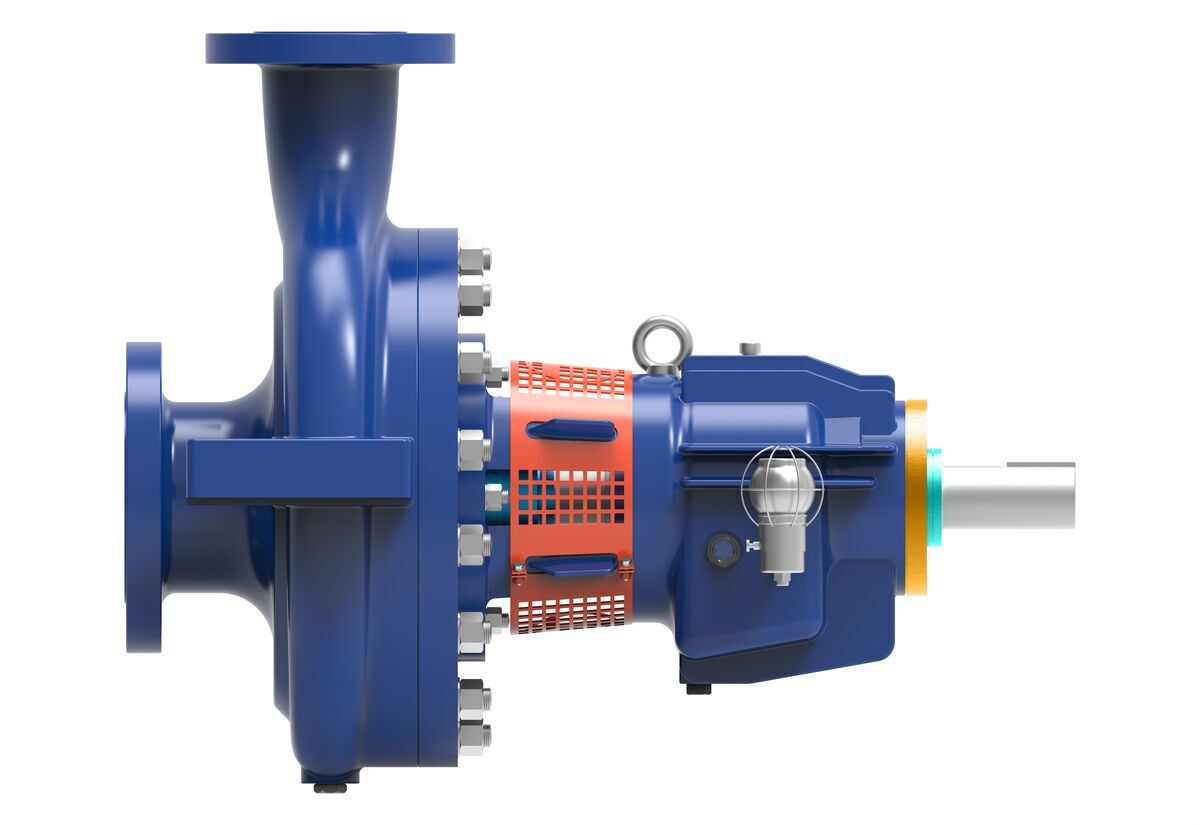

Trillium Flow Technologies’ updated R pump range combines the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands. Our expertise in designing and manufacturing OH2 pumps dates back to the 1960s, with thousands of units installed globally.

This API-compliant R pump range is engineered with a back pull-out design for ease of maintenance and maximum hydraulic flexibility; our OH2 pump excels across many applications.

Key Features

Fully API 610 compliant
Integral case connections to avoid non-destructive testing on larger frame sizes
Heavy-duty shaft to minimize rotor defection and maximize uptime
API 682 compliant seal chamber
Single Impeller with optimised hydraulics to minimise NPSH requirements
Heavy-duty case suitable for 2x API nozzle loads

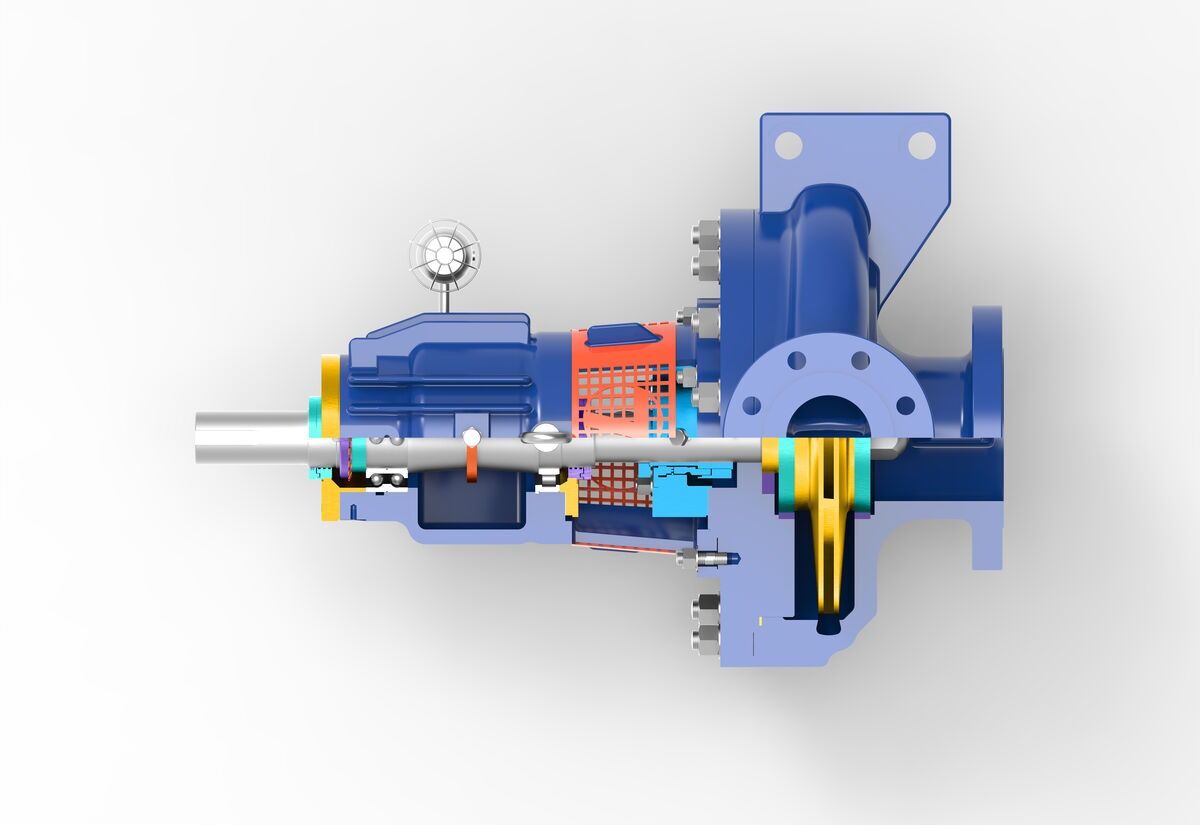

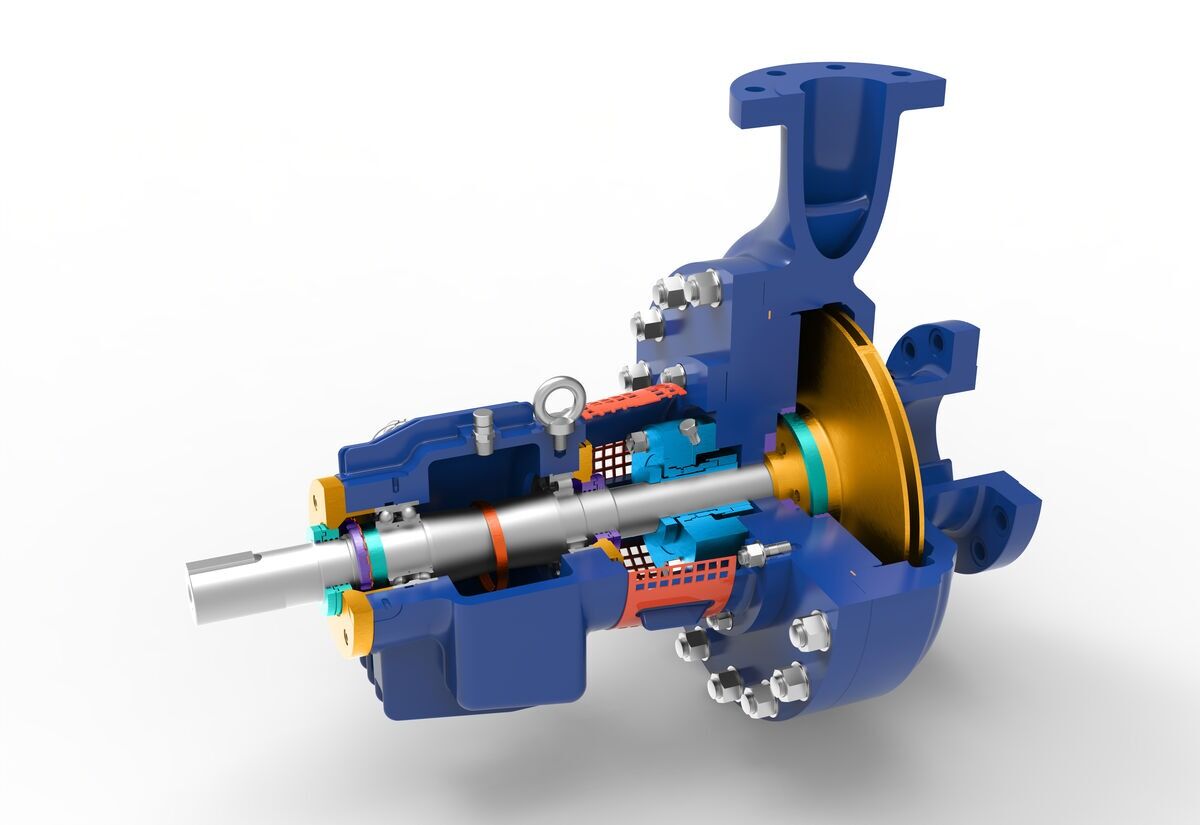

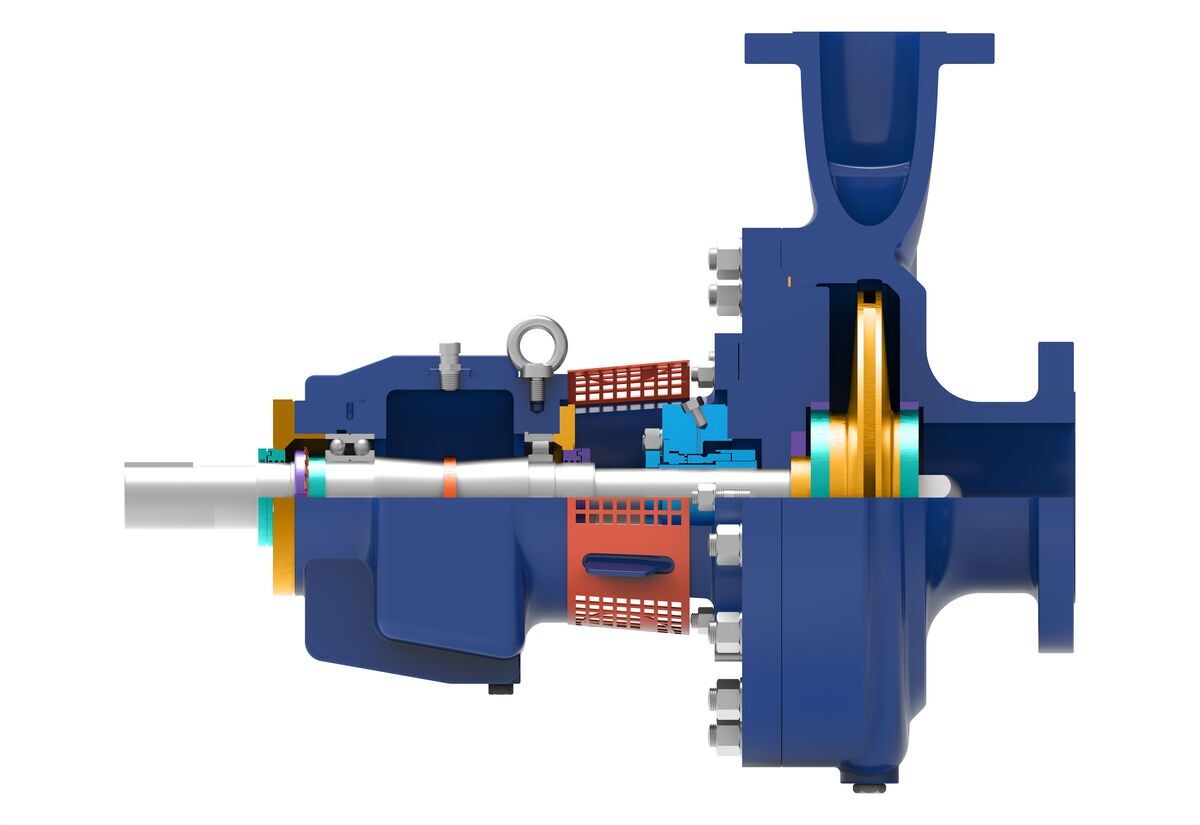

Back pull out design for simple maintenance
Back pull out design also allows quick hydraulic re-rates

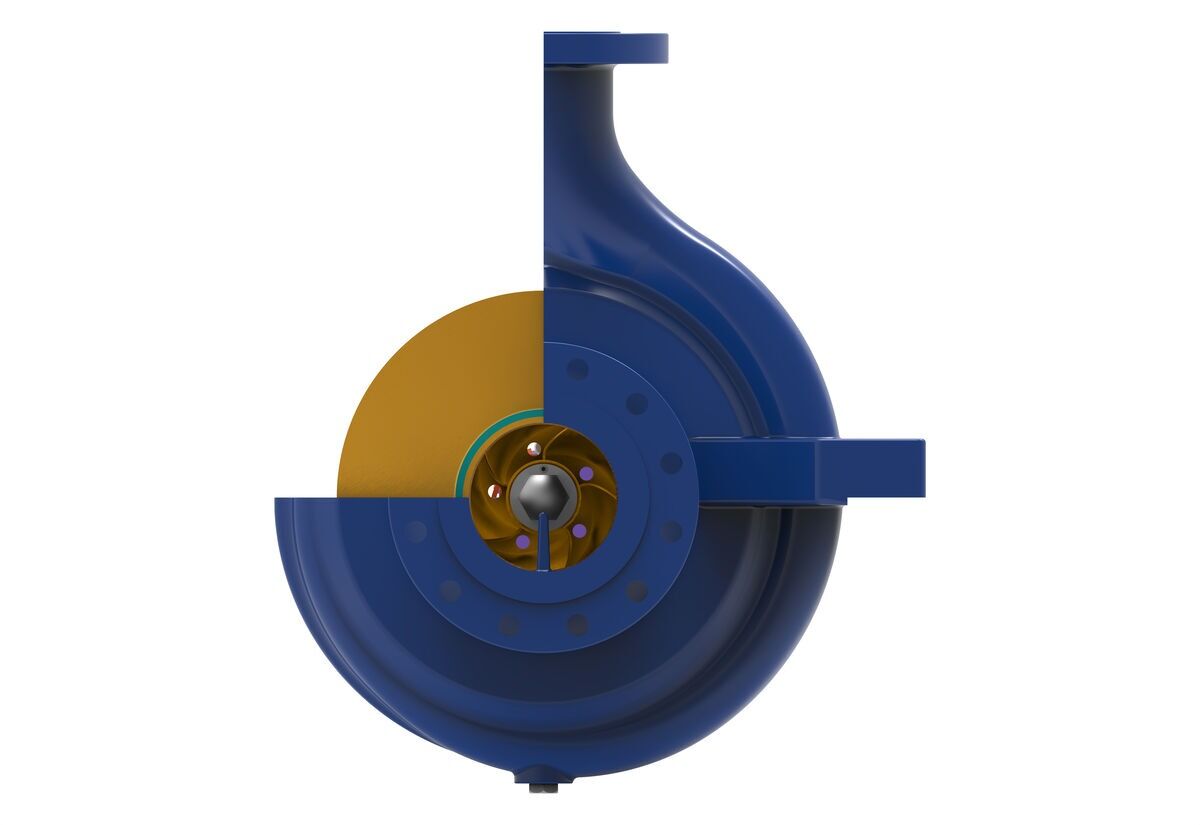

Double volute to minimise radial thrust on most sizes (over 2” discharge)

Options

All API material options:
S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
High temperature alignment options
Bearing arrangements to accommodate Oil mist, purge mist and various cooling configuration.
Magnetic coupling options also available
Specialist Options: Inducer, High Temperature Alignment

Main Applications

High Temperature Refining
Hydrocarbon Transfer
Petrochemical plants
Booster applications
