Goulds 3196 ANSI Standard Dimension Process Centrifugal Pump was first introduced in 1961, it immediately became the standard in the industry. Today, the number of installations attest to its remarkable performance. Users in chemical, petrochemical, pulp & paper, primary metals, food & beverage and general industries know they can make no better choice than the best – Goulds Model 3196.

This really is one of the most reliable pumps available on the market! And the 5 year warranty is standard on these pumps!

Find out more from the manufacturers product website here

Specifications

Capacities to 7000 GPM (1590 m 3 /h)
Heads to 730 feet (223 m)
Temperatures to 700° F (371° C)
Pressures to 375 PSIG (26 bar)

Design Features

Fully Open Impeller
Engineered Seal Chambers
- Patented Taperbore™ PLUS Seal Chamber
- BigBore™ Seal Chambers

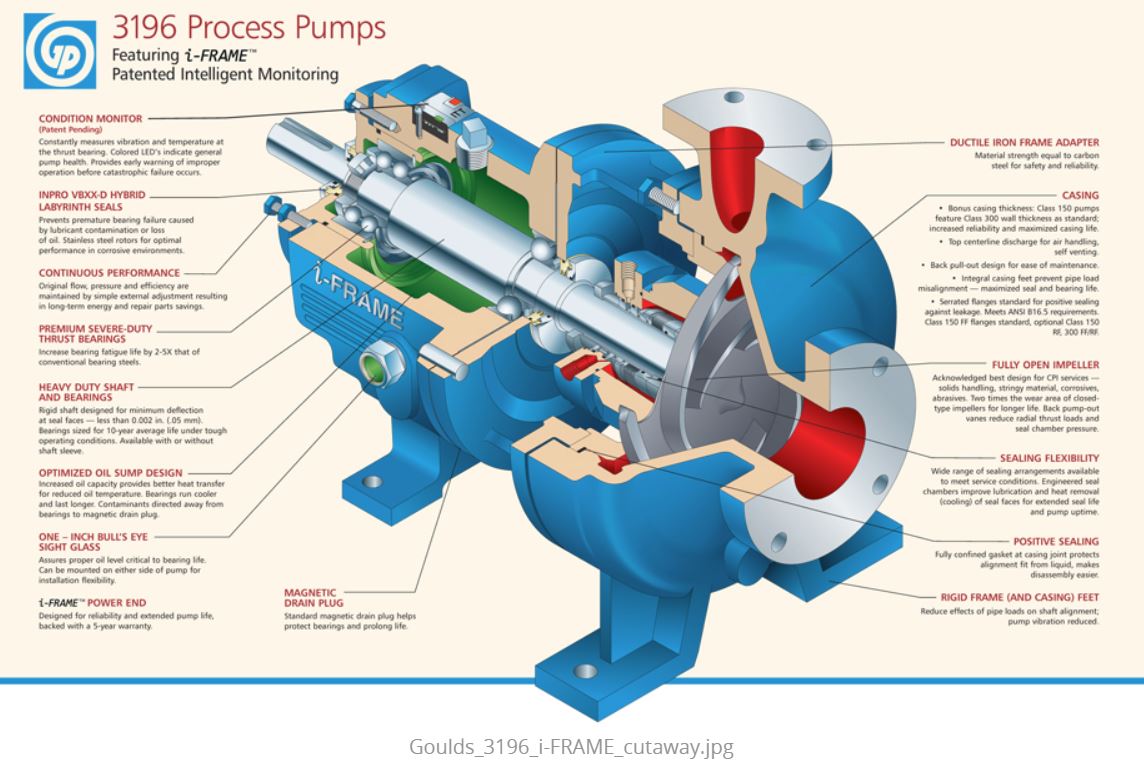

i-FRAME Power Ends
- Onboard Condition Monitoring
- Inpro VBXX-D Hybrid Bearing Isolators
- Optimized Sump Design
- Premium Severe Duty Thrust Bearings
- LTi Power End for High Load Applications
Engineered Pump Mounting Systems
Ease of Maintenance
- Back Pull-out Design
- External Impeller Adjustment
- Maximum Interchangeability
- Optional C-Face Motor Adapter
Optimum Hydraulic Performance
- Fully Open Impeller
- Full 50/60 Hz Coverage
- 29 Sizes
- Pump Selection Software
Safety
- Heavy Duty Casings
- Hydrostatic Testing of All Pressure Retaining Components
- ANSI B15.1 Coupling Guard
- Ductile Iron Frame Adapter
- Optional Shaft Guard

Baseplate Mounting Systems

Goulds offers a complete range of pump mounting systems to meet plant requirements; making installation and maintenance easier.

Seal Flush Plans

All ANSI B73.1 seal flush and cooling plans are available to control emission levels, and meet seal installation requirements. Goulds can also provide other special arrangments of user preference.

High and Low Temperature Capability

Options are readily available for high and low temperature applications or where pumpage temperature must be controlled.

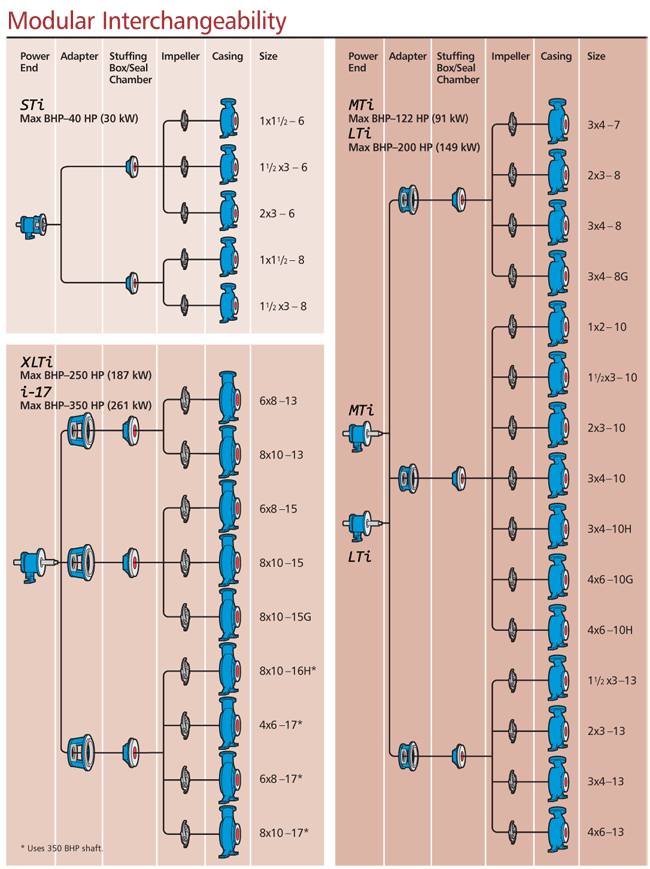

Bonus Interchangeability

i-FRAME Power Ends Fit 7 Different Process Pumps

Other Features for Safety Reliability

Adapters, Casings, and Guards Available

New 5 Year ANSI Pump Warranty

We are so confident that the i-FRAME is the most reliable Power End in the industry, that we are proud to offer a standard 5-year warranty on every i-FRAME ANSI Process Pump.
