Graco Husky AOD pumps

Home » Shop » Graco Husky AOD pumps

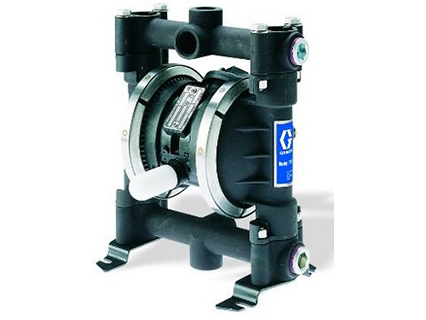

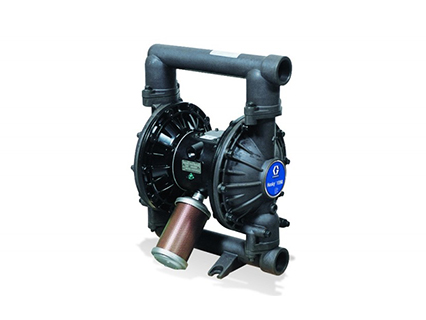

Graco Husky AOD pumps

Graco
  • Air Operated Diaphram (AOD) Pumps
  • Asphalt & Emulsions
  • Chemical Transfer
  • Dosing
  • Fuel
  • Mine Dewatering / Groundwater
  • Oil & Gas
  • Pulp & Paper
  • Sanitory / Food & Beverage
  • Waste Oil & Mud
  • Water
PRODUCT VIDEO

General

Graco / Husky air operated diaphragm (AOD) pumps are a recognized brand throughout the pumping world. With a large range of diaphragm pumps all with excellent reliability.

Graco / Husky AOD pumps are available in sizes starting from ¼” and range up to 3″ units. These pumps are generally used in the transfer of chemicals, drainage applications, and food product transfer. Graco AOD pumps can be dry-run indefinitely without suffering any damage. As with most diaphragm pumps, self priming is also not an issue, with up to 7 meters suction lift available on some models.

What makes these pumps popular is their versatility, with a wide combination of body materials and elastomers available, there are few combinations that cannot be supplied that will suit even aggressive chemicals. Body materials include; polypropylene, PVDF, 316 Stainless Steel, aluminium, and cast iron. The ability to handle both thin and viscous liquids, even with suspended solids is also an advantage that many customers find useful.

Graco / Husky AOD pumps have a new patented non stalling air valve system which gives the pumps excellent air efficiency and reliability over it’s competitors.

A large range of the pumps are kept in stock so please contact us for availability.

Additional Information

  • 1050 Curve
  • 1050 O&M Manual
  • 1050 Manual
  • 1590 Plastic Manual
  • 1590 Plastic Curve
  • 1590 Steel Manua
  • 2150 Plastic Manual
  • 2150 Steel Manual
  • 2200 Plastic Manual
  • 3275 Manual
  • 3300 Manual
  • 205 Manual
  • 307 Plastic Manual
  • 715 Manual
  • 515 & 716 Manual
  • 1040 Plastic Manual
  • 1040 Steel Manual

Specifications

GRACO / HUSKY AIR OPERATED DIAPHRAGM PUMPS
Sizes: 1/4 to 3 inch
Flow Rates: Up to 300 gpm (68m3/hr)
Pressure: Up to 120 PSI (820 kPa)
Materials Teflon, Polypropylene, Aluminium, Stainless steel & more
Suction: Excellent suction lift ability!!
Solids: Suitable – depends on size and percent
Viscosity: Can handle viscus liquids (liquid must flow freely)
Models Available
Size Model Max Flow Materials Available Link to more info
1/4 inch Husky 205 5 gpm (19 l/min) Poly Husky 205
3/ inch Husky 307 7 gpm (26.5 l/min) Poly Husky 307
1/2 inch Husky 515 15 gpm (57 l/min) Poly Husky 515
3/4 inch Husky 716 16 gpm (60 l/min) Aluminium Husky 716
1 inch Husky 1050 50 gpm (180 l/min) Poly/Aluminium/SS Husky 1050
1 1/2 inch Husky 1590 90 gpm (340 l/min) Poly/Aluminium/SS Husky 1590
1 1/2 inch Husky 15120 120 gpm (454 l/min) Poly Husky 15120
2 inch Husky 2150 150 gpm (567 l/min) Poly/Alum/SS/Ductile Iron Husky 2150
2 inch Husky 2150 LP 150 gpm (567 l/min) Alum Husky 2150 LP
2 inch full poly Husky 2200 200 gpm (757 l/min) Full Poly/ Teflon Husky 2200
3 inch Husky 3300 300 gpm (1135 l/min) Poly/Alum/SS Husky 3300

For more information including installation and operation manuals please click on the above “link to more info” link.

Or click here for all the Graco models available

Features



  • Use the Online Husky Selector Tool to choose a pump for your application. (Only available for 1 and 3 inch)
  • Up to 30% more efficient than other competitors!!
  • Up to 20% increase in fluid flow compared to competitors models!
  • Up to 5 times longer diaphragm life compared to other double diaphragm pumps in its class!
  • Expanded material offering to handle endless applications!
  • Excellent suction lift ability!
