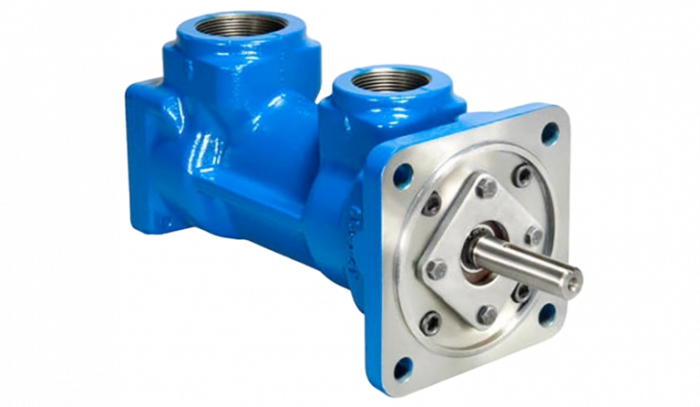

IMO 3 Screw Pumps – 3E Series

MFG in Columbia, KY USA

Series 3E pumps are provided for differential pressures to 150 PSIG (10 Bar) and flow rates to 100 GPM (375 L/M). Mountings include foot or flange. Casing materials are either cast iron or steel.

These three screw pumps are used for fuel oil transfer and burner services, machinery lubrication and other industrial pumping applications. Units without shaft seals can operate at very high speeds on lubrication services when drive by the machine being lubricated. 3E series pumps are also available in canned motor/pump configurations up to 6 HP (4.5 kW).

PRODUCTS

Triple Screw Pumps

INDUSTRIES

General

THREE-SCREW PUMPS

The Superior Pumping Technology

Triple Screw Pump (3 Screw) Discover our three-screw pumps – the clear choice for superior performance and versatility. The unique design with three interlocking spindles provides an extremely efficient and smooth flow, resulting in impressive overall efficiency.

In addition to excellent controllability, the self-priming pumps offer minimal pulsation and remarkably quiet operation, even at high discharge pressures.

Our three-screw pumps are true all-rounders, capable of handling a wide range of fluids of varying viscosities – from low-viscosity fluids to highly viscous substances. It’s robust design and the high wear resistance of the spindles ensure reliability and long life, making them the ideal choice for critical applications in a variety of industries.

KEY BENEFITS

IMO 3E Series offers:

Designed for high-pressure lubrication
Available in sixteen displacements across six frame sizes
Delivers quiet, energy-efficient operation and the highest “Total Savings of Ownership”
Suitable for rotating machinery and equipment where forced oil flow is required
High Reliability & long Service life
Lowest Total Cost of Ownership
High Efficiency
Lowest Maintenance Cost
Ease of Installation & Commissioning
Smooth Operation

Specifications

GENERAL INFORMATION AND PERFORMANCE DATA

IMO Three-Screw 3E Series

Series 3E pumps are provided for differential pressures to 150 PSIG (10 Bar) and flow rates to 100 GPM (375 L/M). Mountings include foot or flange. Casing materials are either cast iron or steel. These three screw pumps are used for fuel oil transfer and burner services, machinery lubrication and other industrial pumping applications. Units without shaft seals can operate at very high speeds on lubrication services when drive by the machine being lubricated. 3E series pumps are also available in canned motor/pump configurations up to 6 HP (4.5 kW).

This 3E series is available in:
Nominal flow rate, GPM/LPM, at 150 PSI (10 BAR), 200 SSU (43 CST)
SPEED RPM

3E Series Size	3500	2900	1750	1450	1150	960
87P	6/22	5/17	2/8	1.5/6	–	–
87	8/29	6/23	3/12	2/9	1.5/6	1/4
95	10/37	8/30	4/15	3/12	2/8	1.5/5
118P	15/58	12/47	6/24	5/18	3/12	2/9
118	20/75	16/61	9/33	7/25	5/18	4/13
143J	27/102	22/82	12/45	9/35	7/25	5/19
143	36/137	29/111	16/61	13/48	9/35	7/27
162	53/200	43/163	24/91	19/72	14/53	11/41
187Y	59/224	48/182	27/101	21/80	16/60	12/46
187M	71/270	58/219	32/122	26/97	19/71	15/55
187	82/312	67/254	38/143	30/114	23/85	18/67
200	100/380	82/310	46/176	37/141	28/105	22/83

Maximum Speed – Do not exceed 1800 RPM pumping residual fuels, crude oil due to the presence of abrasives and contaminants:

Maximum RPM*

Size:	87-95	118P	118	143J	143	162	187Y	187M	187	200
Types B & H	5000	4000	4000	4000	4000	4000	4000	4000	4000	3800
Type N	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
Type I	8000	8000	6500	7000	5500	4800	4800	4500	4250	4000

General Information

Construction features

Iron or steel case, Dry installation, Horizontal or vertical installation, Self priming, Mechanical shaft seal or sealless

Other data

Design standard: Manufacturer STD
Fluids: Fuel Oils, Lubrication Oils
Sealing: Single Mechanical seal

Performance data

Capacity up to: 100gpm

Pressure up to: 150psiD

Viscosity range: 32 to 3500ssu

Speed up to: 4400 rpm

Flow rate

Max gpm: 100.00

Max lpm: 378.54

Max m³/hr: 22.71

Max diff pressure

Max bar (dp): 10.34

Max psi (dp): 150.00

Viscosity

Max cSt [mm²/s]: 5397.50

Max SSU: 25000.00

Min cSt [mm²/s]: 2.10

Min SSU: 33.00

Temp

Max C°: 121.00

Max F°: 250.00

Min C°: -18.00

Min Fº: 0.00

IMO 3 Screw Pumps – 3E Series
