IMO AB 3 Screw – Low Pressure Pumps (LPD, ACD, ACE, LPE, ACG, ACF, LPQ)

  • Extremely reliable
  • Low Maintenance
  • Low Noise
  • Must be lubricating products
  • Compact
  • Integrated pressure relief valve
  • Magdrive (Opti line / Opti lobe)  Magnetic drive options

Product Application: , ,

Product Make:

Product Type:

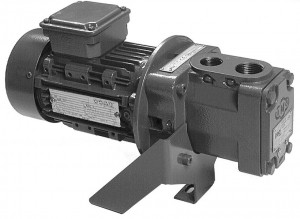

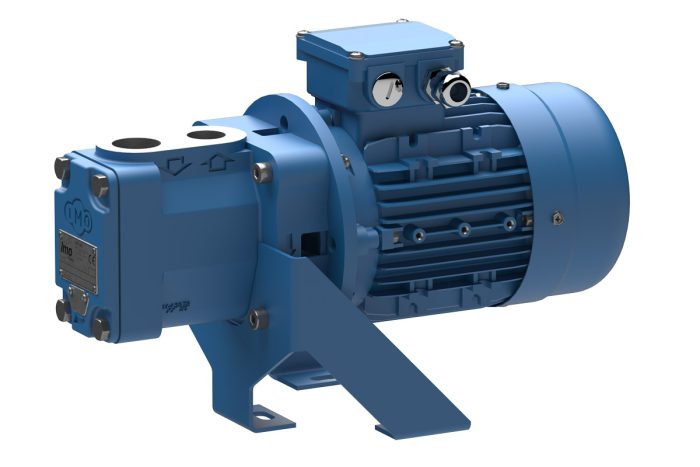

LPD:

Performance: 2 – 20L/min. Max 10 Bar

The LPD pumps are used for a number of different fluids: Lubrication oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

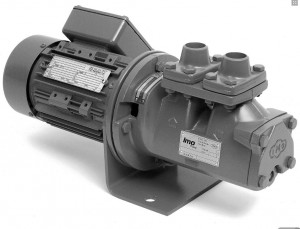

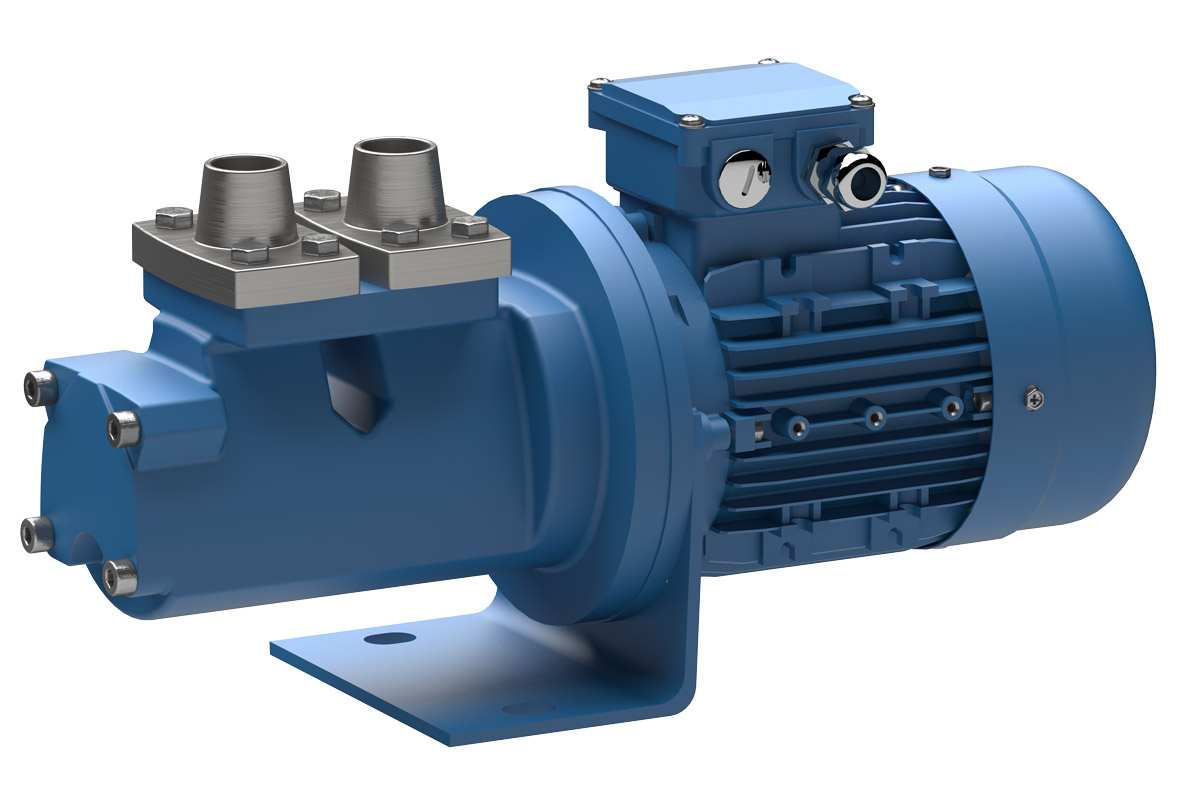

ACD:

Performance: 10-42L/min. Max 7 Bar

The ACD pumps come in two executions; Lube Line and Fuel Line. The main difference is the shaft seal design; V-seal – optimized for light duty and T-seal – heavy duty respectively. The ACD pump is used for a number of different fluids: Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties. If requested, the ACD pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, KR or RMR.



For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

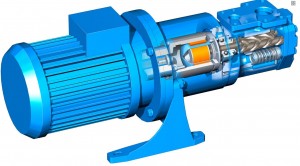

Opti Line / Optilobe ACE (Magnetic Drive Version):

Performance: 8-175L/min. Max 16 Bar

The ACE OptiLine pump is used for a number of different fluids: Fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties. If requested, the ACE pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

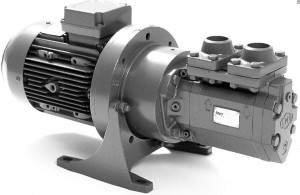

ACE:

Performance: 10-180L/min. Max 16 Bar.

The Std Line (standard) ACE pump comes in two executions; Lube Line and Fuel Line. The main difference is the shaft seal design; (V-Seal) – optimized for light duty and (T-Seal) – heavy duty respectively. The ACE pump is used for a number of different fluids: Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties. If requested, the ACE pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

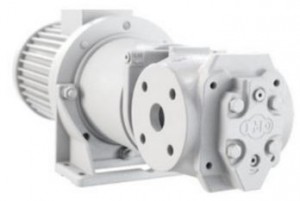

Opti Line / Optilobe LPE (Magnetic Drive Version):

Performance: 8-175L/min.  Max 16 Bar.

The LPE OptiLine pump is used for a number of different fluids: Fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

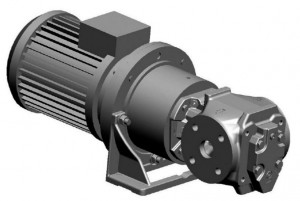

LPE:

Performance: 10-180L/min. Max 16 Bar.

The Std Line (standard) LPE pump comes in two executions; Lube Line and Fuel Line. The main difference is the shaft seal design; (V-Seal) – optimized for light duty and (T-Seal) – heavy duty respectively. The LPE pump is used for a number of different fluids: Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

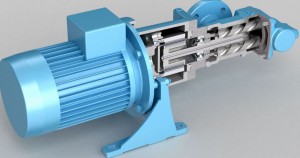

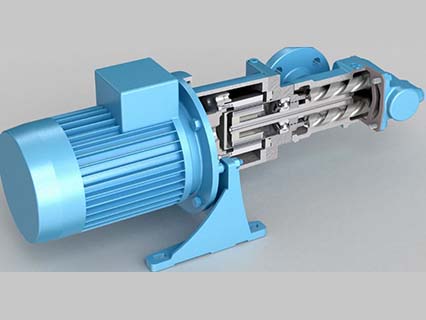

Opti Line / Optilobe ACG (Magnetic Drive Version):

Performance: 75-1180L/min. Max 16 Bar.

The ACG OptiLine pump is used for a number of different fluids: Fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties. If requested, the ACE pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

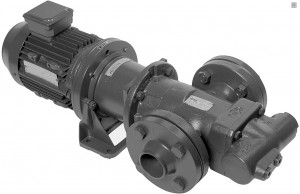

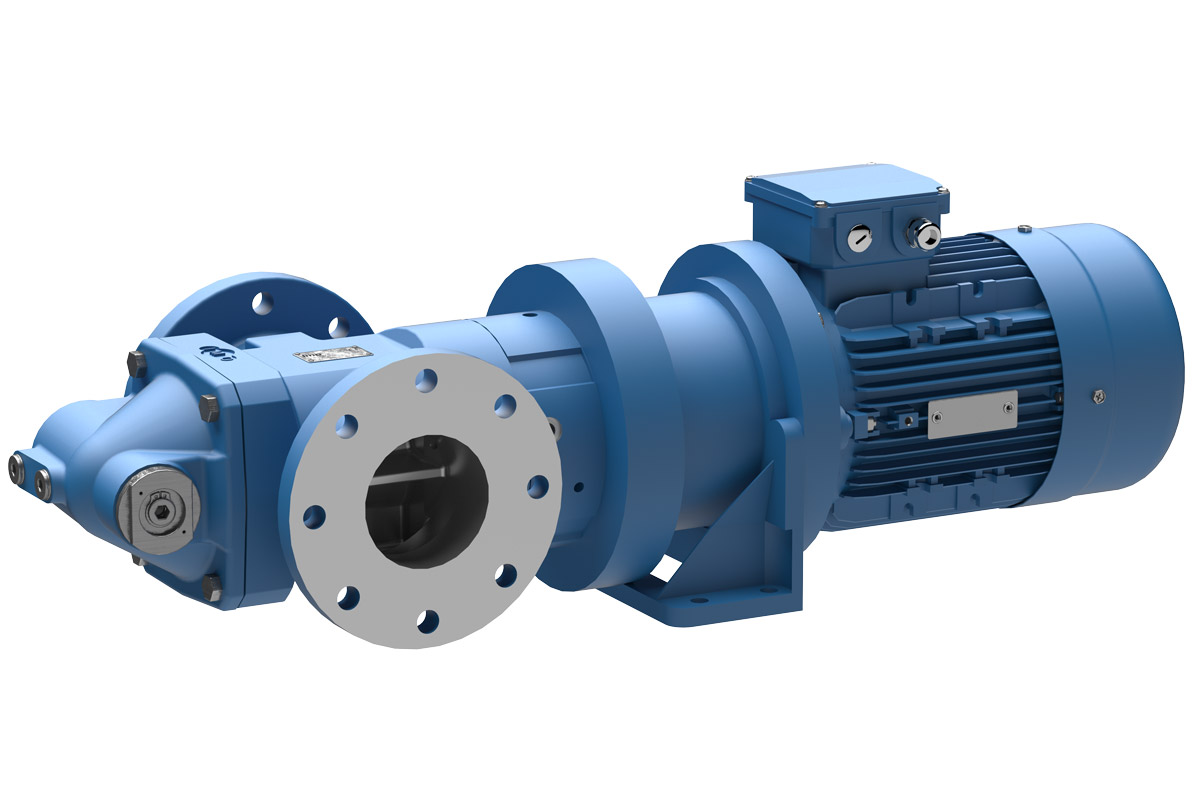

ACG:

Performance: 80- 1200L/min. Max 16 Bar.

The Std Line (standard) ACG pumps come in two executions; Lube Line and Fuel Line. The main difference is the shaft seal design, optimized for light duty and heavy duty respectively. The ACG pumps are used for a number of different fluids: Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties. If requested, the ACG pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

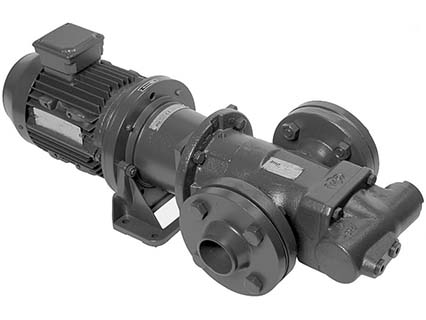

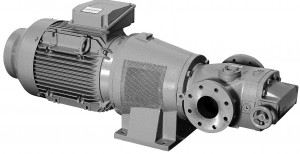

ACF:

Performance: 310-2900L/min.  Max 16 Bar.

The ACF/UCF pumps are used for a number of different fluids: Lubrication oil, fuel oil, vegetable oil, hydraulic oil and any non-aggressive fluid with sufficient lubricating properties. If requested, the ACF/UCF pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS. Accuracy of performance according to VDMA 28284 group 2.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php

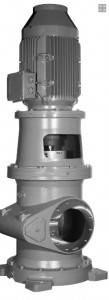

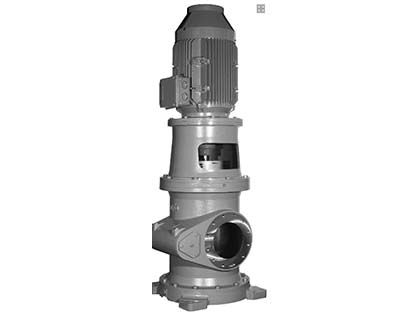

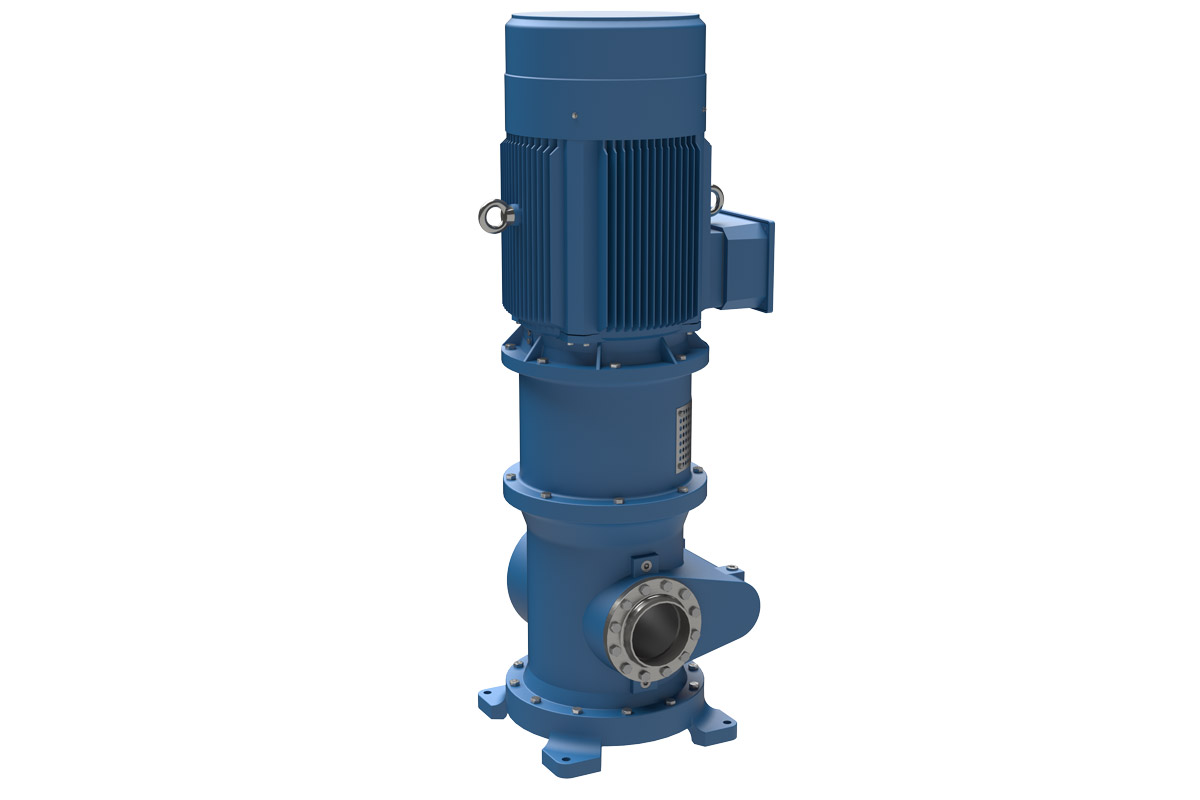

LPQ:

Performance: 1450-8100L/min.  Max 16 Bar.

The LPQ pumps are used for a number of different fluids: Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, glycol, polymers, emulsions and any non-aggressive fluid with sufficient lubricating properties. If requested, the LPQ pump may be certified according to any of following classification societies: DNV, BV, LRS, ABS, RS, GL, RINA, KR, NK, RMR or CCS.

For more information please go to the manufacturers website: http://www.imo.se/low-pressure-pumps.php


ModelFlow Rate Range (L/min)Max Pressure (Bar)
LPD2-20 L/min10
ACD10 -42 L/min7
Opti Line ACE (Magdrive)8-175 L/min16
ACE10-180 L/min16
Opti Line LPE (Magdrive)8-175 L/min16
LPE10-180 L/min16
Opti line ACG (Magdrive)75-1180 L/min16
ACG80-1200 L/min16
ACF310 – 2900 L/min16
LPQ1450 – 8100 L/min16
  • Extremely reliable
  • High Efflicency
  • Low Maintenance
  • Low Noise
  • Must be lubricating products
  • Compact
  • Integrated pressure relief valve
  • DNV and many certificates available
