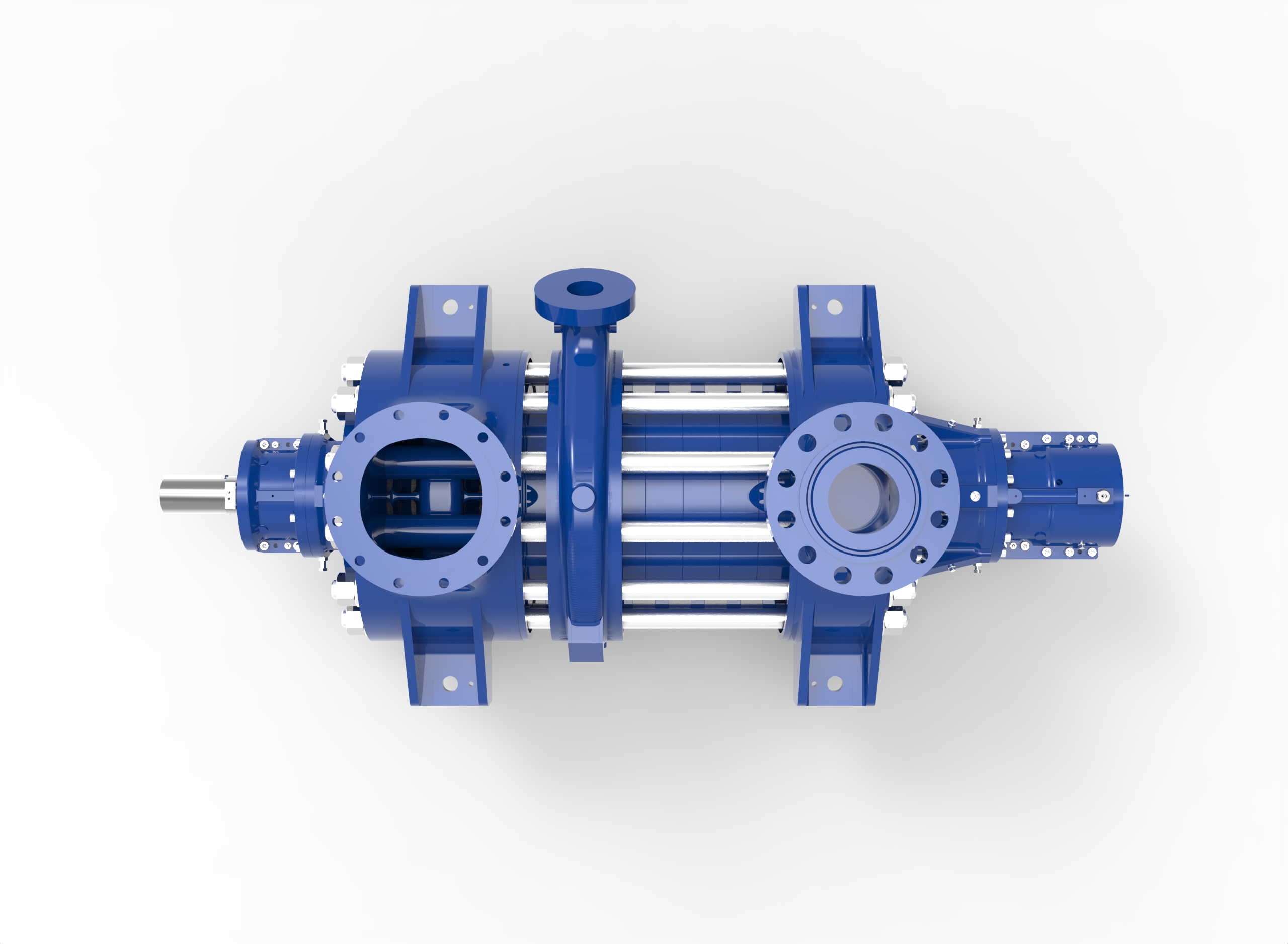

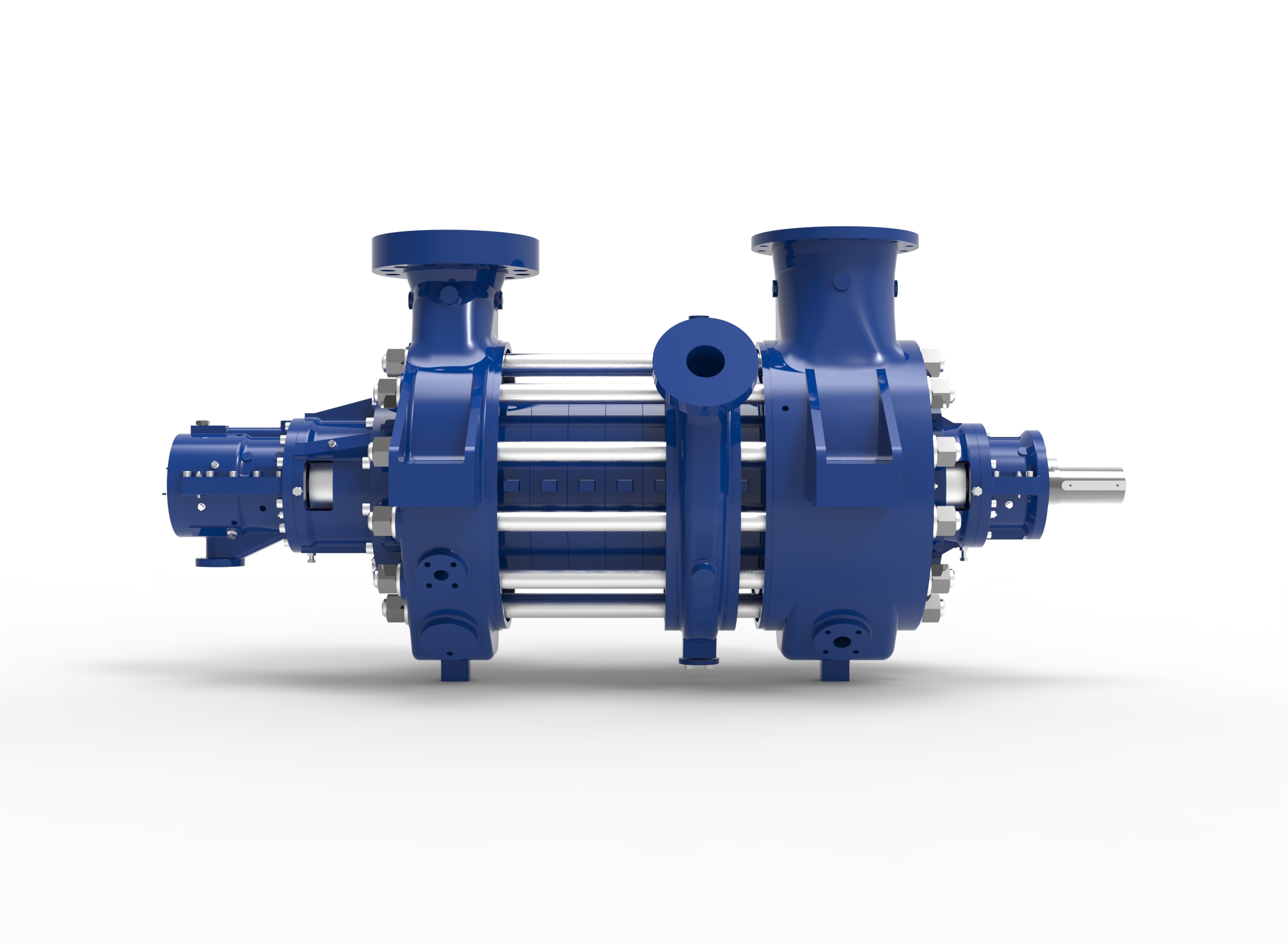

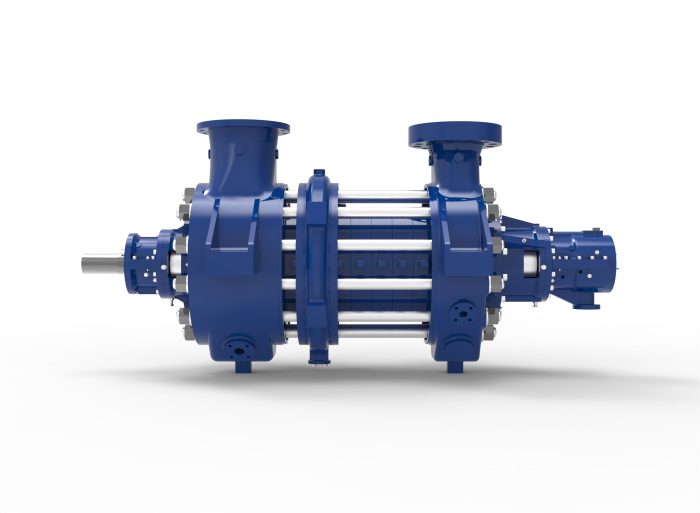

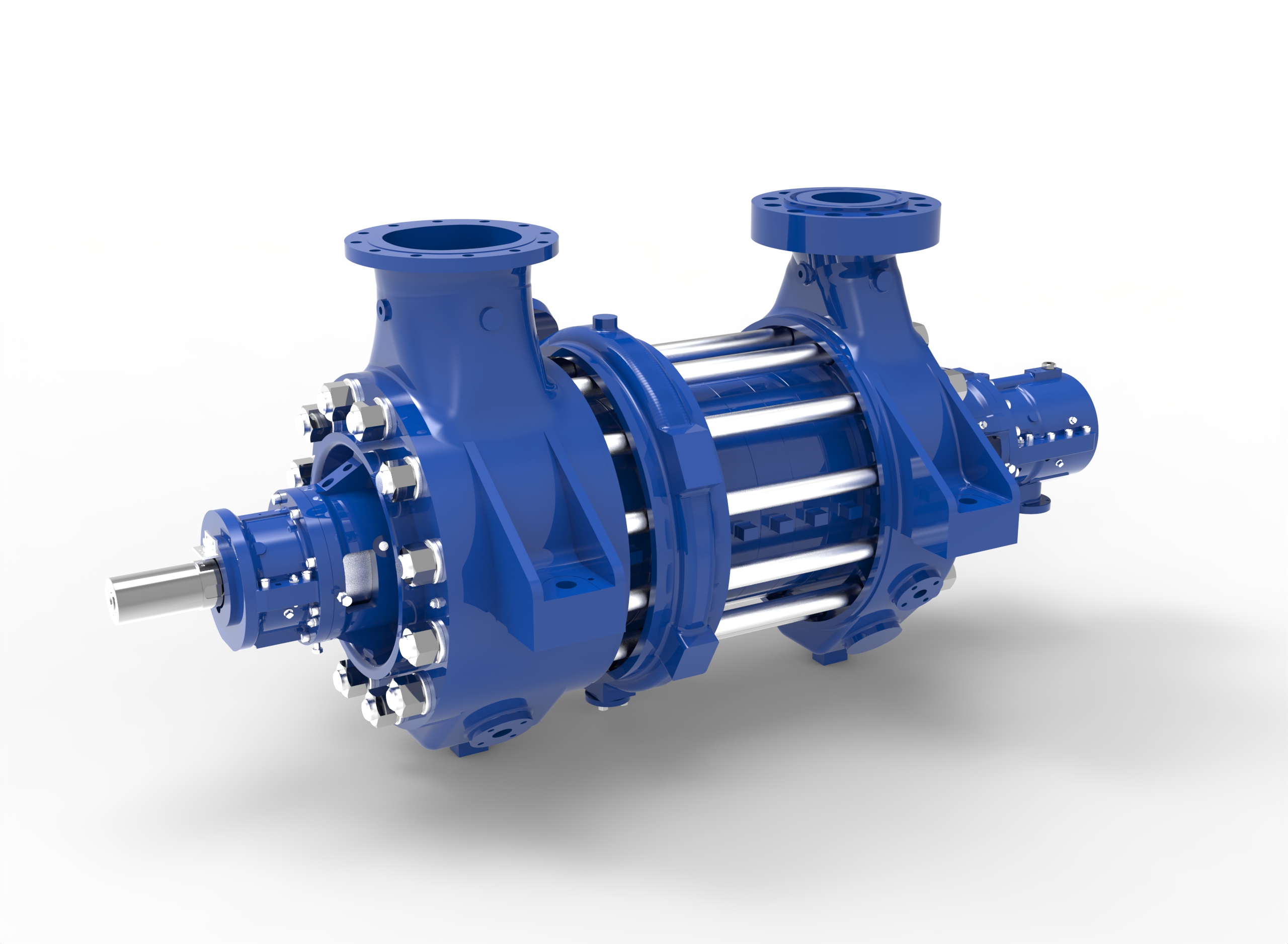

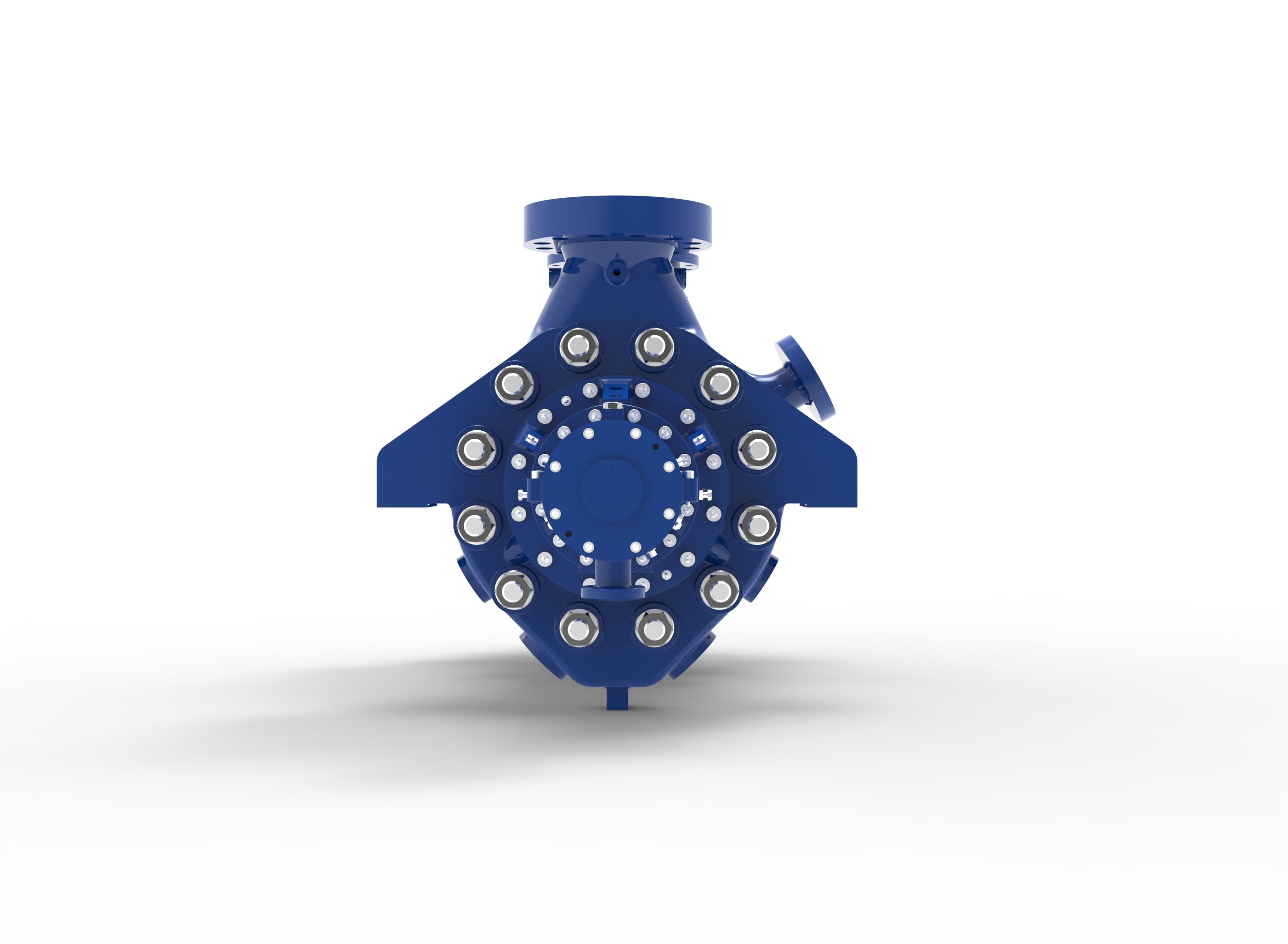

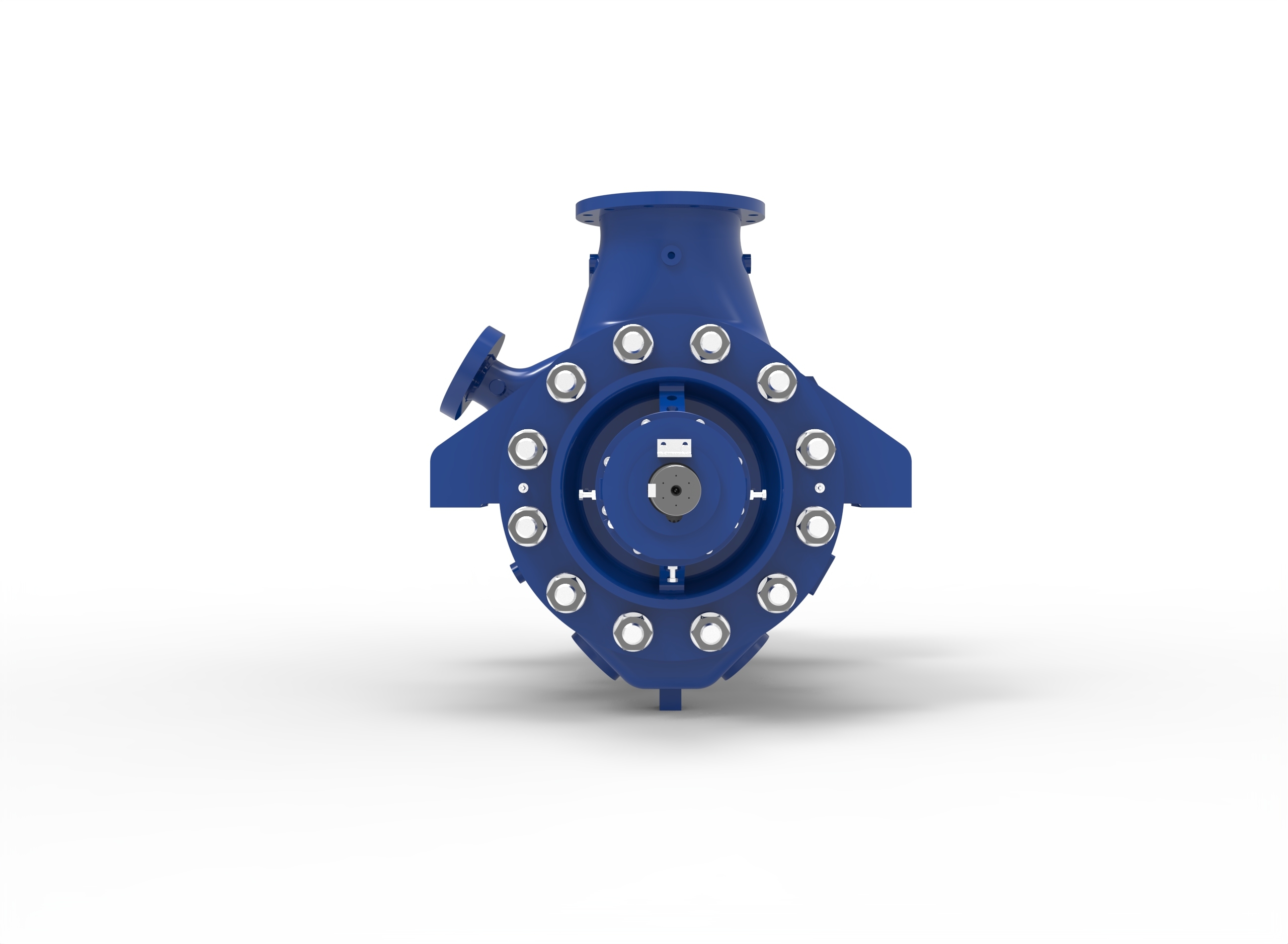

Trillium Flow Technologies updated MES pump range builds on the engineering excellence, innovation, and heritage of our Termomeccanica Pompe brand. Our expertise in designing and manufacturing BB4 pumps dates back to the 1970s, with hundreds of units installed worldwide. This API-compliant BB4 pump range is a radially split, multi-stage, between-bearings, centerline-mounted pump with either a single or double suction first stage impeller for reduced NPSHr. These are often known as tie bolt, or segmental pumps.

Key Features

API 610 compliant
Integral case connections to avoid non-destructive testing
Heavy-duty shaft to minimize rotor defection and maximize uptime
API 682 compliant seal chamber
Single or Double suction Impeller
Compact ring section design
Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps
Balance line to ensure both seals remain at equal pressure
Interstage take off options to support bespoke applications
Tie bolt design to reduce cost and to accommodate thermal shock

MAIN APPLICATIONS

Boiler feed water for traditional power plants
Water transmission pipelines & water distribution
Condensate extraction
High pressure auxiliary services in general industry, petrochemical & RO desalination plants

OPTIONS

All API material options:
S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
High efficiency options for RO and power markets
Composite wear parts, for improved efficiency and rotor dynamics
Specialist Options: high speed over 6500 RPM, Interstage Take off Options
