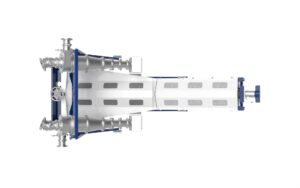

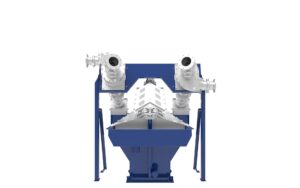

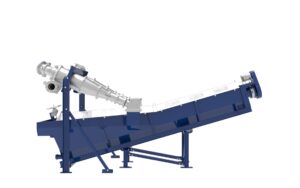

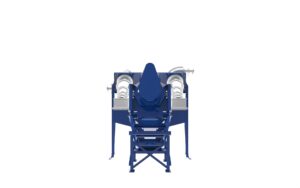

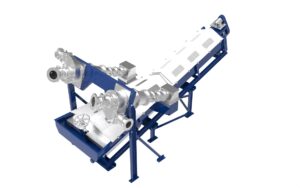

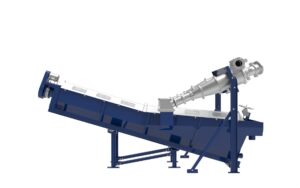

The WEMCO® Hydrogritter is an exceptional grit cyclone and classifier with an enduring operational life of over 25 years.

The WEMCO® Hydrogritter® components are designed as a system to optimize each piece of equipment to consistently produce long-term, high performance grit removal with unmatched reliability, and low operation and maintenance costs. The WEMCO® Hydrogritter system removes and dewaters grit from primary sludge or influent.

KEY FEATURES & BENEFITS

Protects downstream equipment from grit damage
Downtime and grit removal expense minimized
Proven ability to remove fine (150+ mesh) grit
Production life of 25+ years
One to four cyclones per classifier

CYCLONE CAPACITY FLOW

220 to 1,570 gpm (50 to 357 m³/h)

CYCLONE PRESSURE

5 to 20 psi (.3 to 1.37 bar)

APPLICATIONS

Grit removal

SIZE RANGE

Hydrogritter: 12, 18, 24, & 30 inch
Hydrogritter II: 12 inch

TEMPERATURE RANGE

32ºF (0°C) – 122ºF (50°C)

MATERIALS

Steel
Stainless steel
Galvanized
