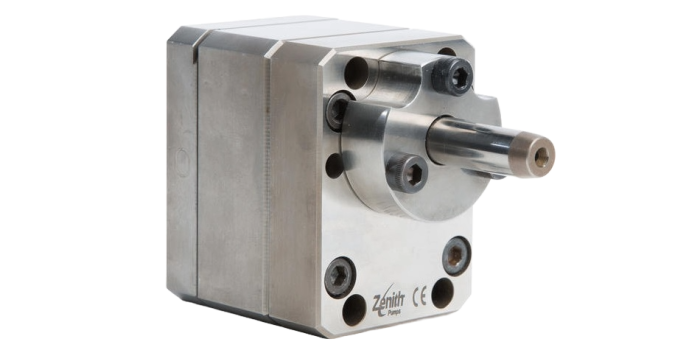

Zenith Gear Pumps – Flushable Paint Series

Featuring fast, effective, in-process flushing for the challenges of frequent color change or flow stagnation

MFG in Monroe, NC USA

The Flushable Paint pumps from Zenith, offer precision with unique flushing features that offer quick, effective, in-process flushing for applications requiring frequent color changes or where flow stagnation is a concern. Flushable paints pumps are ideal for solvent and water-borne paints, liquid colorants, clear-coats, dyes, catalysts and monomers (prepolymers).

APPLICATIONS: Zenith Pumps for Paints and Coatings are designed to provide stable, precise, repeatable flow control of coating fluids, despite variations in temperature, viscosity, and pressure. Zenith Pumps for Paints and Coatings are broadly applied to services such as resins, catalysts, colorings, binders, adhesives, coatings, inhibitors, solvent and water-based paints, clear-coats, varnishes and dyes. Zenith Pumps for Paints and Coatings offer quick, effective, in-process flushing for applications requiring frequent color changes or where flow stagnation is a concern.

KEY FEATURES OF

ZENITH Flushable Paint Pump Series

PRODUCTS

INDUSTRIES

General

PRECISION GEAR PUMPS

Product Performance You Can Rely On

Drawing of a gear pump operation. Precision gear pumps are an integral part of many manufacturing processes requiring metering, mixing, dispensing, coating, and extruding, where accuracy and uniformity of flow are critical. That’s why manufacturers in industries from manmade fibers and polymers to food and medical devices have relied on Zenith gear pumps since 1926. With high metering accuracy, pulse-free flow, and long wear life across a wide range of fluid and pressure conditions, the Zenith Pumps brand is synonymous with high performance and reliability.

In addition to standard product offerings, Zenith can provide custom-engineered pumps for demanding services, such as submersible, flushable, and sanitary applications. Backed by the resources of CIRCOR Engineered Systems group, Zenith Pumps can provide a complete custom-engineered system along with the pump, from the tank to the controls, letting you focus on your core competency while we develop a fluid handling, mixing, or metering system aimed at providing the highest precision and reliability possible.

KEY BENEFITS

ZENITH Flushable Paint Pump Series Offers

Flushable – change colors in seconds – Chameleon design features allow quick and effective flushing, in-line, resulting in rapid changeover of paint colors and types.
Leak Free – triple lip-seal design provides redundant sealing and leak-free performance without the mainte- nance issues of packings or the complication of face seals.
Long Life – components made from high-carbide steels, through hardened for wear resistance and strength.
Pulseless – rotary spur gears provide smooth, continuous flow without the trouble and expense of check valves, accumulators and complex hydraulic circuitry.
Active Flowmeter – closed-loop speed control of pre- cise components ensures accurate flow control without adding a secondary flowmeter.
High Pressure – manufacturing tolerances of +/-.00005″ (1.25 micron) allow clearances to be kept to a minimum, and high process pressures to be achieved.
Compact – 2.5″ x 1.9″ and weight of 2 lb. (3cc) or 2.5 lb. (6cc) – full-size features compressed into a small, lightweight package.
Accurate – stable, repeatable flow control despite process variations due to temperature, viscosity and pressure.

Additional Information

CHAMELEON Bulletin Flushable Paints CIRCOR ZENITH Brochure

Specifications

GENERAL INFORMATION AND PERFORMANCE DATA

ZENITH Flushable Paint Pump Series

Product Models and Specifications:

ZENITH Spin Finish Pump Series
Available Capacities	3.0 – 6.0 cc / rev
Flow Rate	30 – 1,800 cc / min
Accuracy	+/- 1%
Repeatability	0.1% of set point
Max Operating Temperature	300F (150C)
Max Pressure Differential	700 psi
Max Viscosity	100,000 cps

General Information

Materials of Construction: 400 series stainless steel standard; High-vanadium Stainless and Diamond-like Coatings available.

High Pressure

manufacturing tolerances of +/- .00005″ (1.25 micron) allow clearances to be kept to a minimum, and high process pressures to be achieved.

Active Flowmeter

closed-loop speed control of precise components ensures accurate

Recommended Speed Range:

10 – 300 RPM

Inlet/Outlet Port Connections:

1/8-27
NPT,1/8 BSPP, or rear porting
