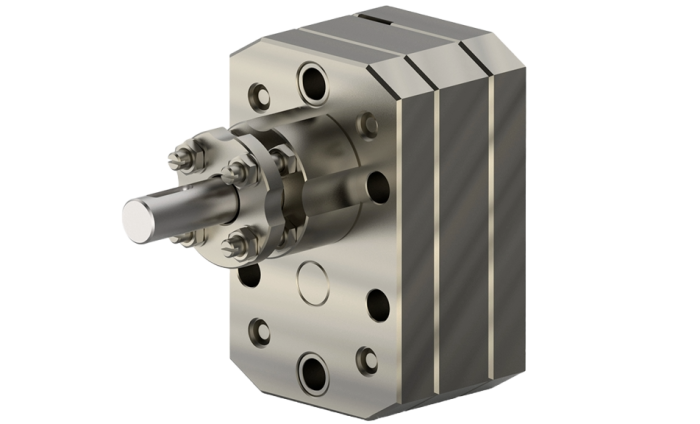

The tough and wear resistant H series Zenith pump series is designed for high temperature and viscosity service. The H series pumps provide precise, pulse free, repeatable flow in market segments such as adhesives, additives, polymers, plasticizers, oils, tars, inks and fibers.
PRECISION GEAR PUMPS
Precision gear pumps are an integral part of many manufacturing processes requiring metering, mixing, dispensing, coating, and extruding, where accuracy and uniformity of flow are critical. That’s why manufacturers in industries from manmade fibers and polymers to food and medical devices have relied on Zenith gear pumps since 1926. With high metering accuracy, pulse-free flow, and long wear life across a wide range of fluid and pressure conditions, the Zenith Pumps brand is synonymous with high performance and reliability.
In addition to standard product offerings, Zenith can provide custom-engineered pumps for demanding services, such as submersible, flushable, and sanitary applications. Backed by the resources of CIRCOR Engineered Systems group, Zenith Pumps can provide a complete custom-engineered system along with the pump, from the tank to the controls, letting you focus on your core competency while we develop a fluid handling, mixing, or metering system aimed at providing the highest precision and reliability possible.
Product Models and Specifications:
| H Series | HPB Series | HMB Series | HLB Series | HXB Series |
| Available Capacities | 0.16 – 2.92 cc / rev | 3.5 – 10.0 cc / rev | 10 – 50 cc / rev | 70 – 200 cc / rev |
| Flow Rate | 0.00013 – 0.14 gpm | 0.0028 – 0.476 gpm | 0.008 – 2.4 gpm | 0.055 – 9.5 gpm |
| Max Operating Temperature (?) | ||||
| Max Inlet Pressure | Up to 40 psi | Up to 40 psi | Up to 40 psi | Flooded suction |
| Max Discharge Pressure | Up to 4,000 psi | Up to 4,000 psi | Up to 4,000 psi | Up to 4,000 psi |
| Viscosity Range | Up to 2,000,000 cps | Up to 2,000,000 cps | Up to 2,000,000 cps | Up to 2,000,000 cps |
Other data
Design standard: Manufacturer STD
Fluids: Abrasives, Additives, Adhesives, Coatings, Fibers, Oils, Plastics, Polymer, Resins, Surfactants, Urethanes
Sealing: Packing, Lip seals, Single Mechanical seal
HPB Series
Available Capacities 0.16 – 2.92 cc / rev;
Flow Rate 0.00013 – 0.14 gpm;
Max Operating Temperature
Max Inlet Pressure Up to 40 psi;
Max Discharge Pressure Up to 4000 psi;
Viscosity Range Up to 2,000,000 cp;
HMB Series
Available Capacities 3.5 – 10.0 cc / rev;
Flow Rate 0.0028 – 0.476 gpm;
Max Operating Temperature
Max Inlet Pressure Up to 40 psi;
Max Discharge Pressure Up to 4000 psi;
Viscosity Range Up to 2,000,000 cp;
HLB Series
Available Capacities 10 – 50 cc / rev;
Flow Rate 0.008 – 2.4 gpm;
Max Operating Temperature
Max Inlet Pressure Up to 40 psi;
Max Discharge Pressure Up to 4000 psi;
Viscosity Range Up to 2,000,000 cp;
HXB Series
Available Capacities 70 – 200 cc / rev;
Flow Rate 0.055 – 9.5 gpm;
Max Operating Temperature
Max Inlet Pressure Flooded suction;
Max Discharge Pressure Up to 4000 psi;
Viscosity Range Up to 2,000,000 cp;
Max gpm: 9.50
Max lpm: 35.96
Max m³/hr: 2.16
Max bar (dp): 275.79
Max psi (dp): 4000.00
Viscosity
Max cSt [mm²/s]: 2000000.00
Min cSt [mm²/s]: 1.00
Min SSU: 28.50
Max C°: 510.00
Max F°: 950.00
Min C°: 0.00
Min Fº: 32.00
