Ebara – Jet Pumps

  • Versitile low volume jet pumps
  • Handles Water/Air Mixture
  • Pressures up to 6 Bar
  • Self Priming (some models)

Ebara’s Jet Pumps are suitable for clean water applications where relatively high pressures are required.  With flow rates starting at 5 l/min and ranging up to 75 l/min the Jet Pump range is ideal for domestic pressure boosting applications, small scale irrigation and drinking water supply.

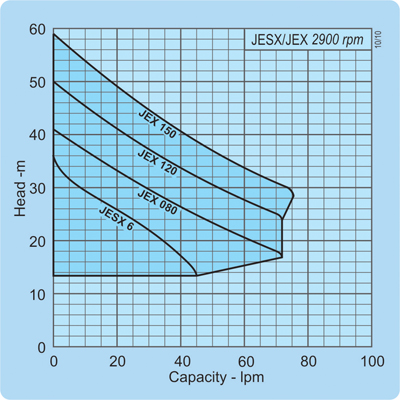

JESX and JEX
Motor Output: 0.44 to 1.1 kW (1ph)
Outlet Size: 25 mm
Flow Rates: 5 to 75 lpm
Head: 15 to 59 m
Max Liquid temp: 45oC
Max. work pressure: 6 Bar

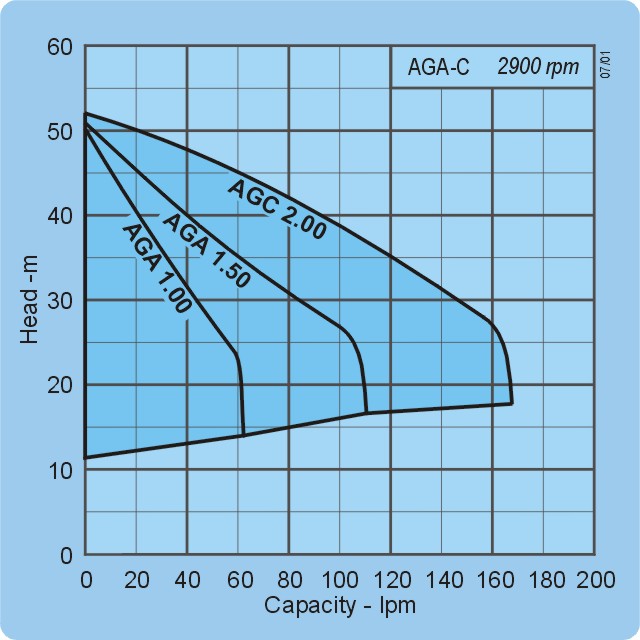

AGA-C Self Priming Jet Pumps
Motor output: 0.75 to 1.5kW (1ph)
Outlet size: 25mm
Flow rates: 10 to 160 lpm
Head: 24 to 52 m
Max. liquid temp: 45oC
Max. work pressure: 10 Bar (6 Bar for AGA 1.00)

  • Sturdy Stainless Steel Design
  • Available in Self Priming Models
  • Available with Pressure Systems and Controllers
