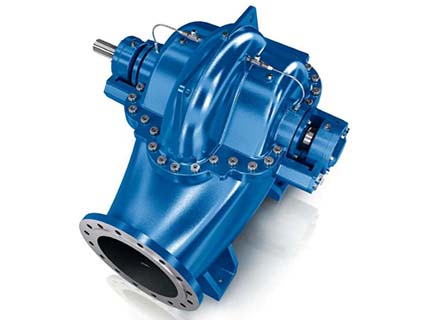

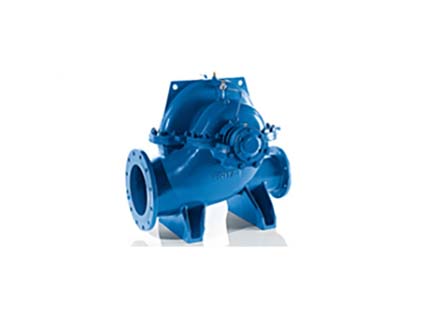

Ritz Axial Split Case – ASC and FP Series

  • Efficient, Economical Design
  • High Flow

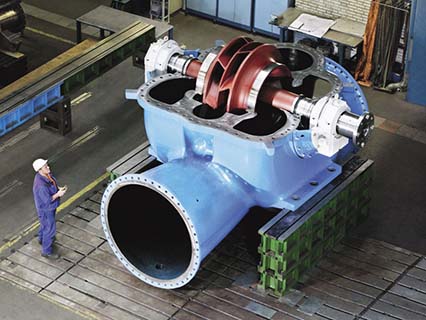

Double suction split case pumps are installed for water supply, irrigation, or flood control; as circulation water or cooling water pumps; in district heating plants or as fan pumps in the pulp and paper industry.  With efficiencies of over 90%, ANDRITZ split case pumps help to save valuable energy.  All pumps are fitted with a double-flow radial impeller which achieves very favorable NPSH values.  Due to the axial split case design, maintenance is fast and easy.

Performance Specification:

Ritz – ASCRitz – FP
Design/ConfigurationSingle-stage, axial split caseSingle-stage, double suction, closed impeller
Head (m)Up to 150Up to 160
Flow Rate (m3/hr)Up to 4,200200 – 20,000
Pressure (Bar)Up to 25Up to 25
Temperature (Degrees Celsius)Up to 110Up to 110
