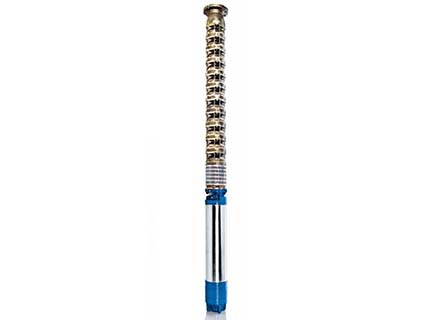

Ritz Submersible HDM (Heavy Duty Mining)

High heads
Large capacities
High operational reliability
Maintenance-free solutions
High-quality material designs
Long service life
High efficiency
Flexible adaptation to changing pumping conditions with MS-T – Modular Shaft Technology
Solutions for the most extreme operating conditions with HDM – Heavy Duty Mining

ANDRITZ submersible pumps are used in all areas of water procurement, distribution, and dewatering, e.g. in deep wells and in waterworks, for mining and for offshore applications.

ANDRITZ maintenance-free, innovative submersible pumps are the response to extremely stringent demands for operational reliability, service life, and efficiency. Thousands of submersible pumps have been installed around the world, working under severest conditions. ANDRITZ sets itself apart with its innovative submersible motor pump technology.

	HDM
Type	Double Suction, submersible motor pumps
Design	61/67/68
Q	up to 6,000 m3/hr
H	up to 1,500 m
t	up to 75 Degrees Celcius
n	up to 3,600 rpm
Materials	ductile iron, aluminium, bronze, duplex stainless steel
