Ebara – Stainless Steel Submersible Pumps
General
With a range that spans flow rates from 20 l/min up to 700 l/min, Ebara’s list of Stainless Steel Submersible Pumps are second to none.
The range commences with the small “OPTIMA” and “BEST ONE” models catering for flow rates of 20-170 l/min. These are ideal for emptying sumps, tanks and pools or for emergency water transfer. The range progressively grows in volume through the “BEST 2-5”, the “RIGHT” and onto the “DW VOX” with a flow of up to 700 l/m and heads up to 14.5m.
Related Information
Additional Information
Specifications

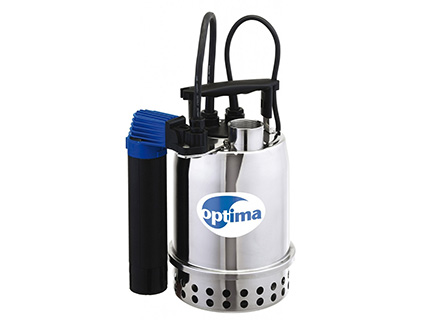

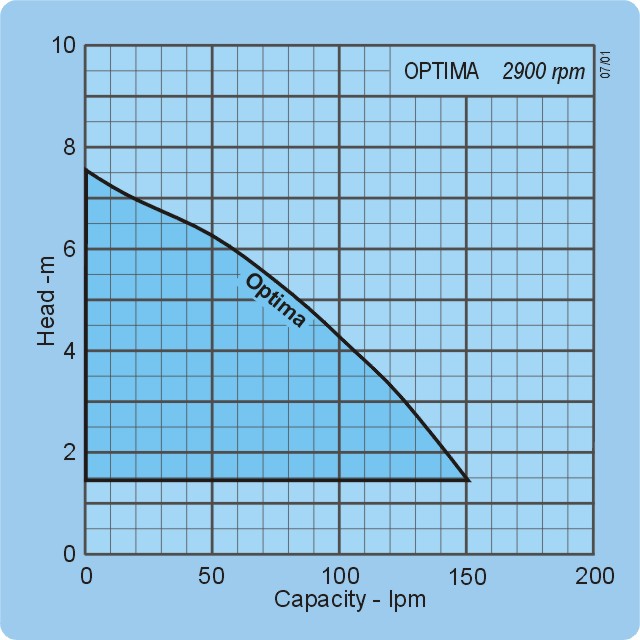

OPTIMA Domestic Sump Pumps
Motor output: 0.25 kW (1ph) Manual or Automatic
Outlet size: 32 mm
Flow rates: 20 to 150 lpm
Head: 2 to 7.5 m
Max. liquid temp: 40 oC

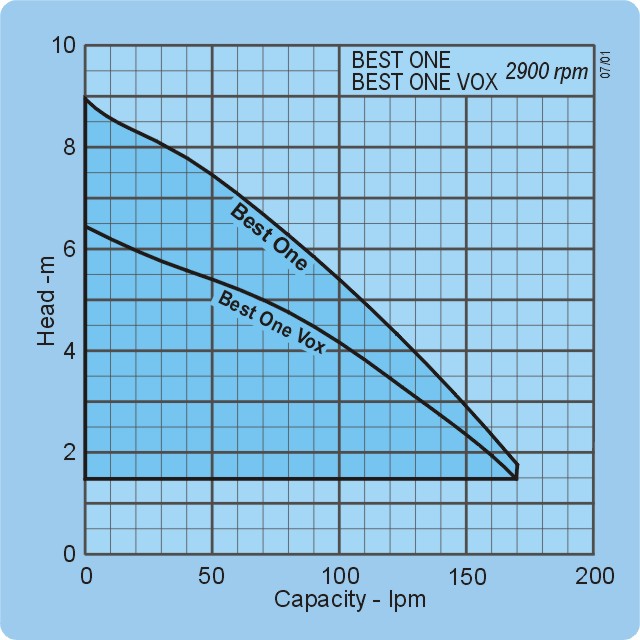

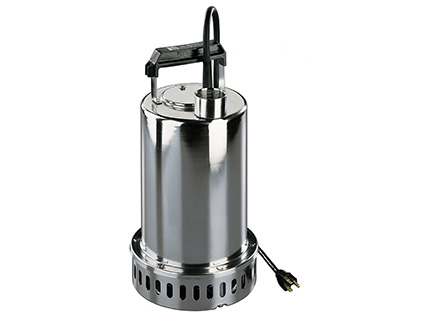

BEST ONE Domestic Sump Pumps
Motor output: 0.25 kW (1ph) Manual or Automatic
Outlet size: 32 mm
Flow rates: 20 to 170 lpm
Head: 2 to 8.5 m
Max. liquid temp: 40 oC

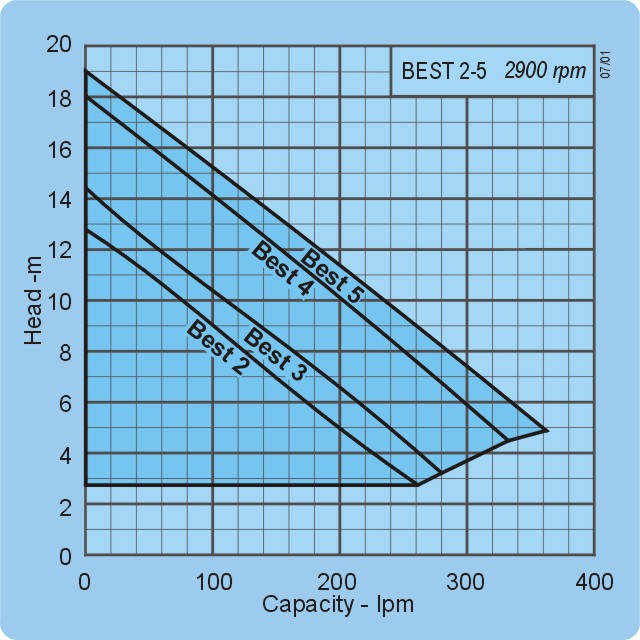

BEST 2-5
Motor output: 0.55 to 1.1 kW (1ph) Manual or Automatic, 0.55 to 1.5 kW (3ph) Manual only
Outlet size: 40 mmFlow rates: 20 to 360 lpm
Head: 3 to 19 m
Max. liquid temp: 35 oC

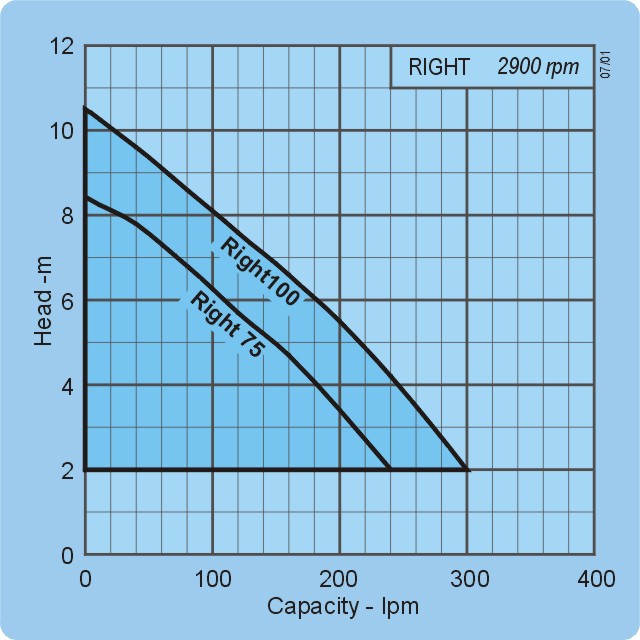

RIGHT Submersible Semi Vortex Pumps
Motor Output: 0.55 to 0.75 kW (1ph) Manual or Auto, 0.55 to 0.75 kW (3ph) Manual only
Outlet Size: 40 mm
Flow Rates: 40 to 300 lpm
Head: 2 to 10.5 m
Max. liquid temp: 50 oC
Max. solids: 35 mm

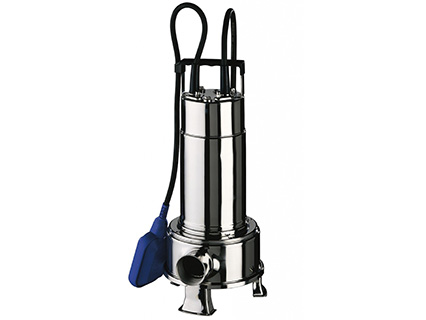

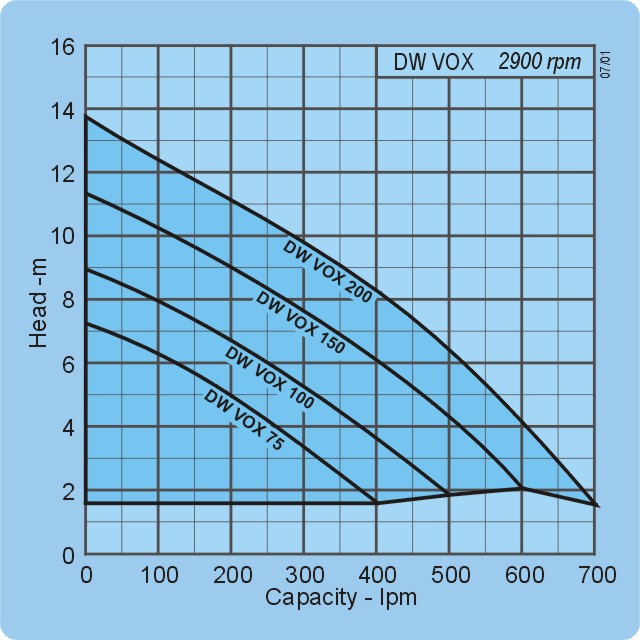

DW VOX Submersible Vortex Pumps
Motor Output: 0.55 to 1.1 kW (1ph) Manual or Auto, 0.55 to 1.5 kW (3ph) Manual only
Outlet Size: 50 mm
Flow Rates: 100 to 700 lpm
Head: 2 to 13.8 m
Max Liquid temp: 40 oC
Max. solids: 50 mm
Features
- Manages solids up to 50mm (“DW VOX”)
- Double Mechanical Seal (available in the “BEST 2-5”, “RIGHT” & “DW VOX” models)
