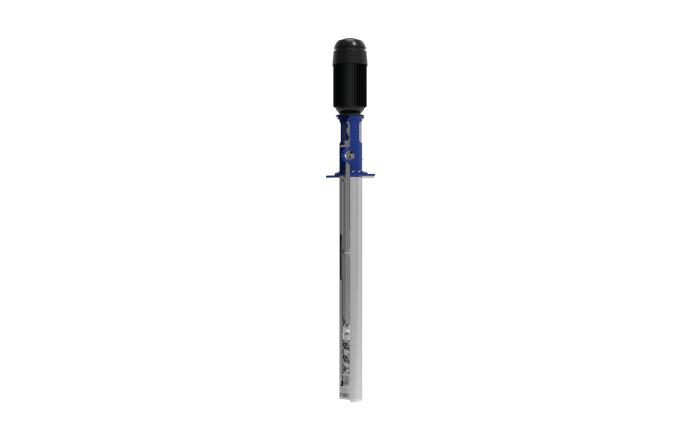

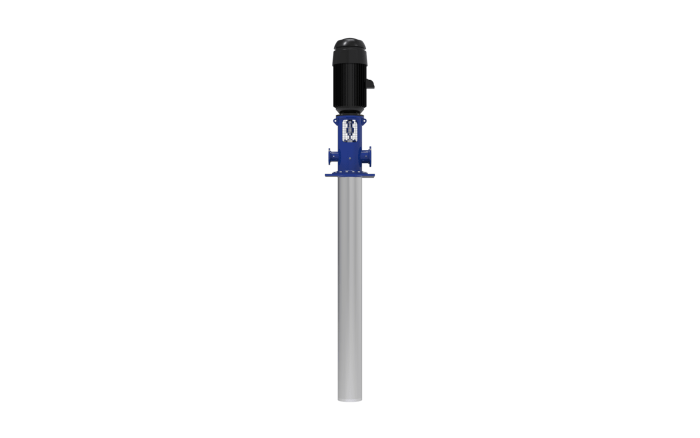

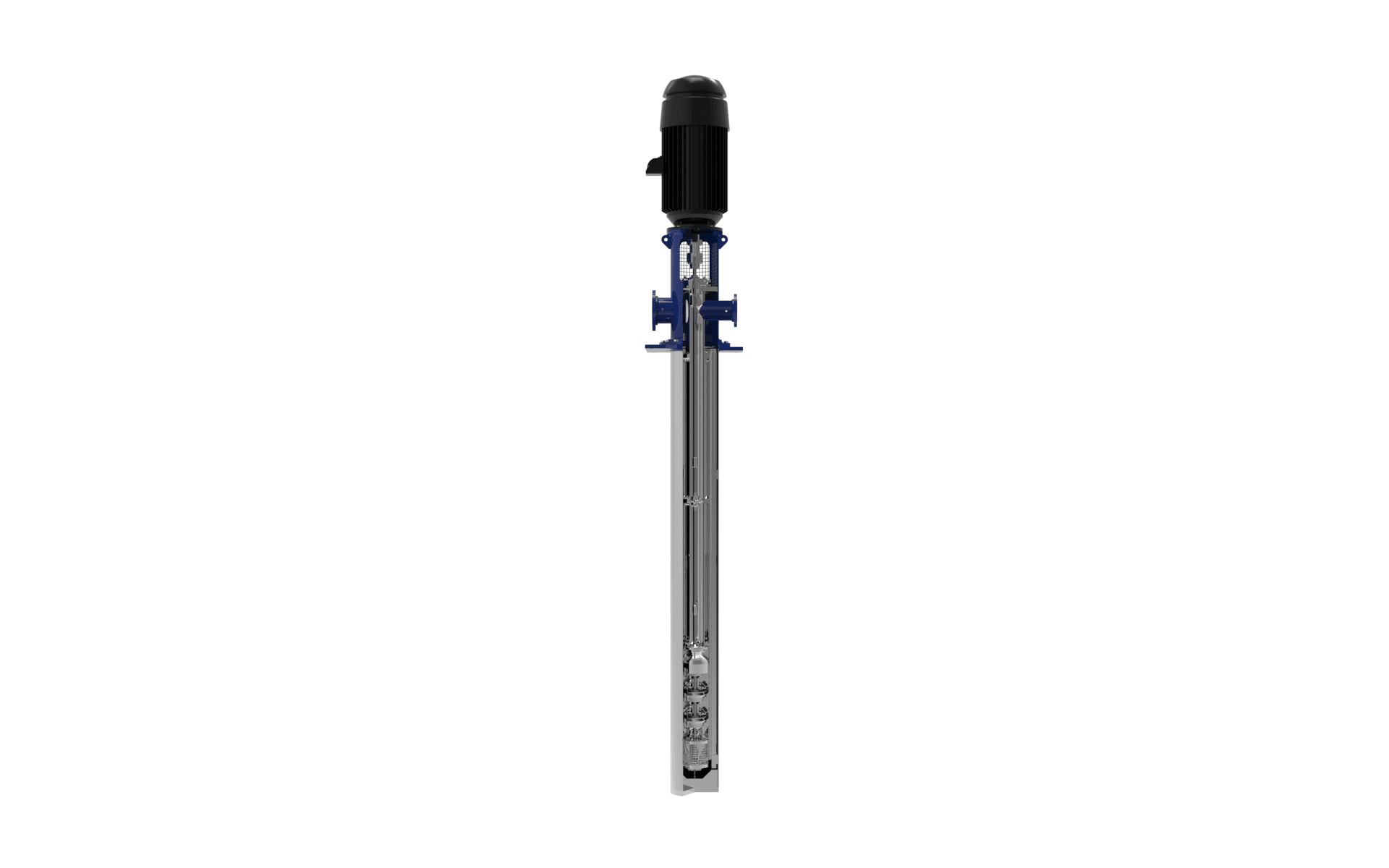

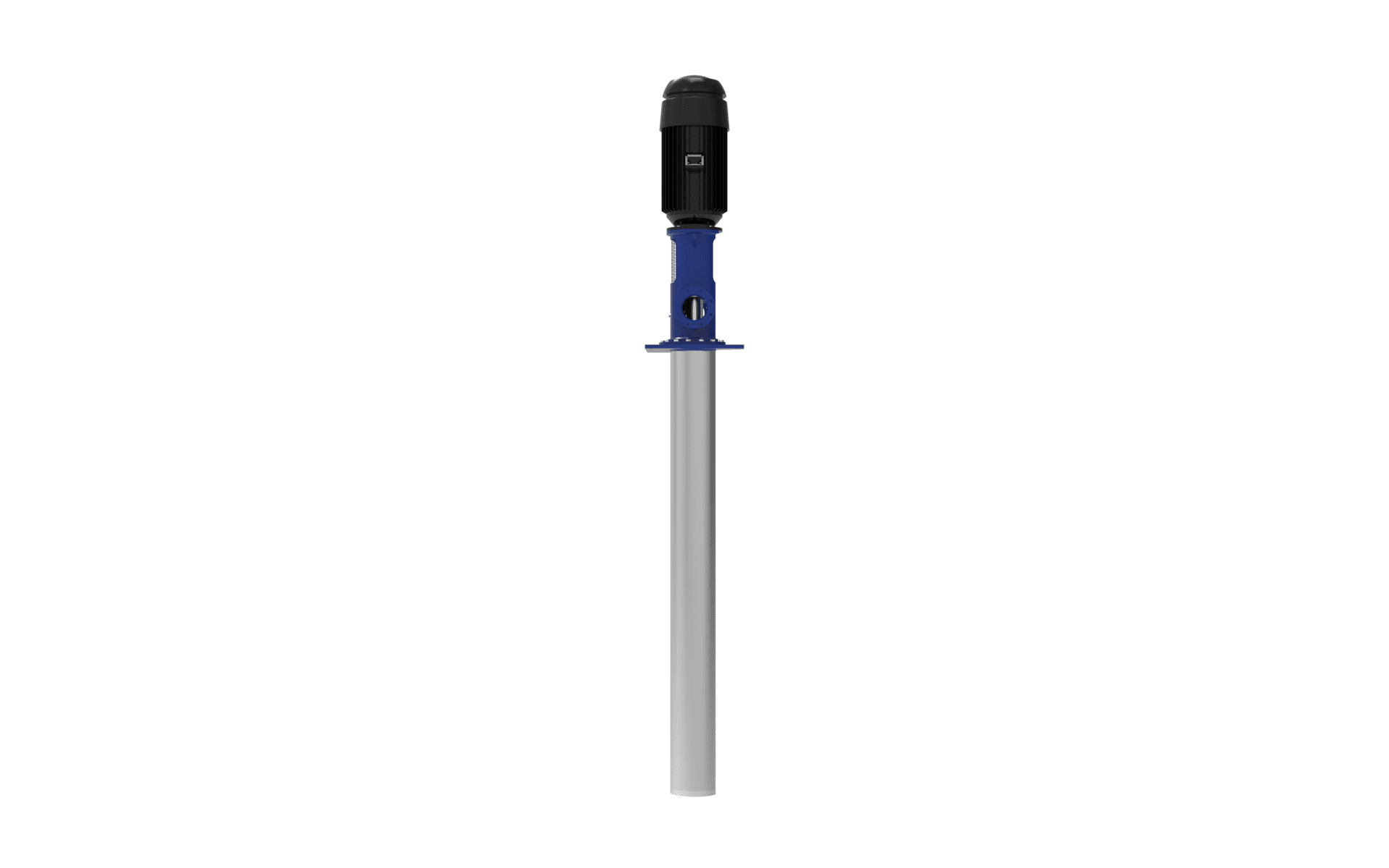

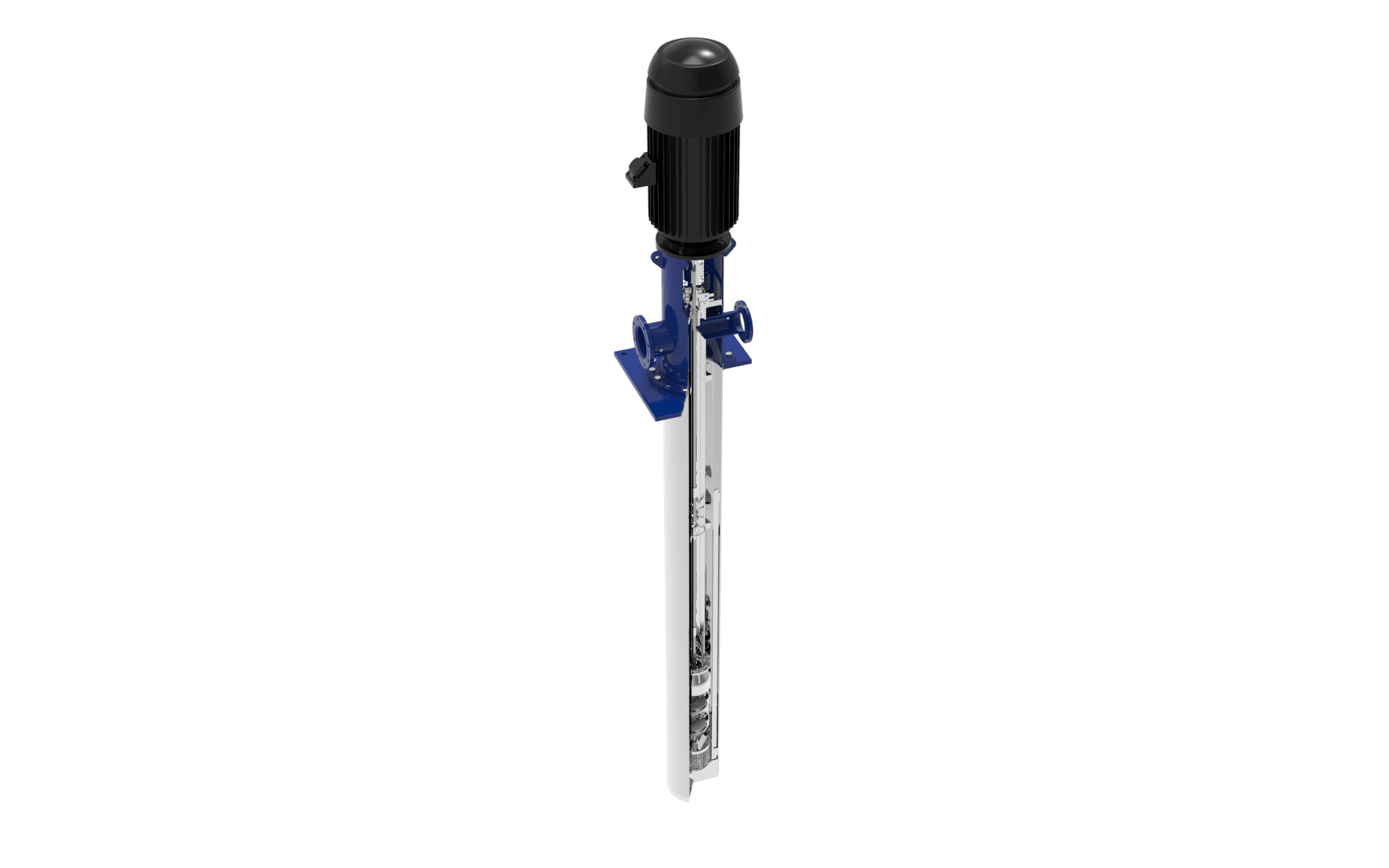

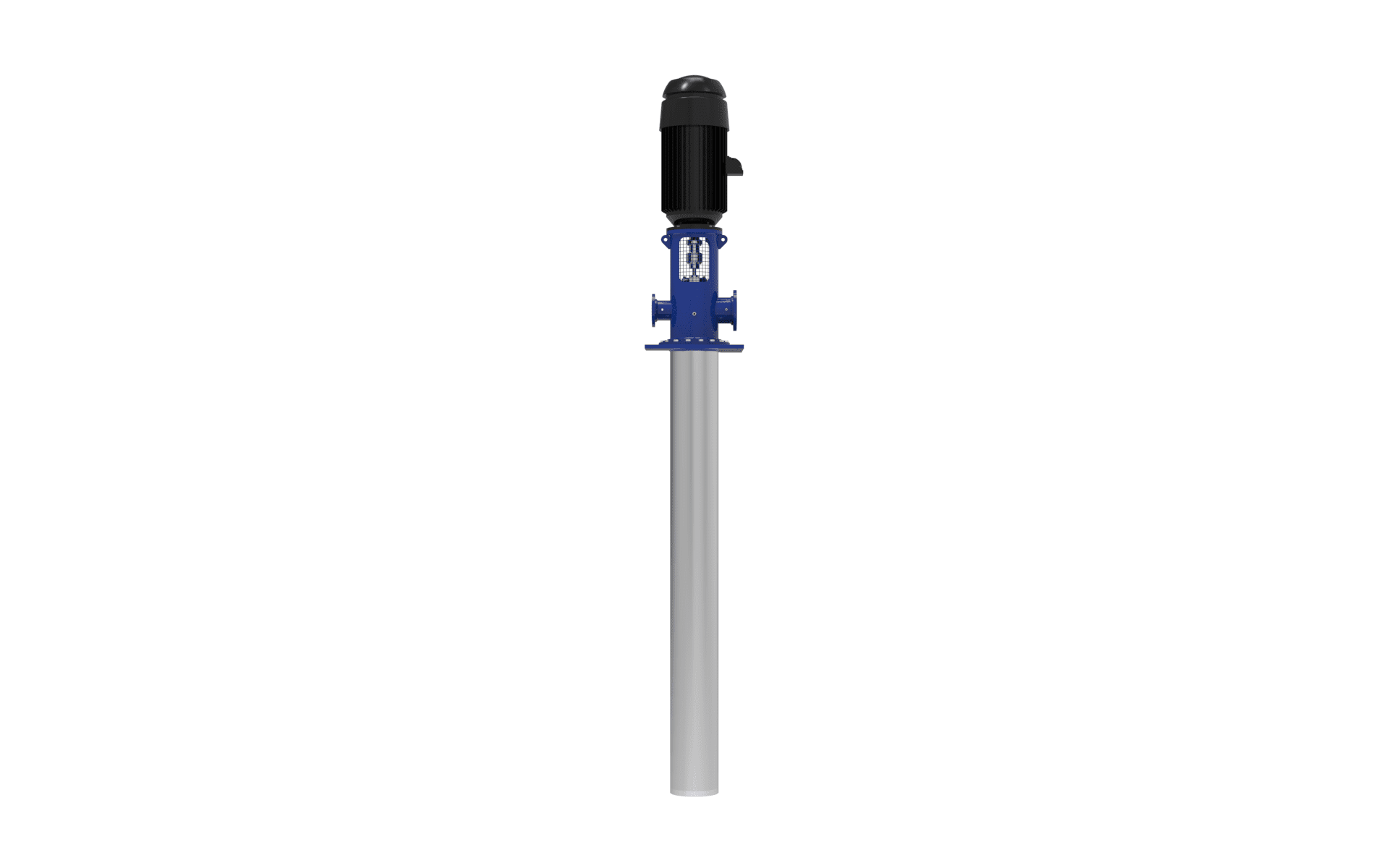

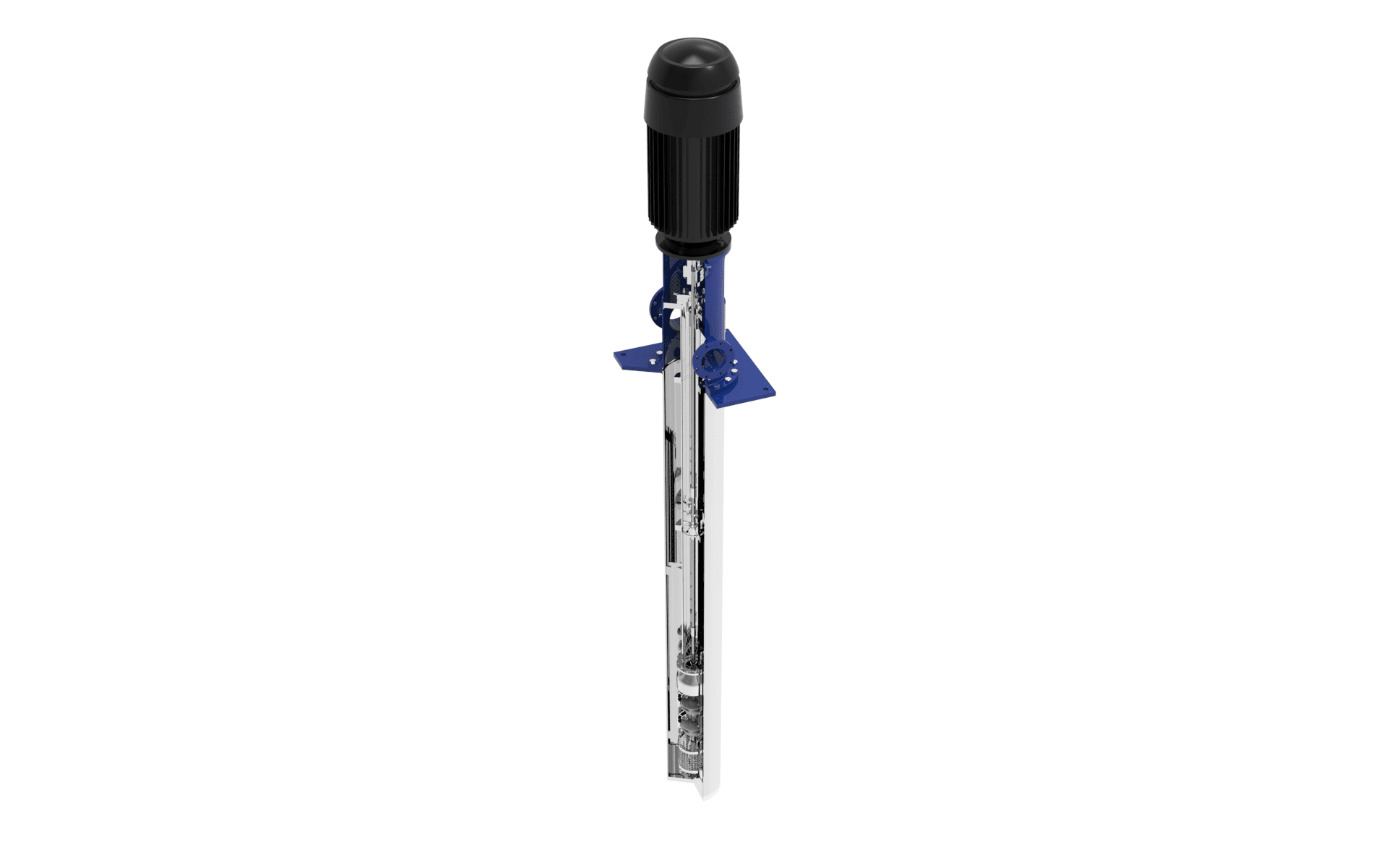

The Floway® VHP pump is API 610 current edition compliant, vertical close coupled, single or multistage turbine pump, with a fabricated discharge head, top mounted motor, and wet pit (VS1) or closed suction (VS6).
The Floway® VHP can withstand higher pressures with premium efficiencies and low operating costs. The available low-NPSH impeller allows for a reduced barrel length. The pump bowl assembly is characterized as low energy per stage resulting in a broad flow range with excellent hydraulic stability.
The “O” ring joints throughout pump eliminates leaking for higher pressure applications. A throttle bearing provides shaft support and allows for higher operating pressures.
KEY FEATURES & BENEFITS
API 610 current edition compliant
API 610 material combinations
Thrust bearing assembly available
Fabricated discharge head
Above & below ground suction
Flanged column
Enclosed & open impellers
Multiple coating options
Multiple NDE testing options
Bowl & impeller wear rings
Thrust balanced impeller
Hard chrome bearing journals
Product lube & oil lube shafting
Mechanical shaft sealing
VSS & VHS motor shafting
Keyed impeller mounting
APPLICATIONS
Vertical process
Light hydrocarbon
High vapor pressure (low NPSHA)
Pipeline
Pipeline booster
Offshore platform & seawater lift (crude oil transfer)
Refinery service
LPG transfer
Secondary recovery
Cryogenic liquid
Cooling water
Aircraft fueling
Terminal & transfer
Fire pumps
DESIGN STANDARD
API 610 11th edition
SIZE RANGE & DIMENSIONS
4 – 37 inches
PRESSURE CLASS & POWER
Pressures up to 3,000 psi (200 bar)
TEMPERATURE RANGE
-130ºF (-90ºC) to 450ºF (220ºC)
CAPACITY
35,000 gpm (8,000 m3/h)
MATERIALS
S4, S5, S6 A8, D1, D2
