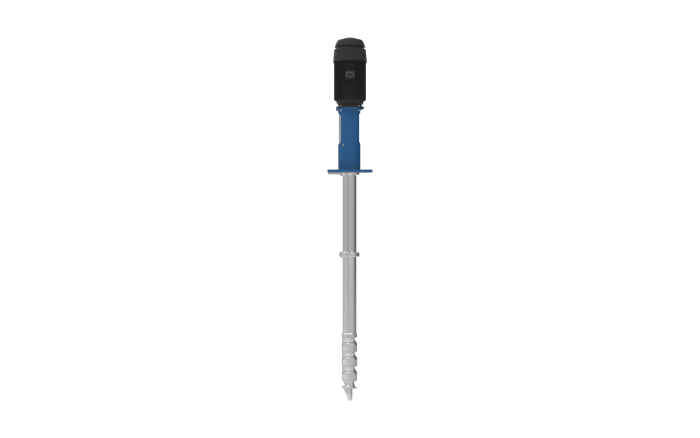

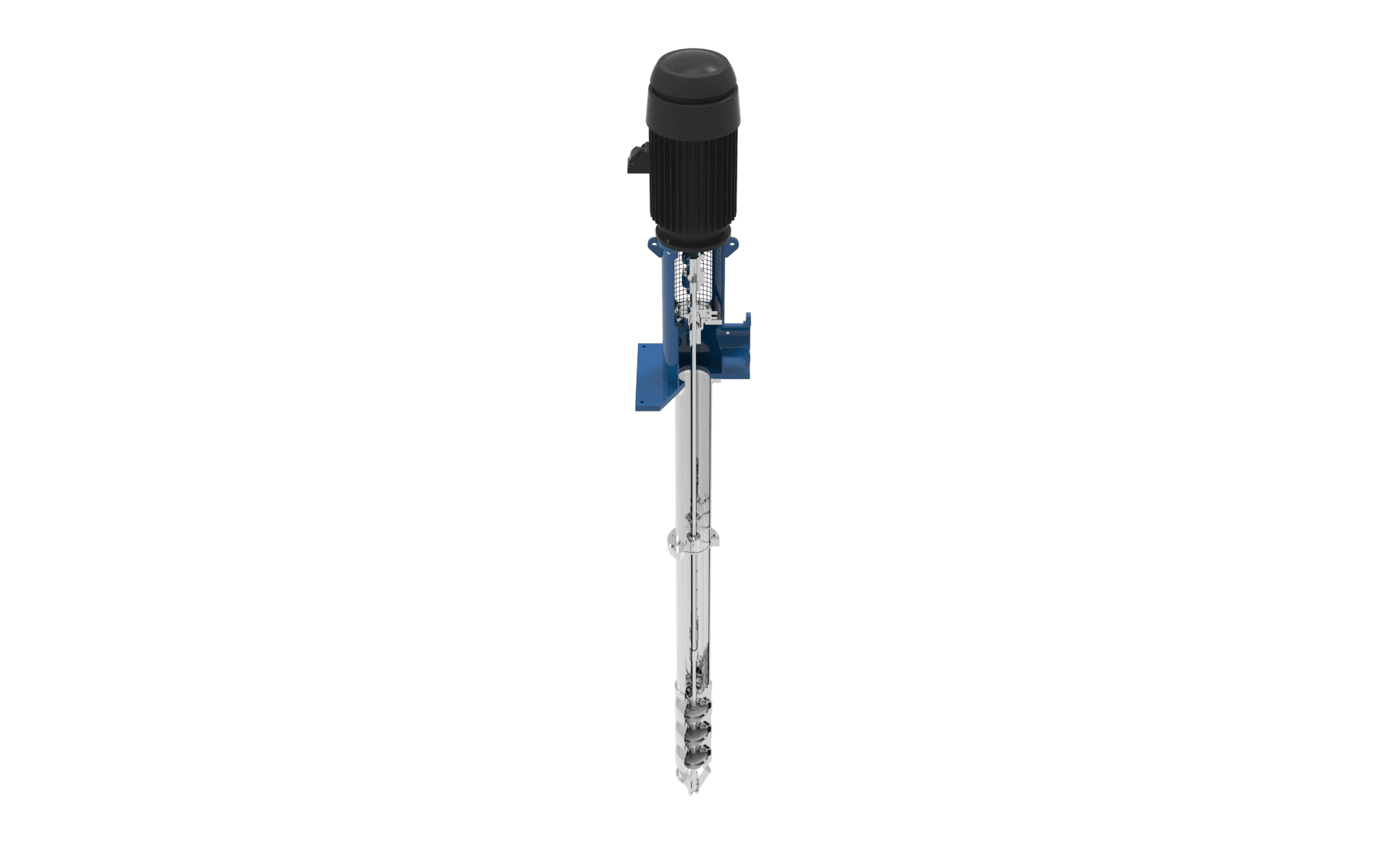

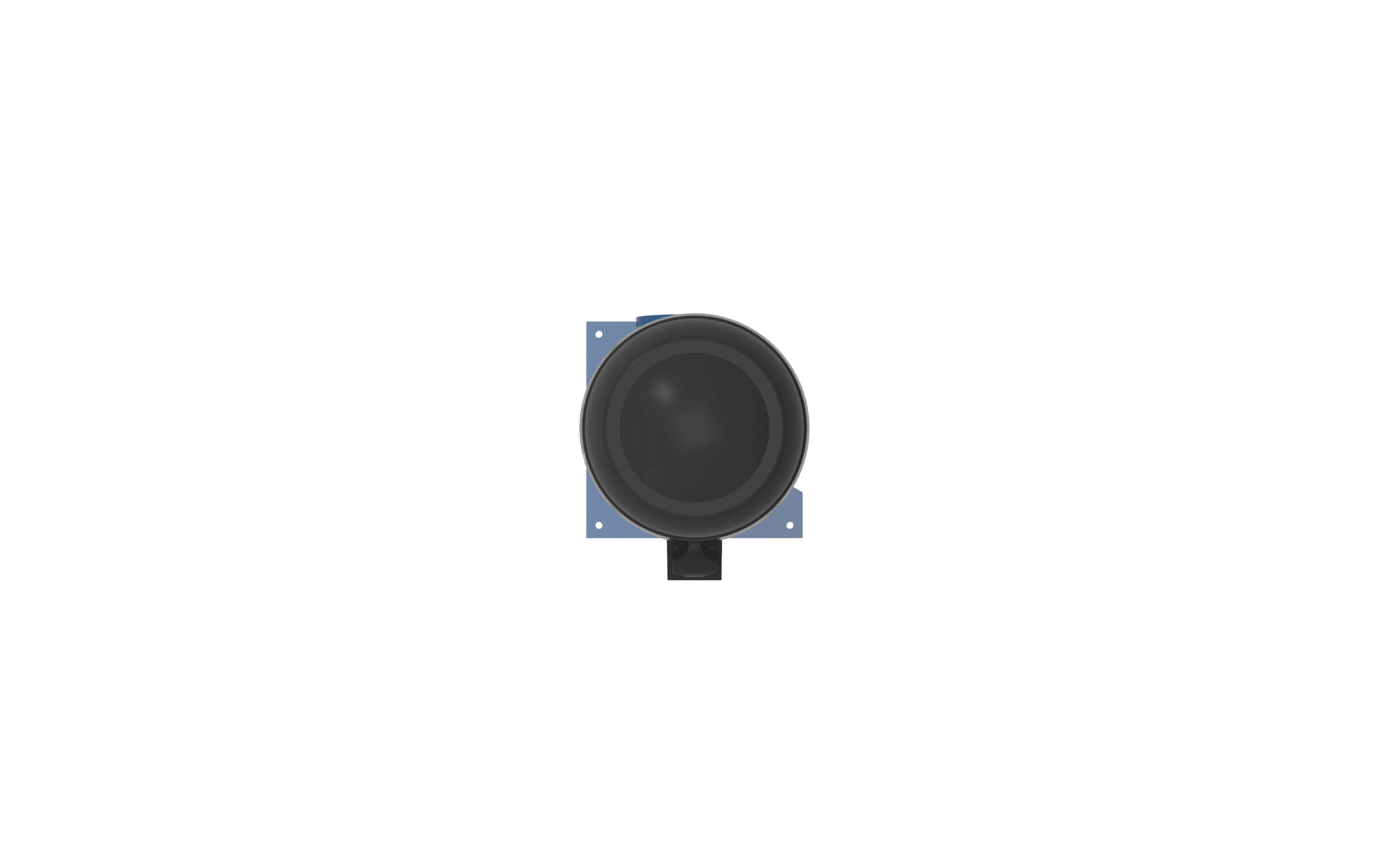

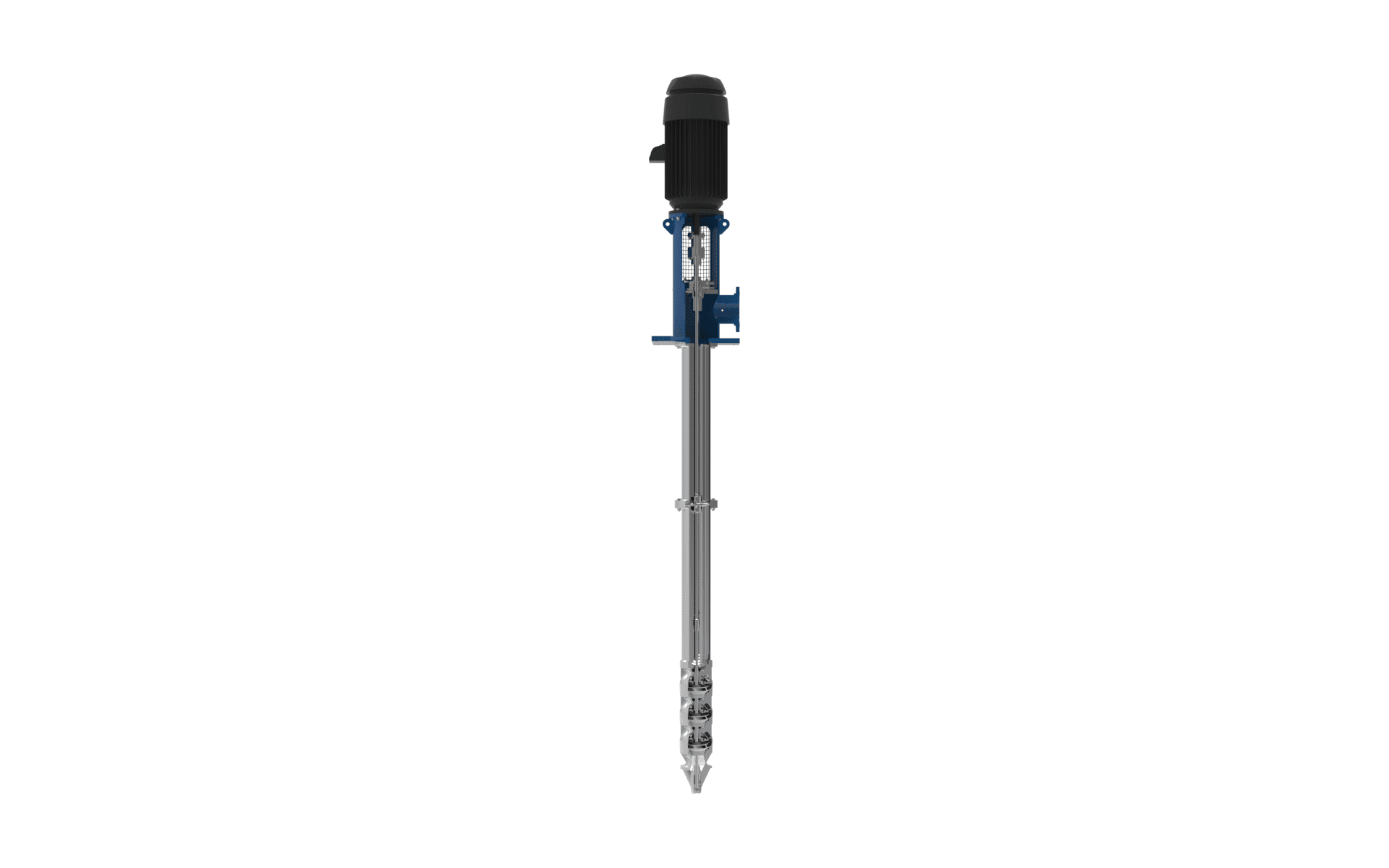

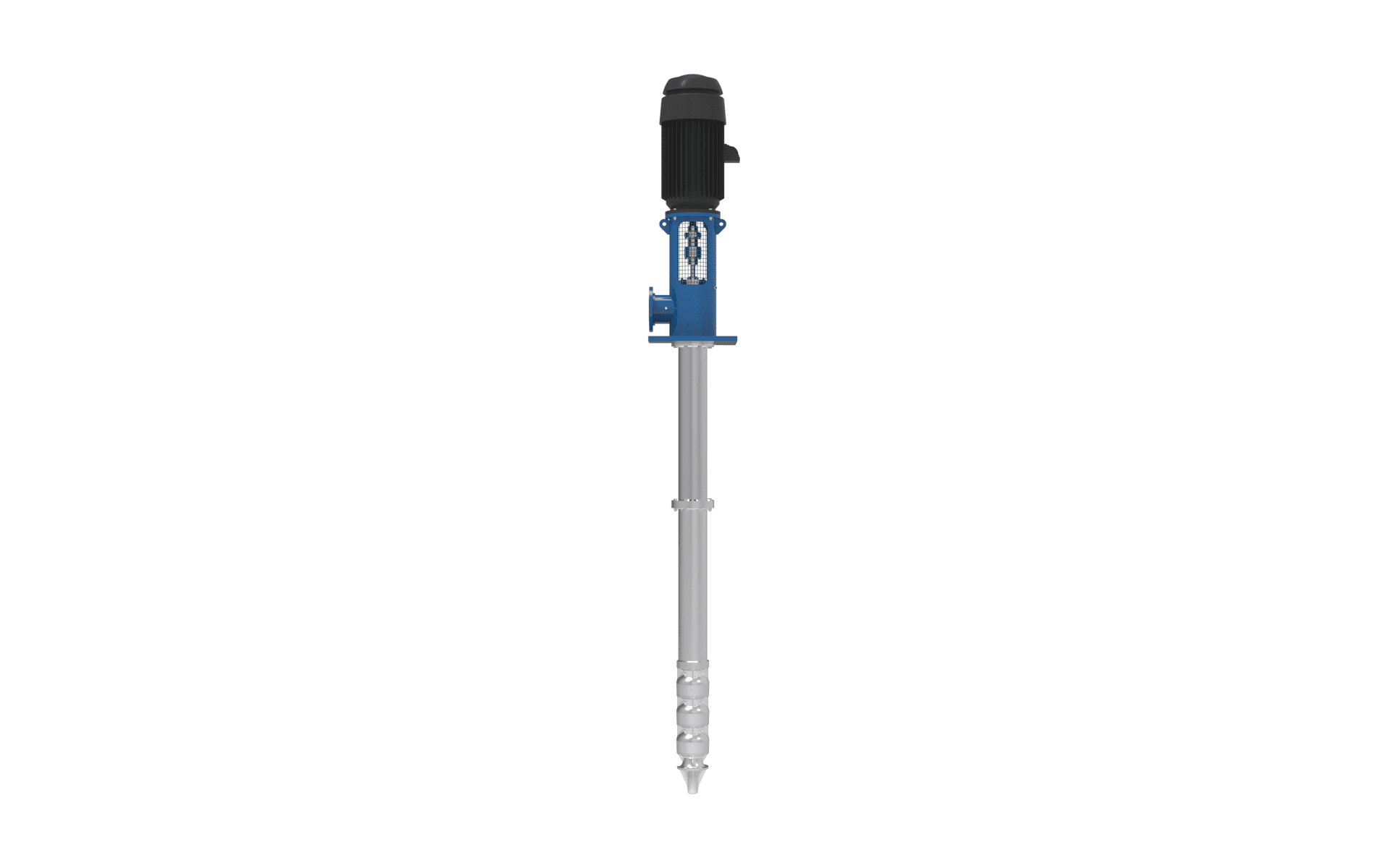

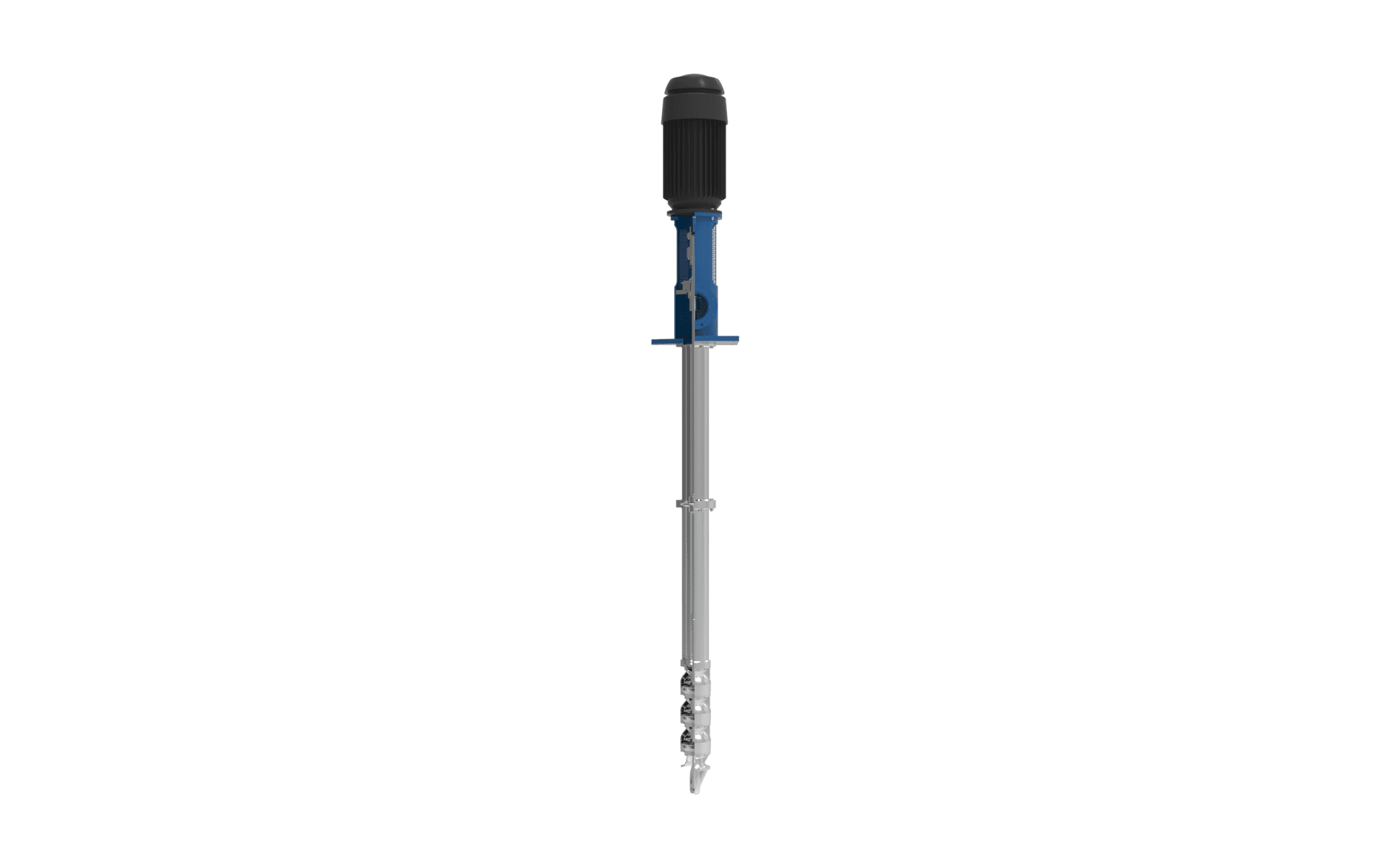

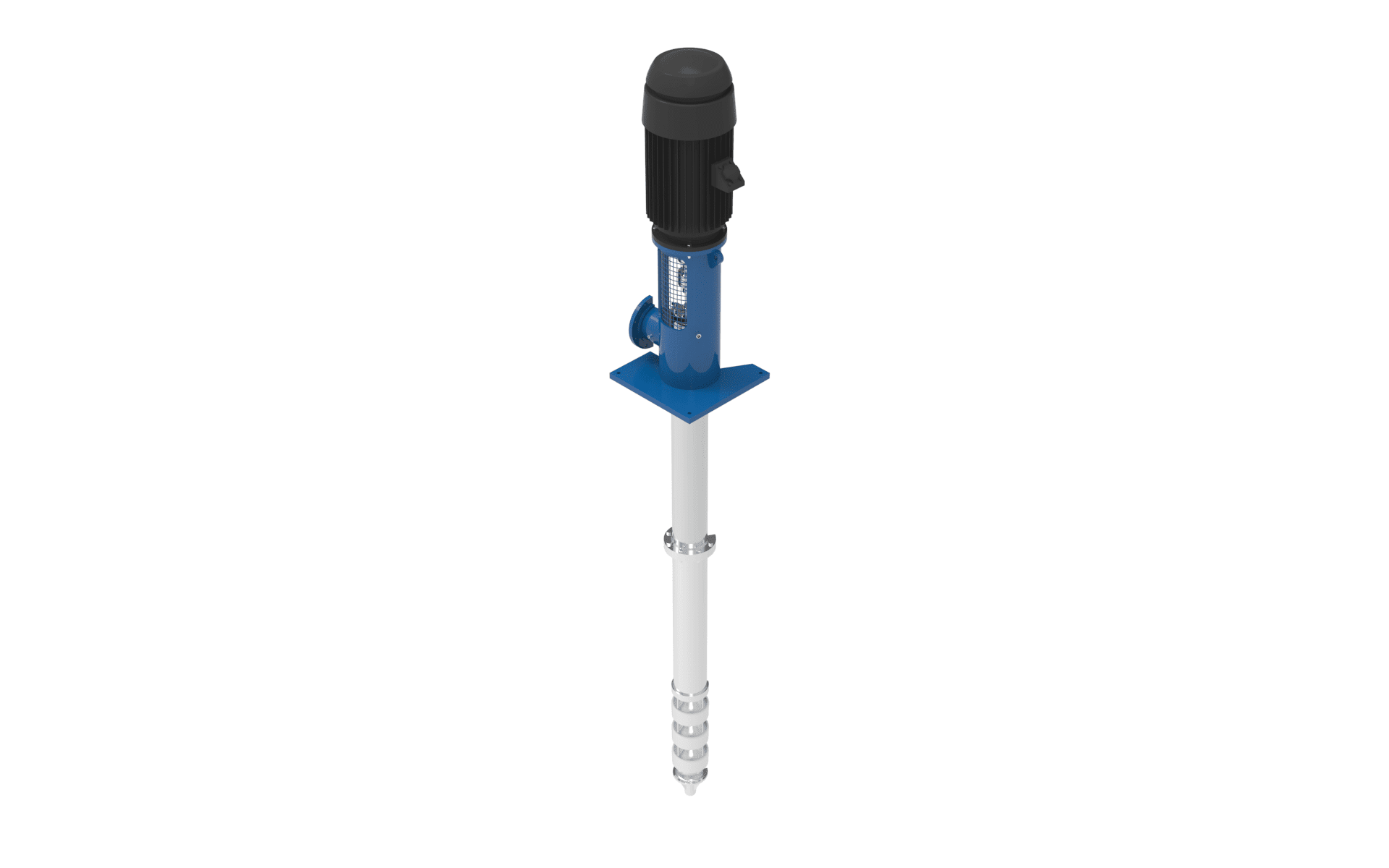

Floway® VTP (Vertical Turbine Pump) is a vertical close coupled, single or multistage turbine pump, with a cast or fabricated discharge head, top mounted motor, and closed suction or wet pit design. This pump is available in a variety of material combinations for multiple applications.
The Floway® VTP features a special toleranced motor coupling and jacking posts for precise motor and pump shaft alignment, special impeller balancing, and reduced run-out on motor base resulting in industry leading low vibration levels. In addition the Floway® VTP has a tapered collet impeller mounting option for easy installation, lateral adjustment, and low hydraulic thrust, and a semi-open impeller option for solids handling capability, or flanged column option for ease of assembly.
KEY FEATURES & BENEFITS
Cast & fabricated discharge head
Above & below ground suction & discharge
Flanged & threaded column
Enclosed & open impellers
Multiple coating options
Multiple NDE/testing options
Bowl & impeller wear rings
Thrust balanced impeller
Hard chrome bearing journals
Product lube & oil lube shafting
Packed & mechanical shaft sealing
VSS/VHS motor shafting
Colletted & keyed impeller mounting
NSF/ANSI 61 & 372 certification
DESIGN STANDARD
Hydraulic Institute
UL/FM
PRESSURE CLASS & POWER
Pressures up to 1,500 psi (103 bar)
CAPACITY
35,000 gpm (8,000 m3/h)
MATERIALS
Iron, Bronze
Ni Al Bronze
Carbon Steel
12% Chrome
Stainless Steel
Duplex SS
254 SMO
Titanium
TEMPERATURE RANGE
-40ºF (-40ºC) – 175ºF (80ºC)
APPLICATIONS
Vertical turbine pumps
Centrifugal pumps
Water Supply
Tailings Pumps
RO Treatment Pumps
Dewatering Pumps
Seepage Water Pumps
Reclaim Water Pumps
Overflow Water Pumps
Barge Mounted Pumps
High service
Treated water
Finished water
Booster
Effluent disposal
Lake or river raw water intake
Secondary recovery
Service water
Aquifer Storage and Recovery (ASR)
Backwash
Well water
Screen wash
Reverse osmosis
Corrosive water services
seawater & brackish water
Snow Making
Condensate
Cooling Tower
HVAC
Automotive
Amusement Park & Aquarium
Cooling Tower
Geothermal
Power
Nuclear Power (non-safety related)
Fire pump
SIZE RANGE & DIMENSIONS
4 – 37 inches
