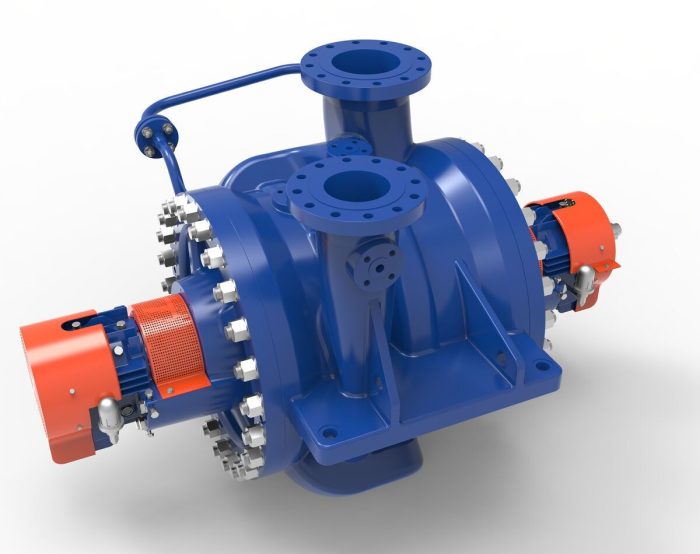

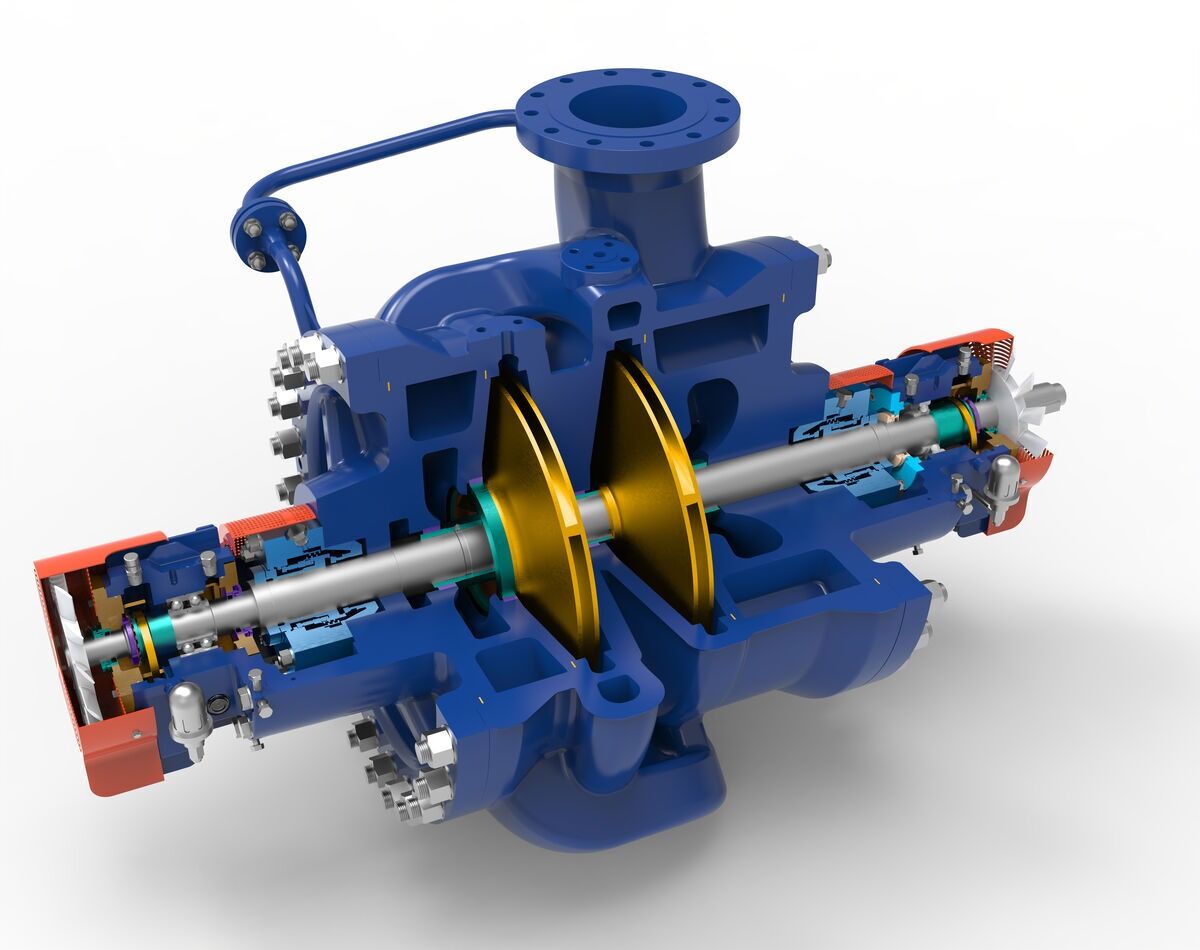

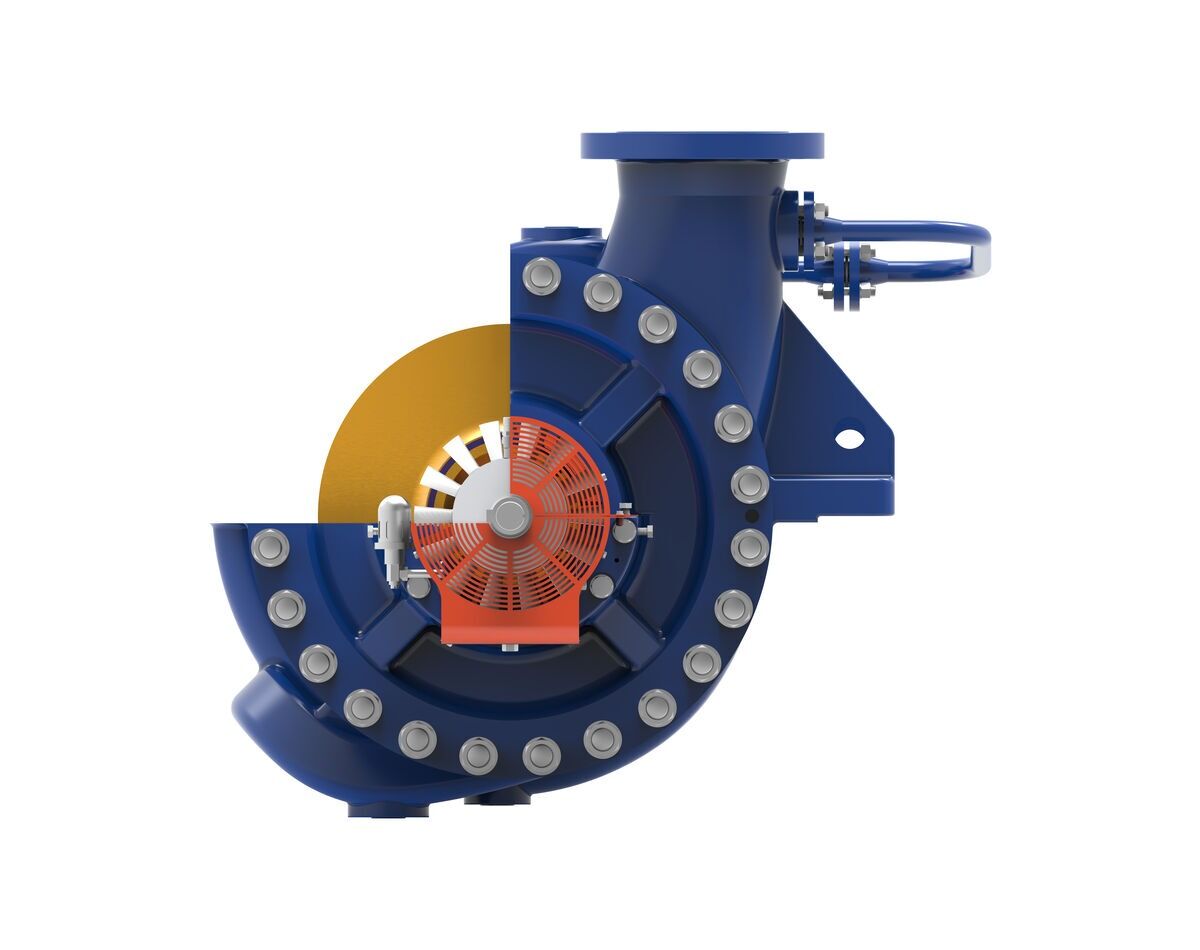

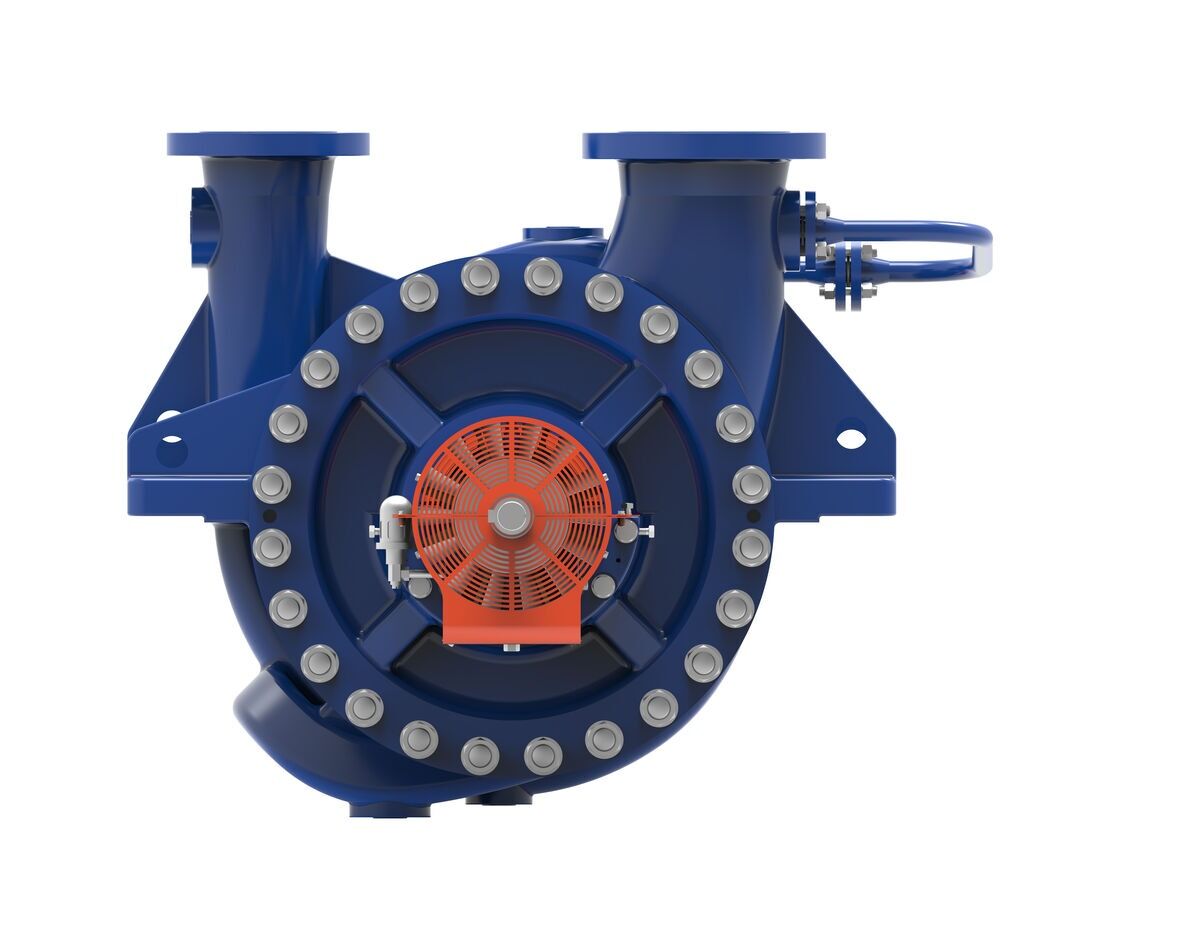

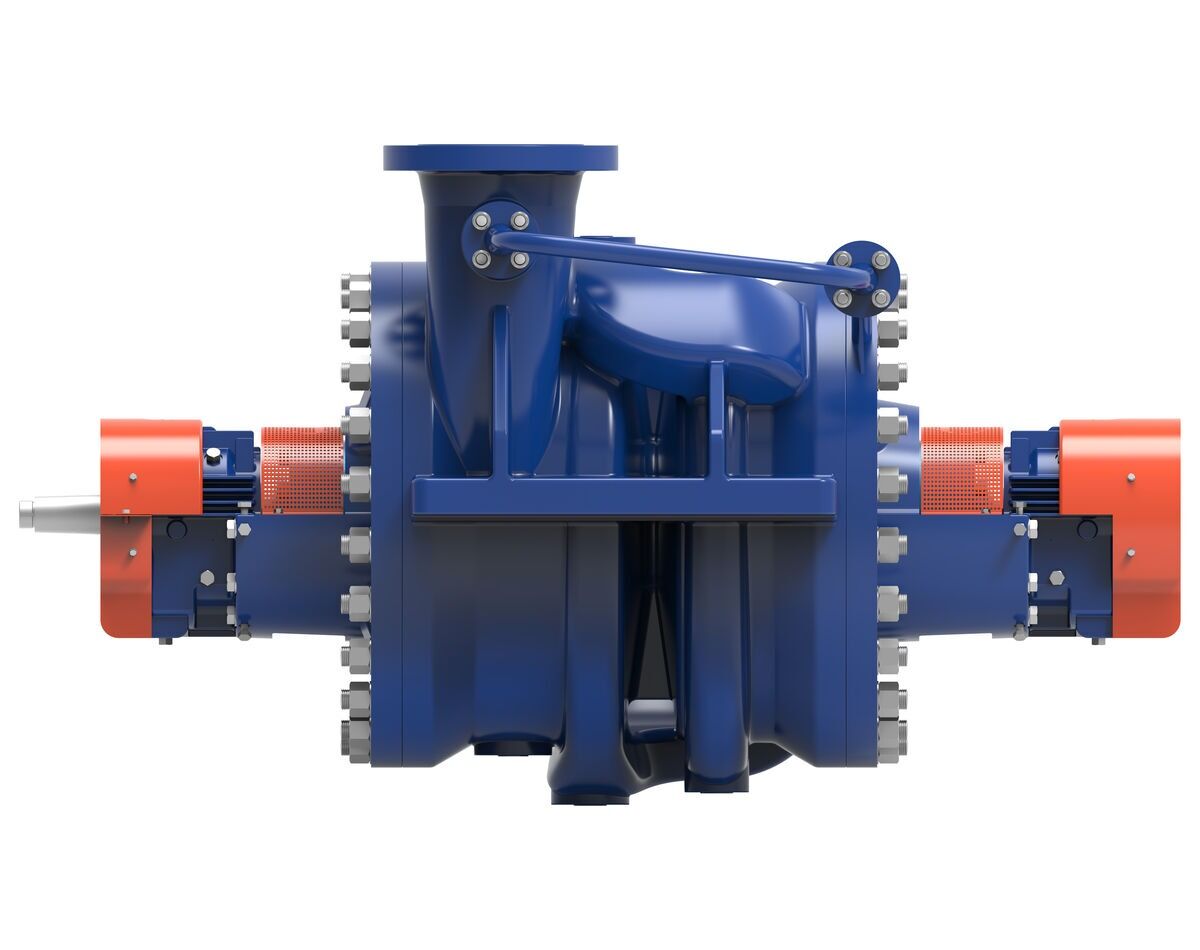

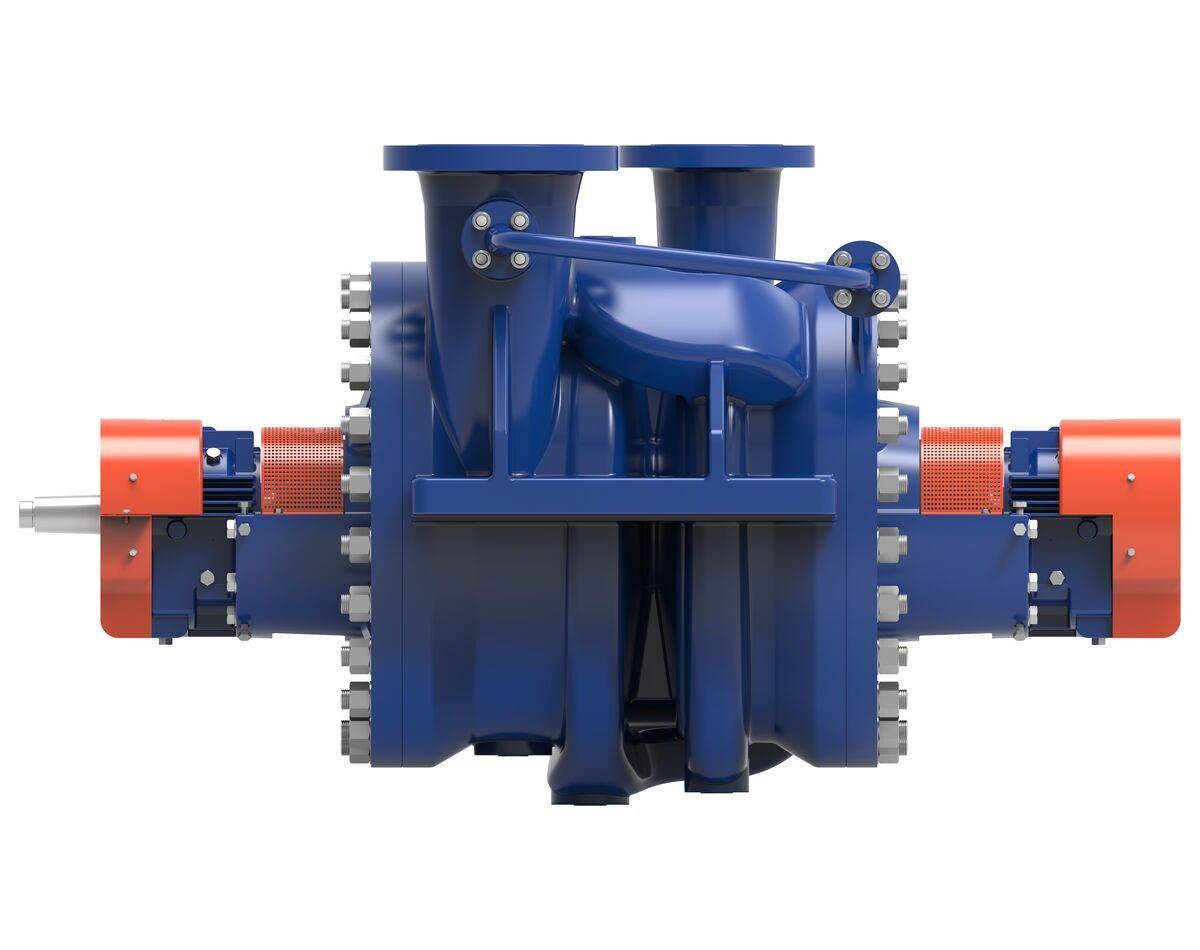

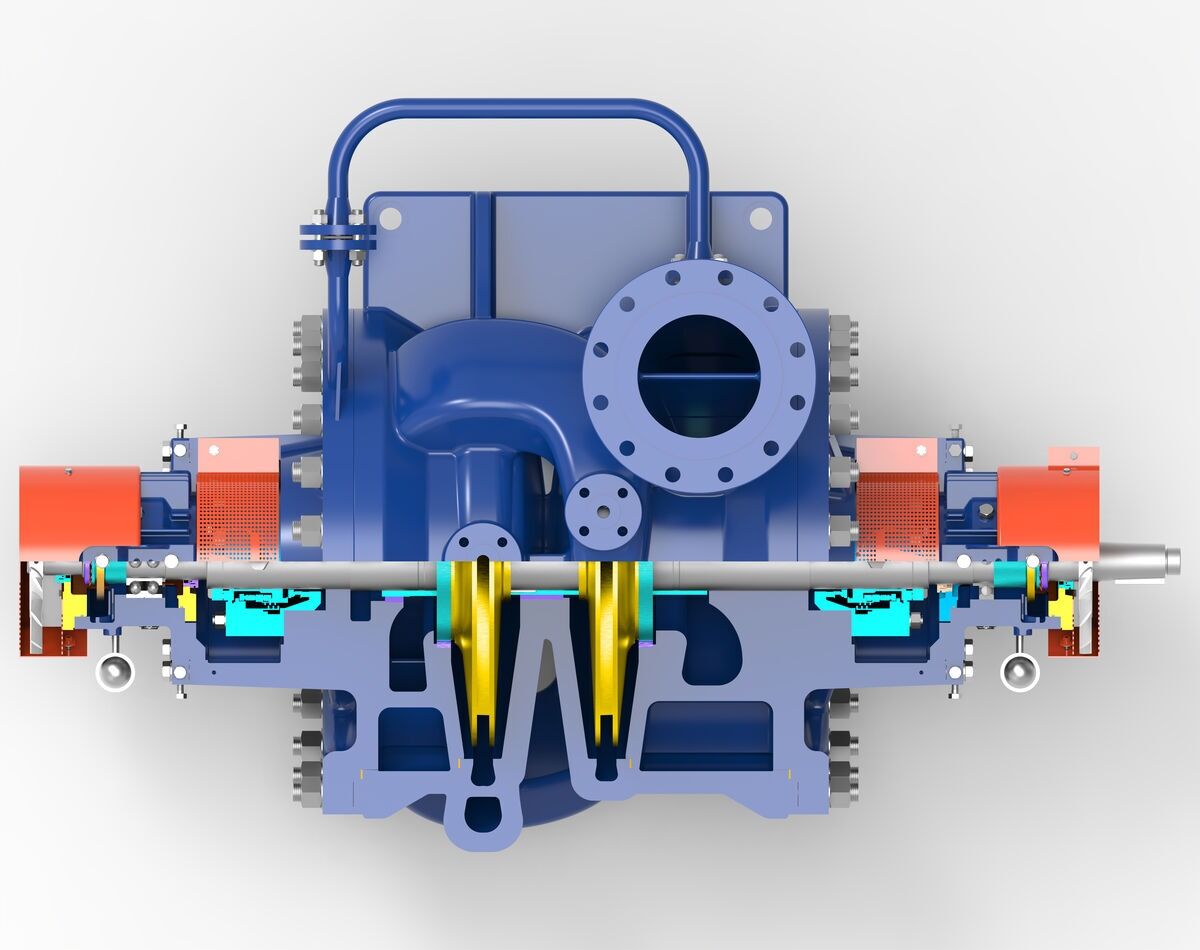

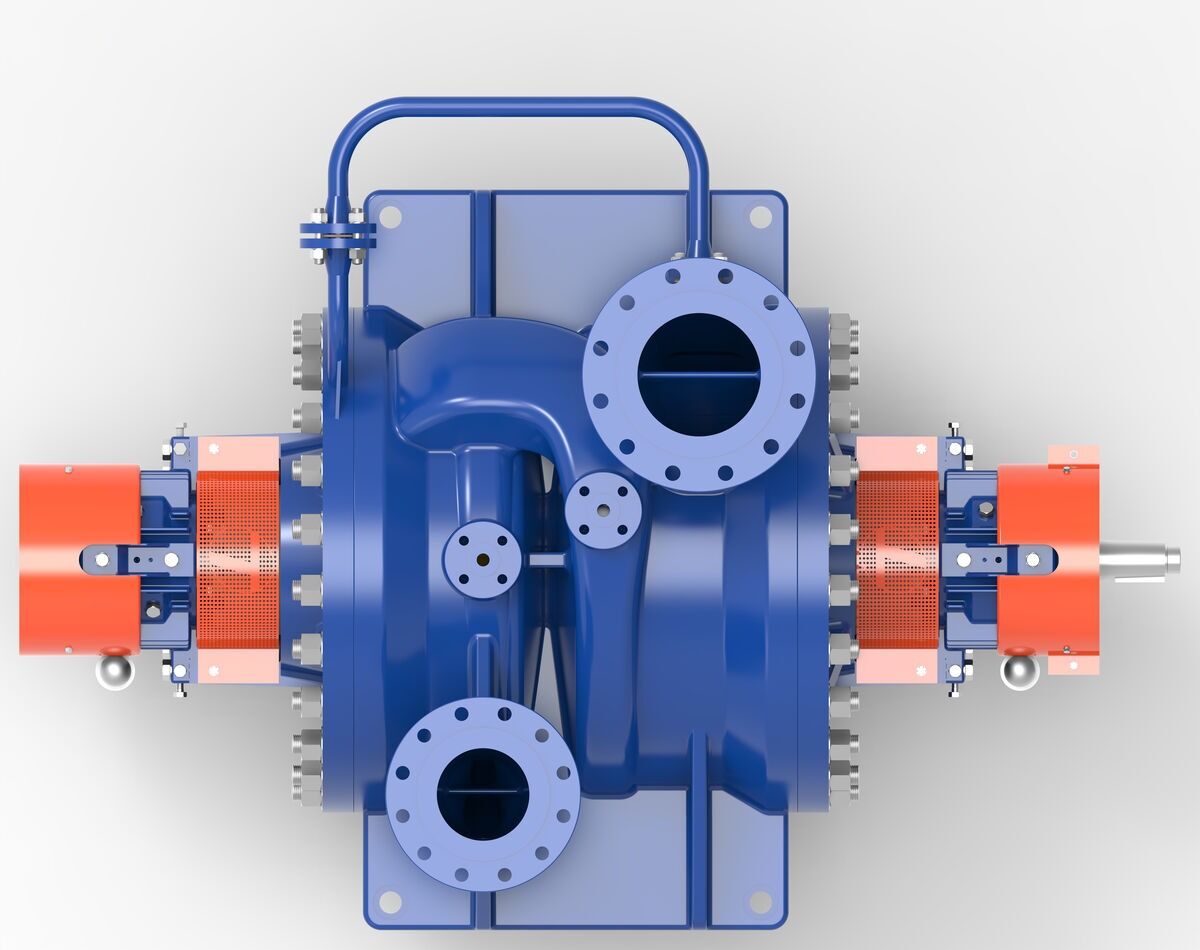

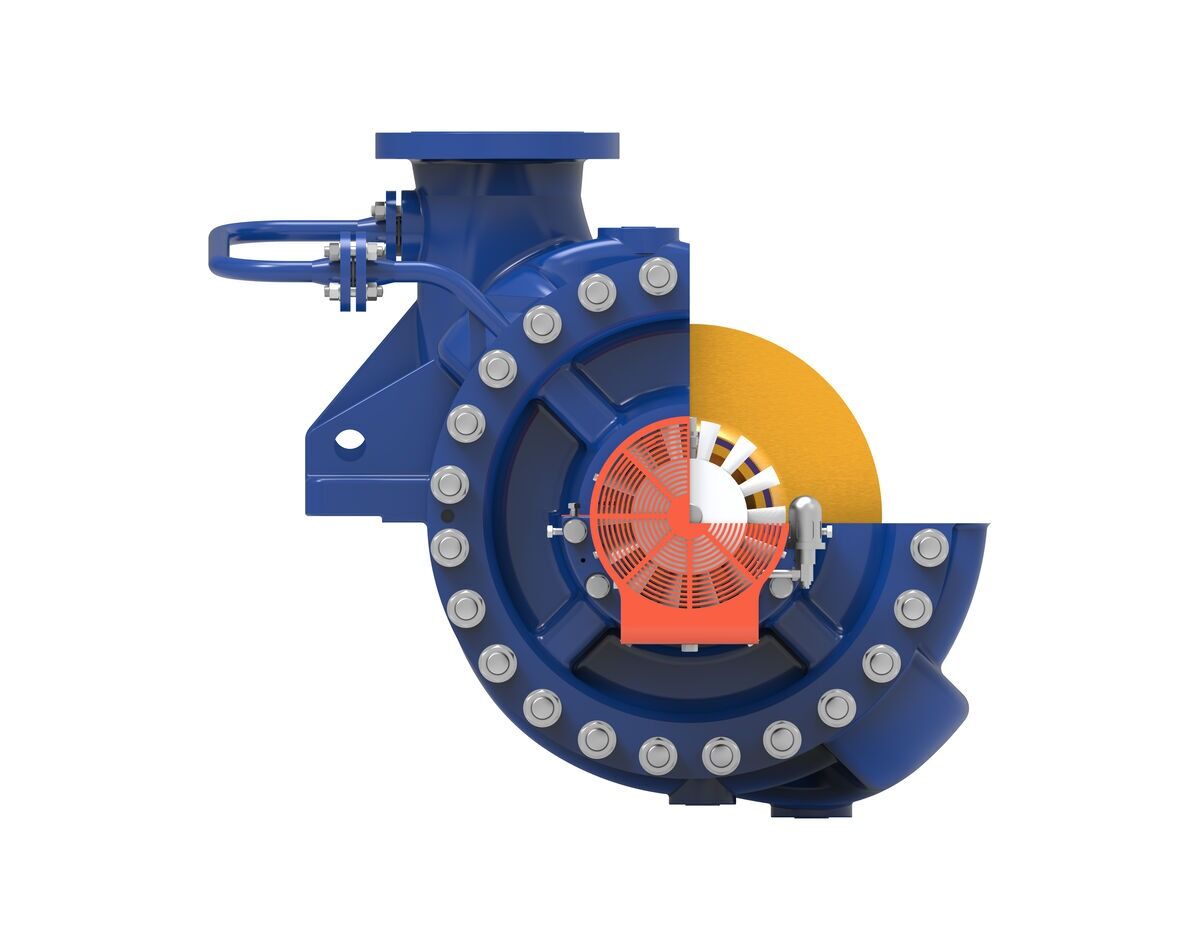

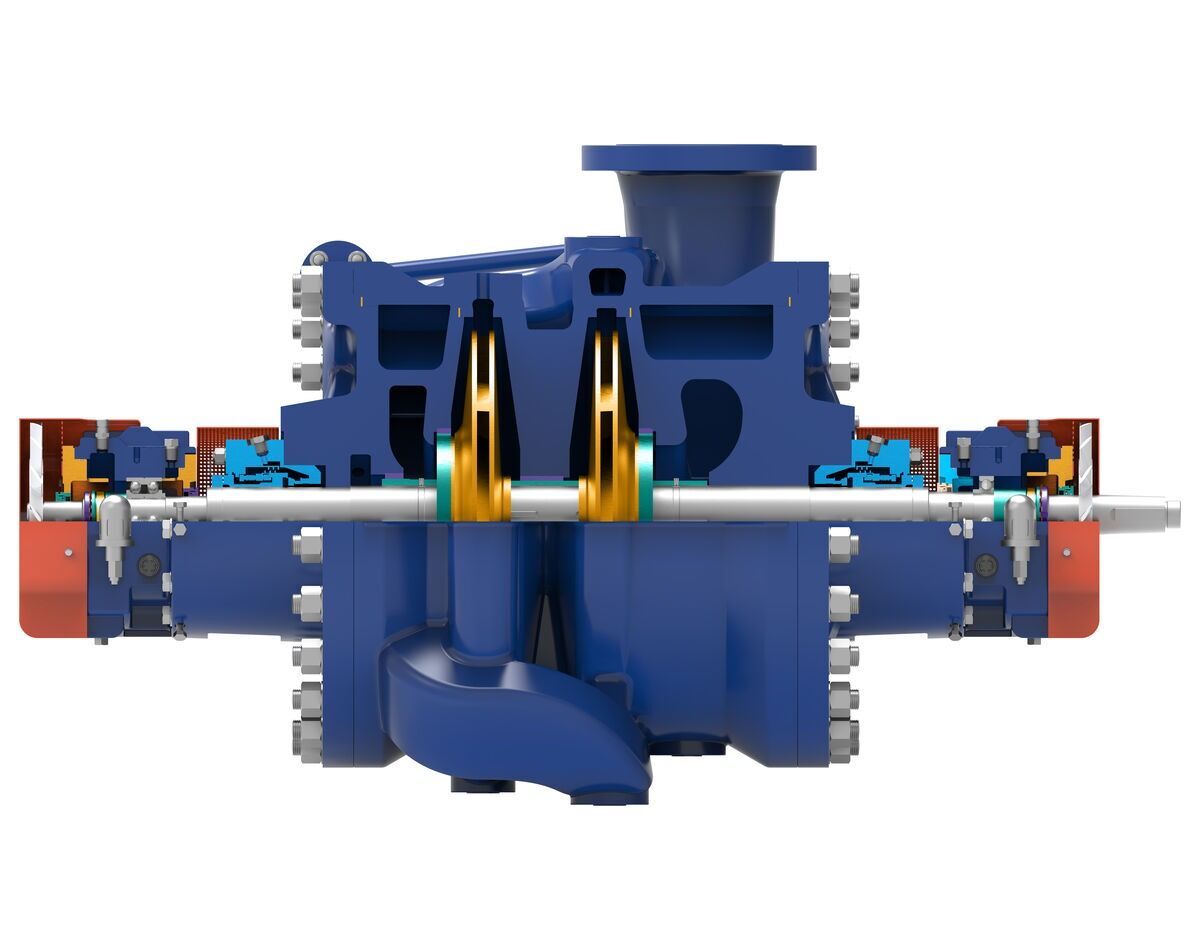

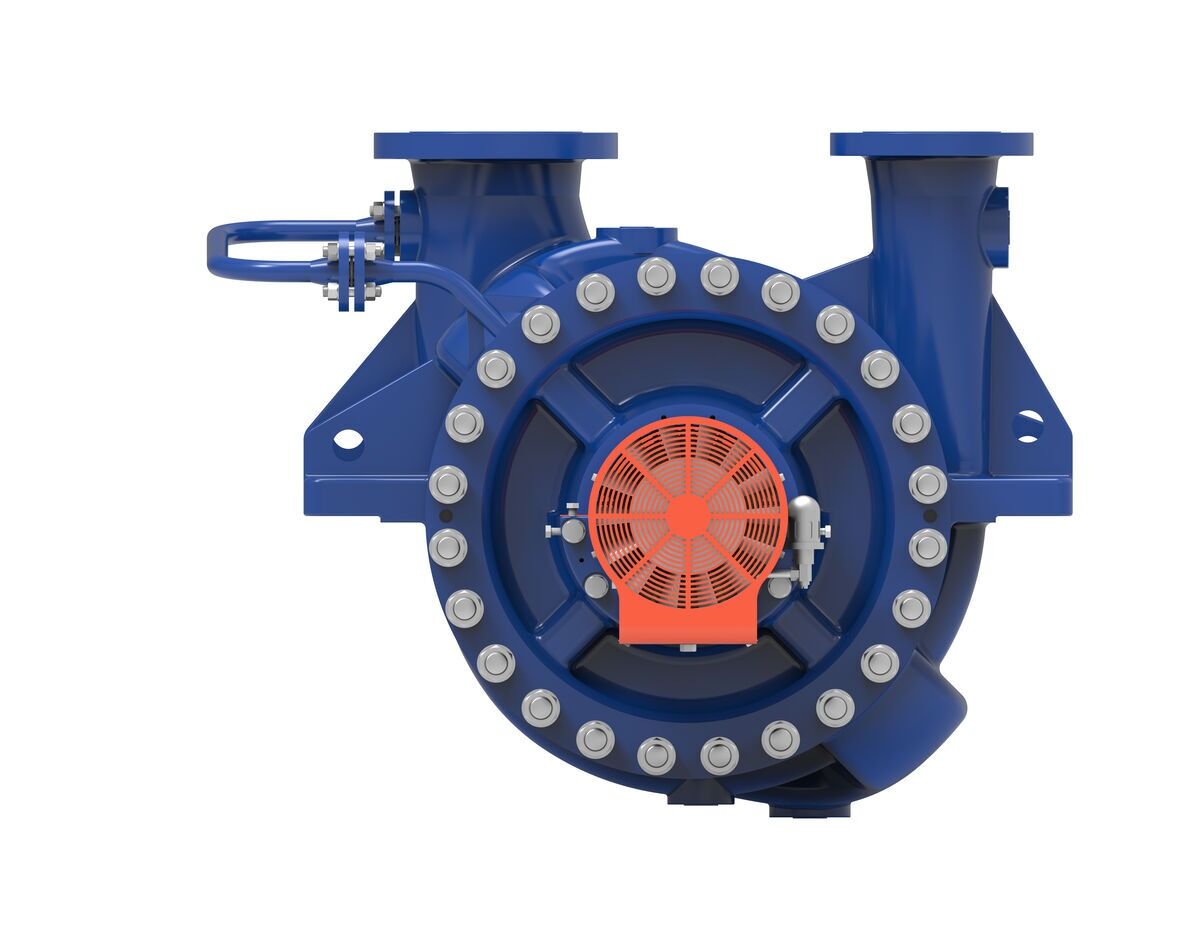

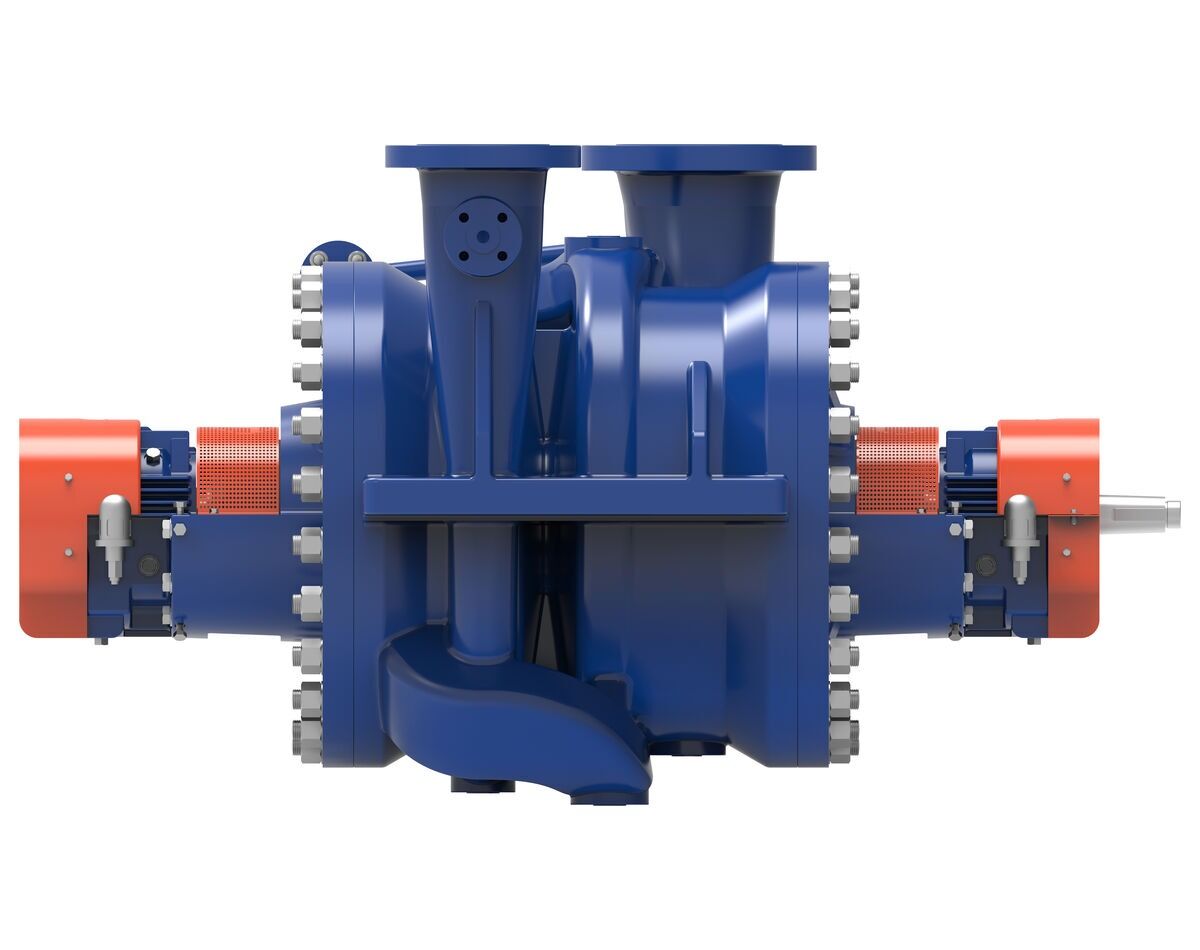

Trillium Flow Technologies updated DH & DDH pump ranges combine the engineering excellence, innovation, and heritage of our Gabbioneta Pumps® and Termomeccanica Pompe brands. Our expertise in designing and manufacturing BB2 pumps dates back to the 1960s, with thousands of units installed worldwide. This API-compliant BB2 pump range is radially split, two-stage, between-bearings, and centerline-mounted with either a single or double suction first stage impeller for reduced NPSHr.

Key Features

Fully API 610 compliant
Integral case connections to avoid non-destructive testing
Heavy-duty shaft to minimize rotor defection and maximize uptime
API 682 compliant seal chamber
Single or Double suction Impeller
Heavy-duty case suitable for 2x API nozzle loads
Bearing housing leverages common parts across all Trillium Flow Technologies between bearings pumps
Balance line to ensure both seals remain at equal pressure

Options

All API material options:
S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options
Multiple nozzle orientation configurations
API compliant bearing selections
Specialist Options: Coke Crusher, High Temperature Alignment

Main Applications

High Temperature Refining
Hydrocarbon Transfer
Boiler Feed Booster
Pipeline Applications
Vacuum Bottoms
