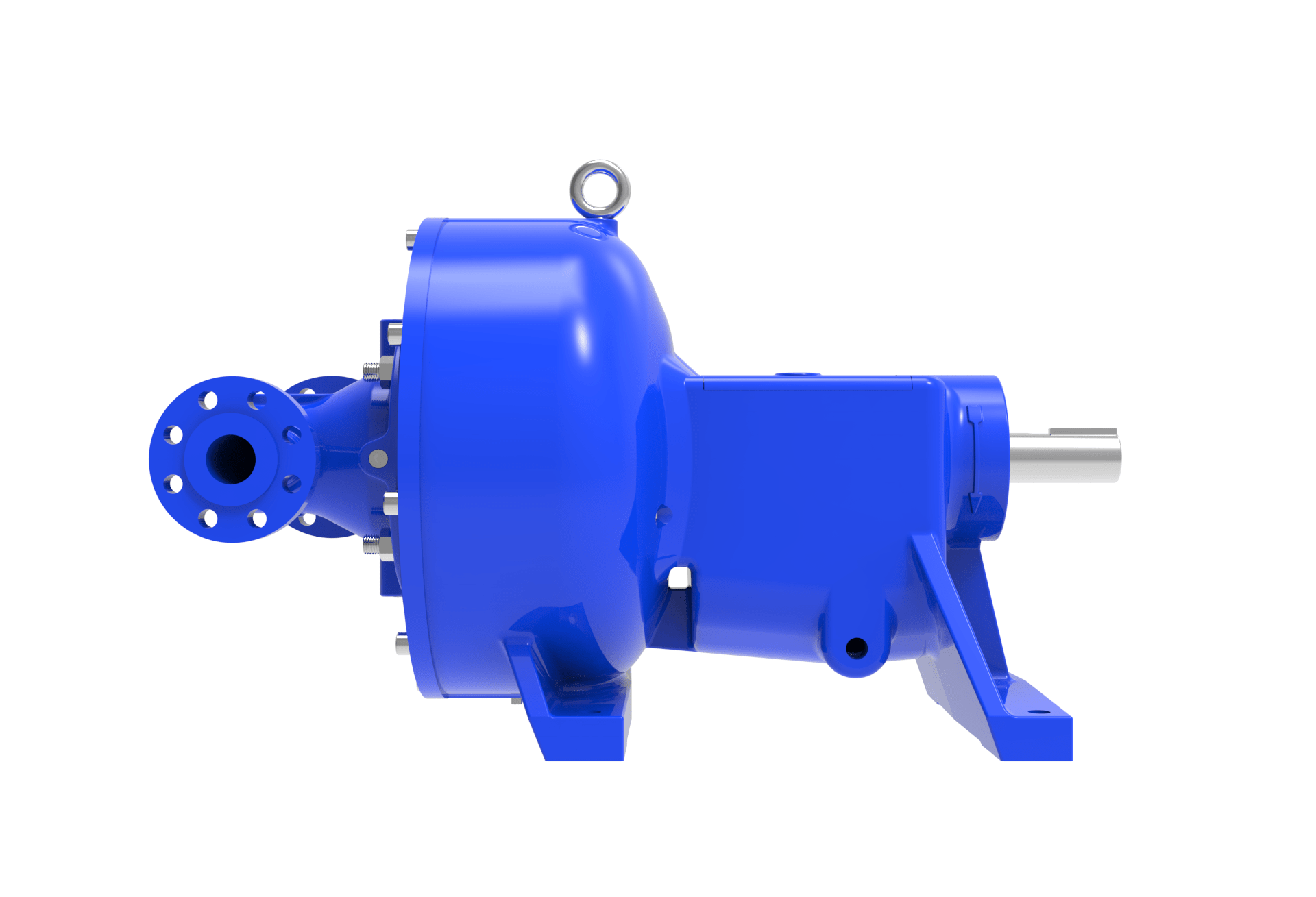

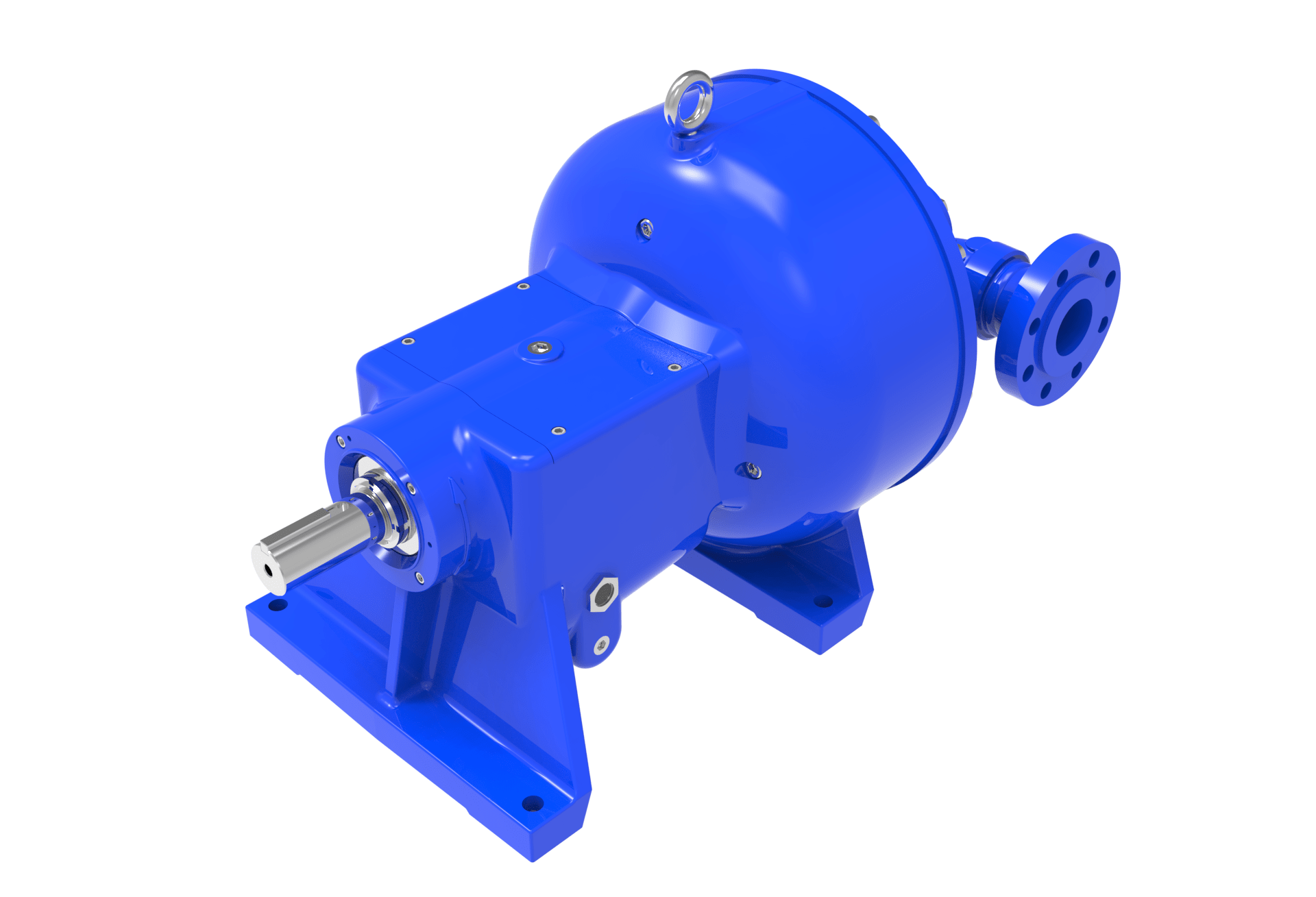

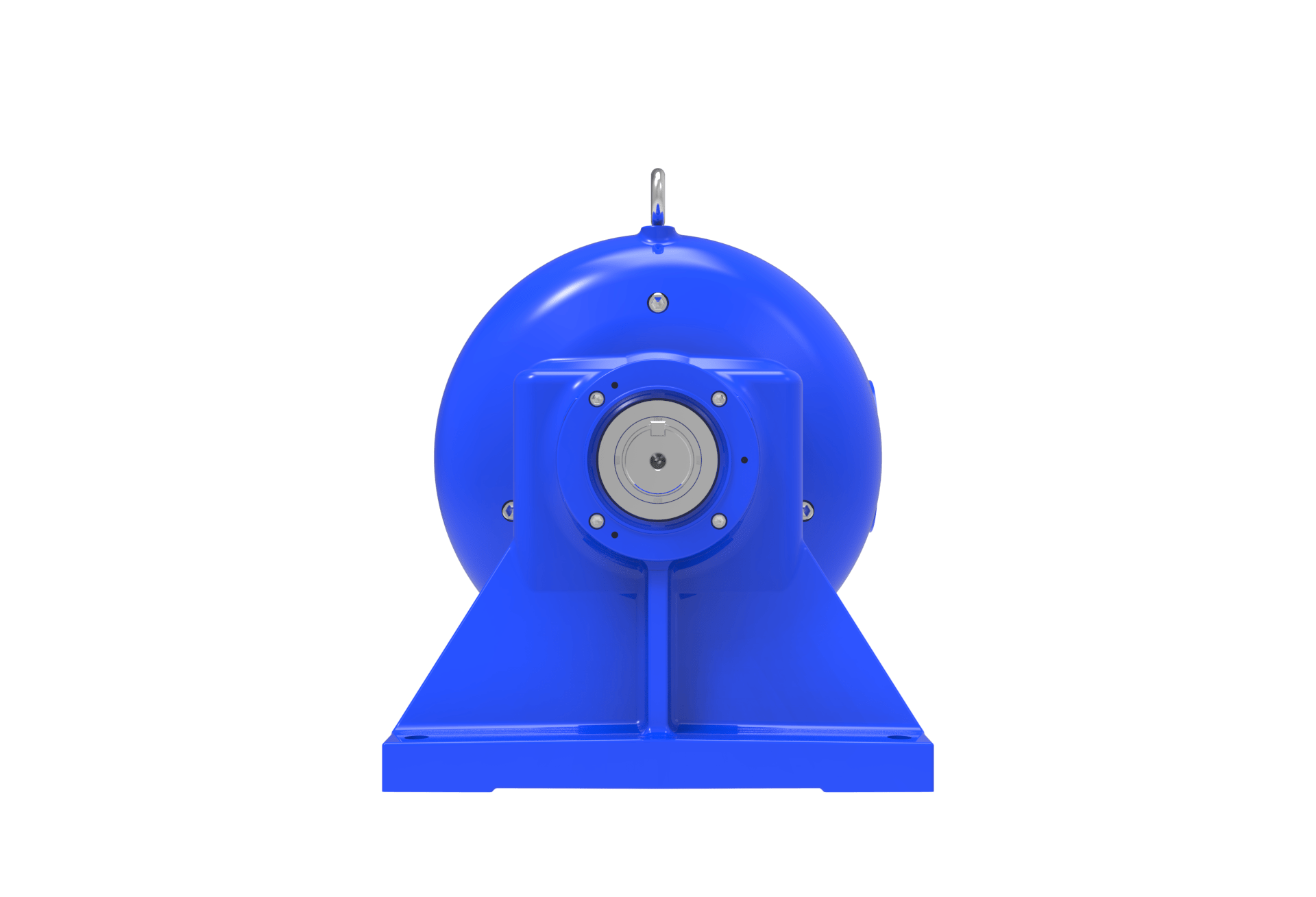

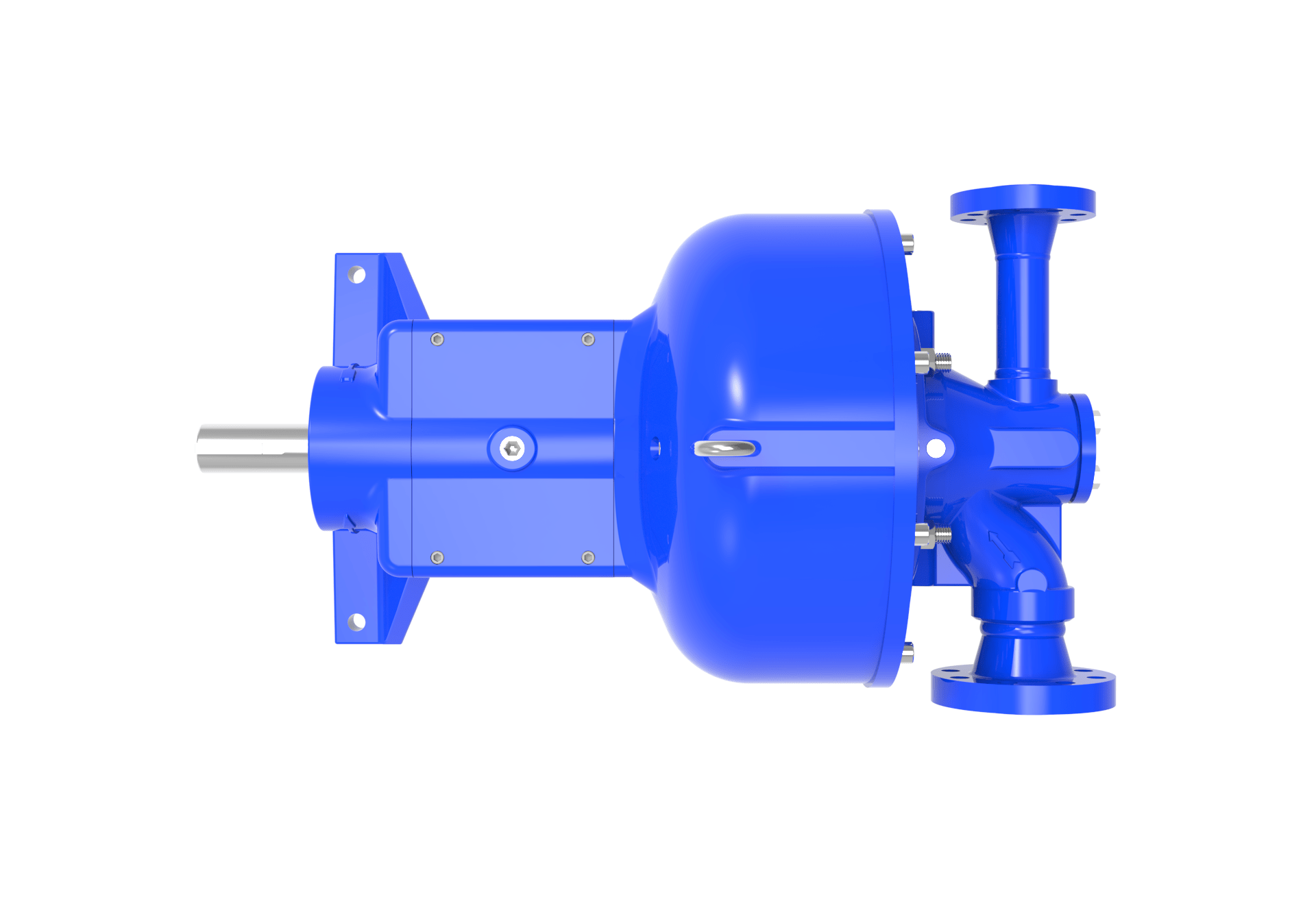

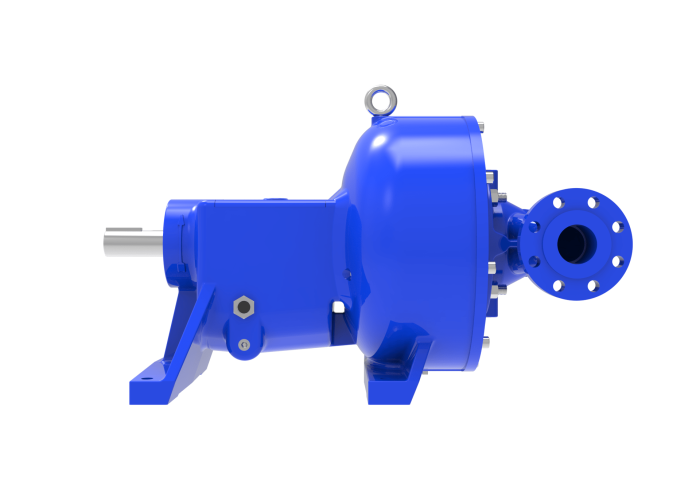

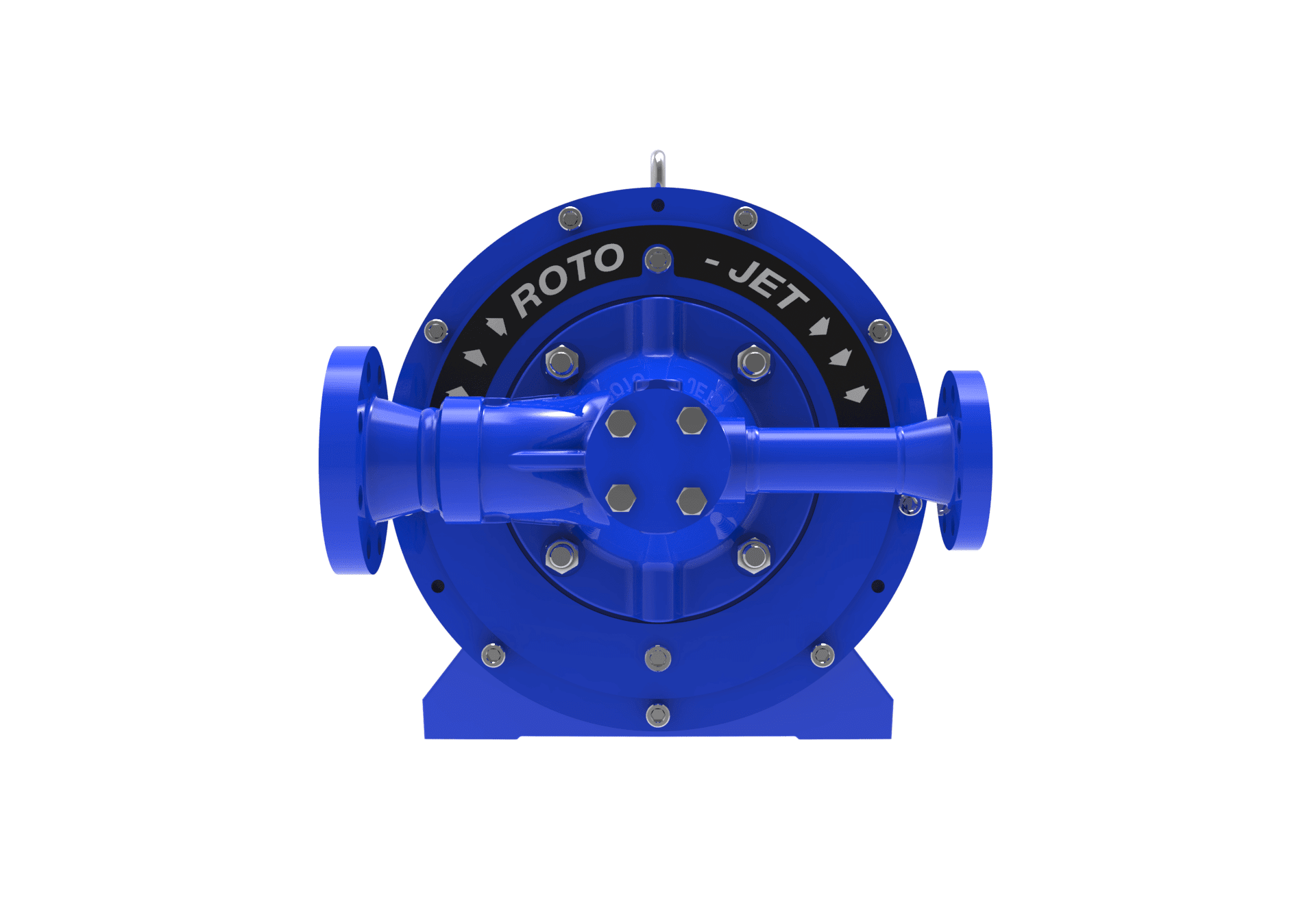

Roto-Jet pumps are high pressure single-stage centrifugal pumps using advanced pitot tube technology and are designed to handle tough applications across multiple industries.
Roto-Jet® pumps have a unique pitot tube technology that provide a more durable solution in demanding and difficult, high pressure general industrial and API applications.

KEY FEATURES/BENEFITS

High pressure without high speed
Adjustable performance with change in pitot tube
Only two basic working parts for simplicity
Hydraulically stable along the entire performance curve
API 610 design available

APPLICATIONS

Boiler feed
Central cleaning systems
Water injection
High pressure spraying
API

SIZE RANGE/ DIMENSIONS

1.5 to 3 in (38 to 76 mm)

TEMPERATURE RANGE

32ºF to 550ºF (0ºC – 288ºC)

CAPACITY – HEAD

to 5500 ft. (1676 m) Flow: to 750 gpm (170 m³/hr)

MATERIALS

Roto: Ductile iron
Stainless steel
CA6NM
CD4MCu
