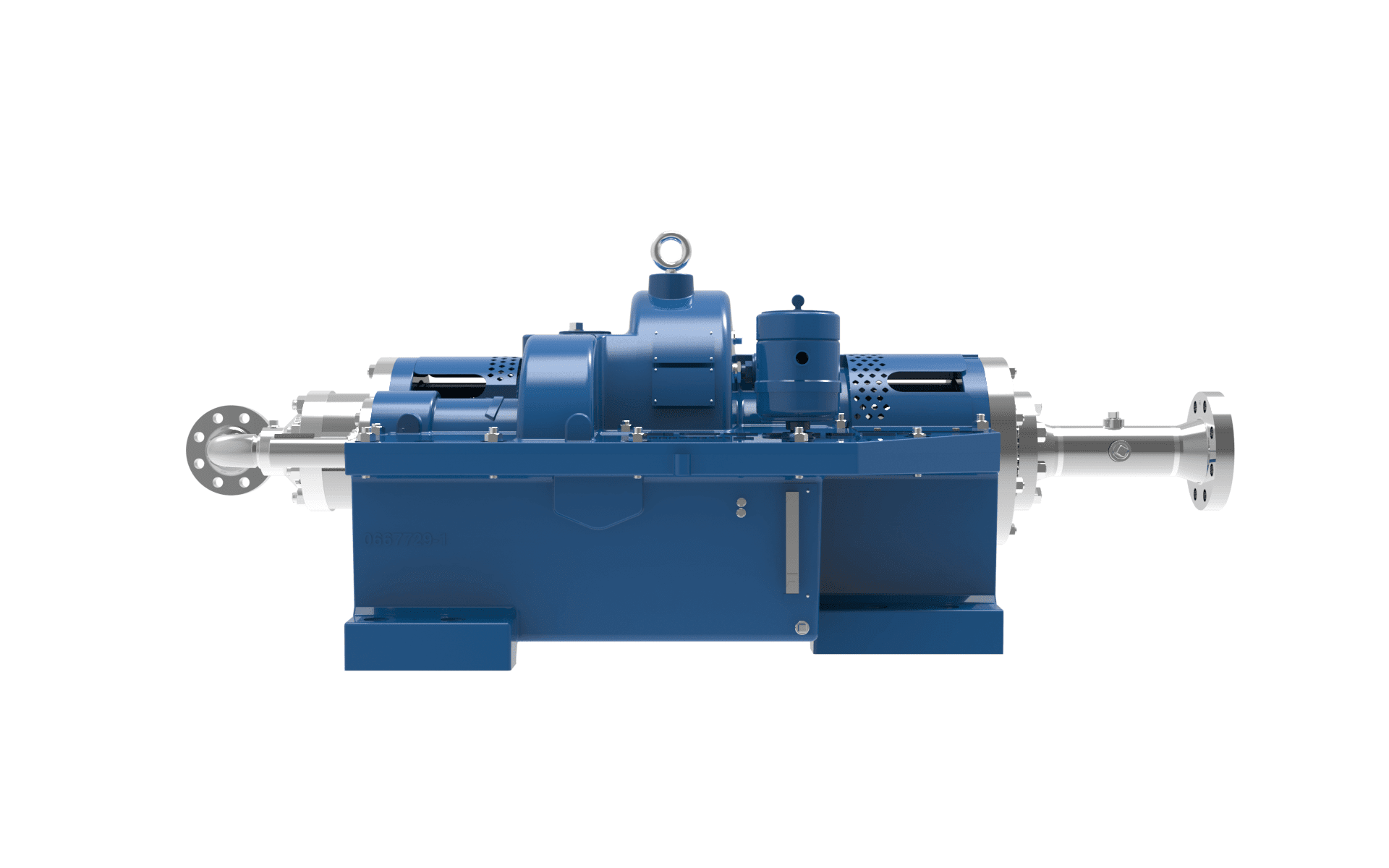

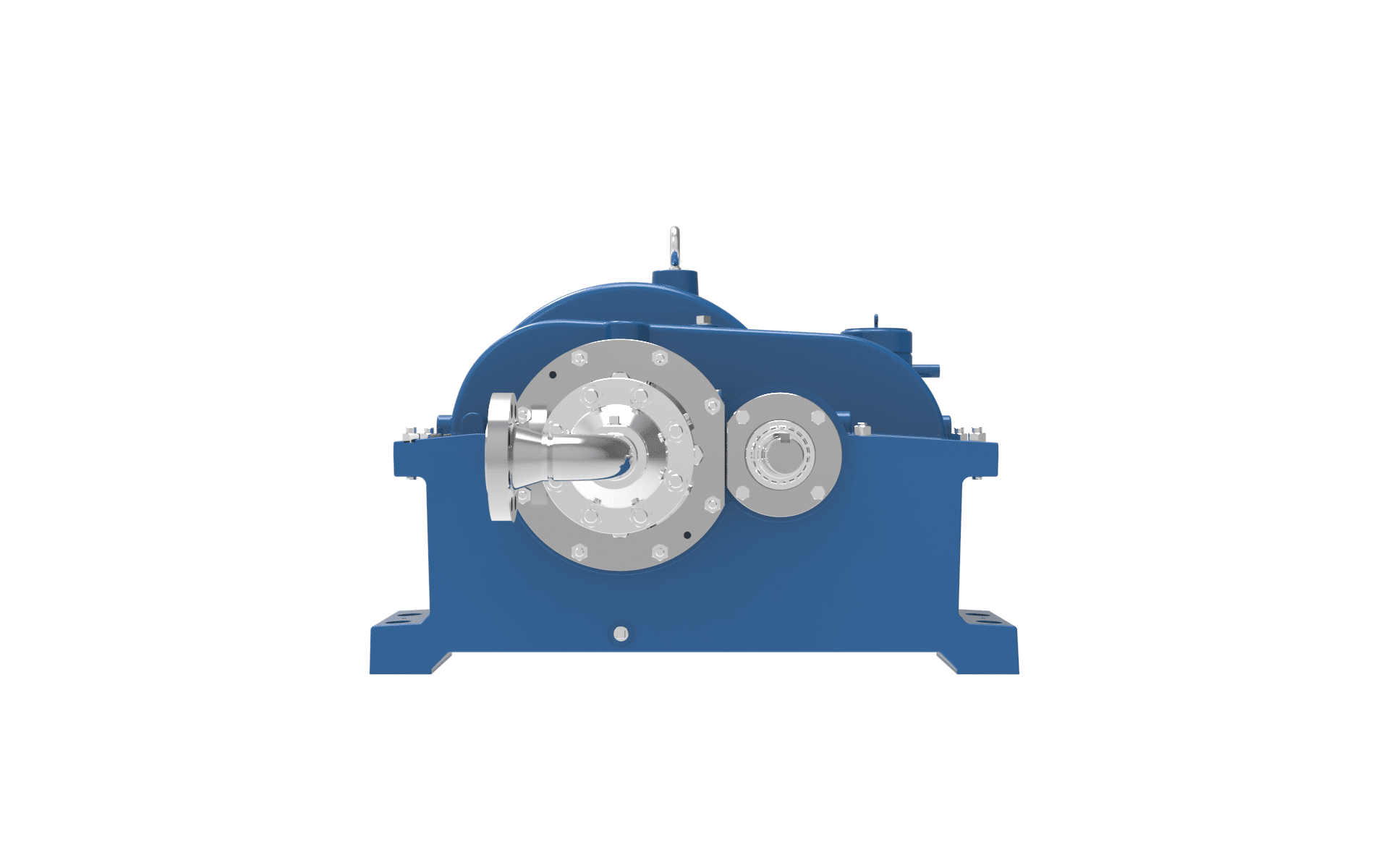

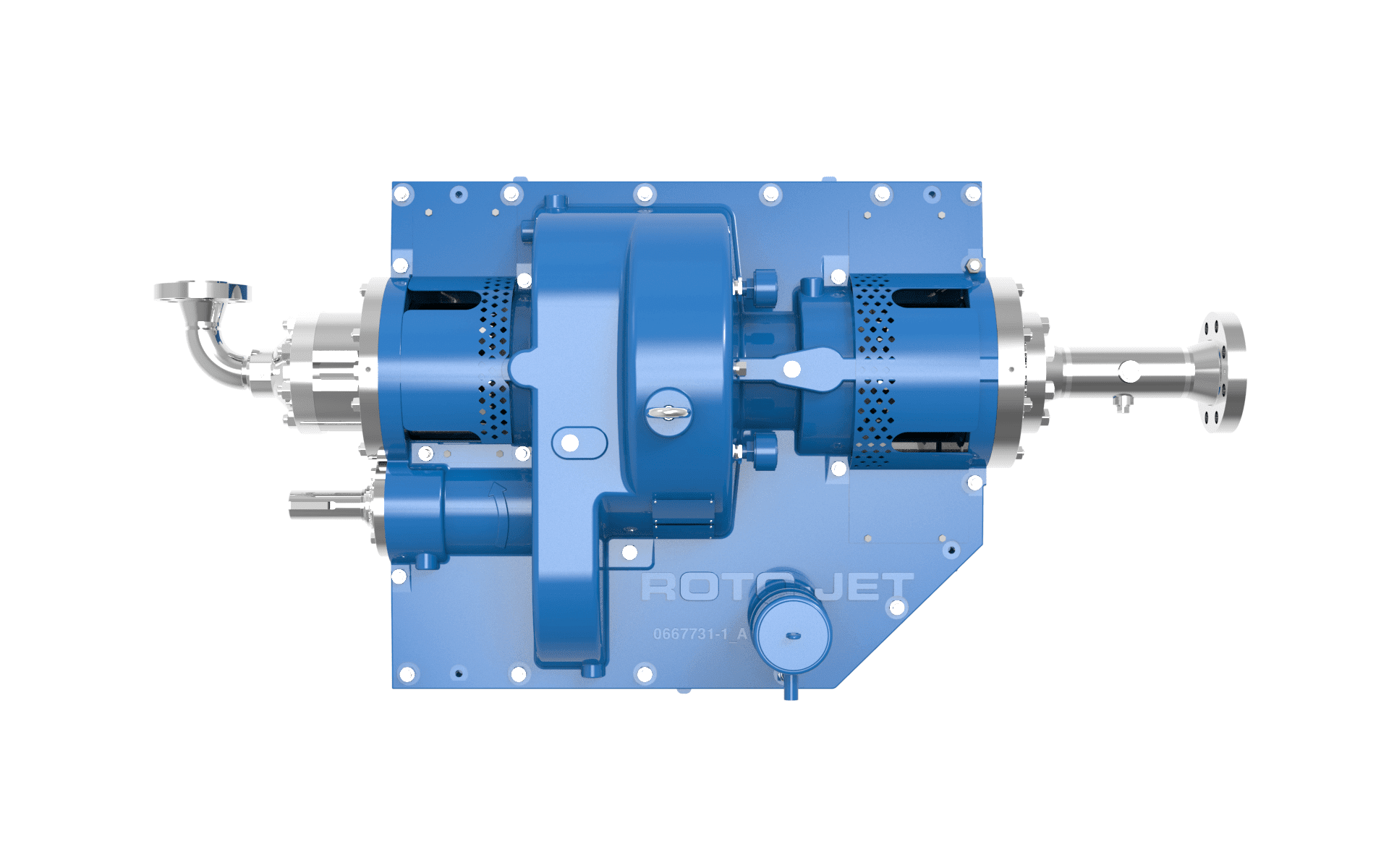

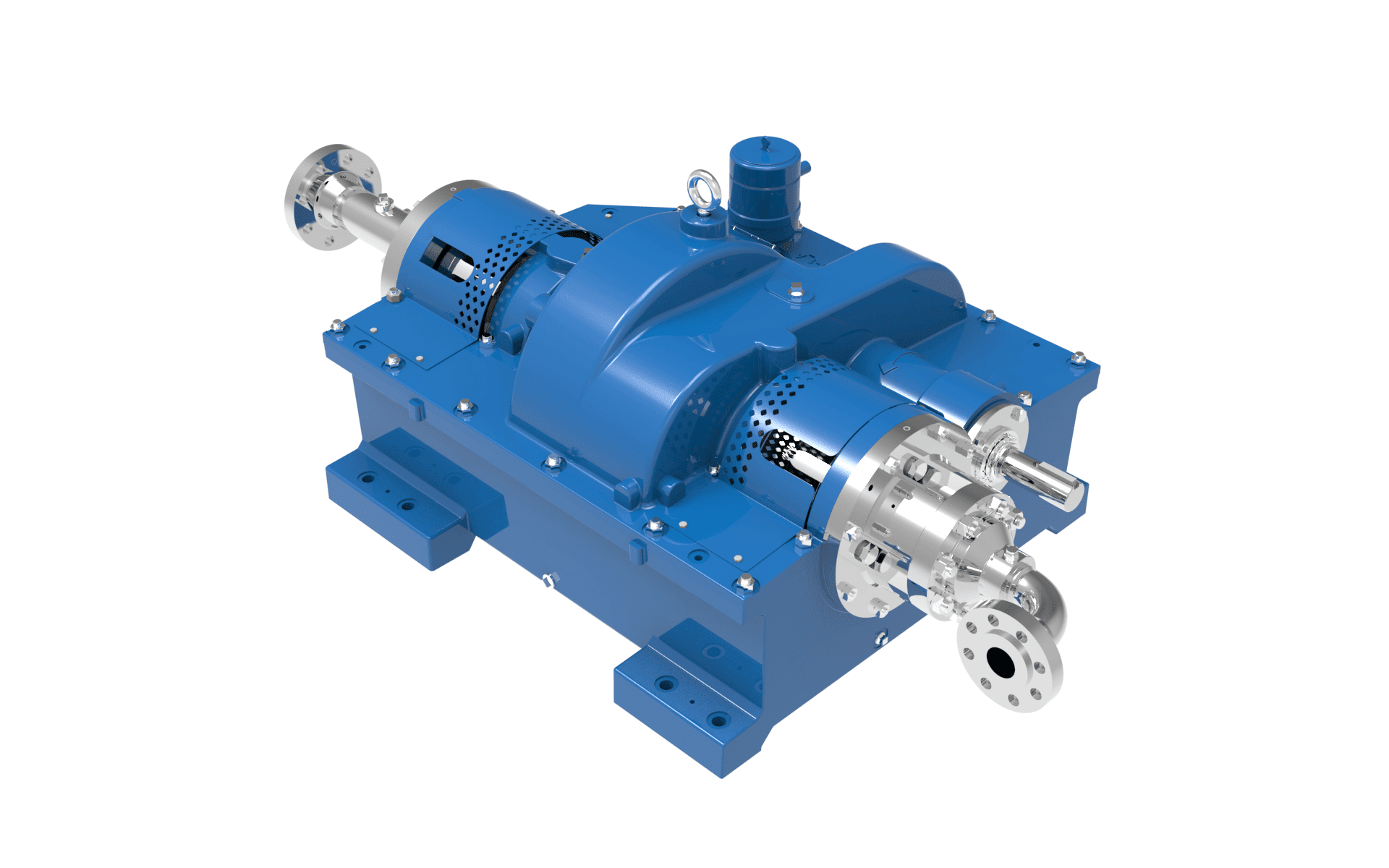

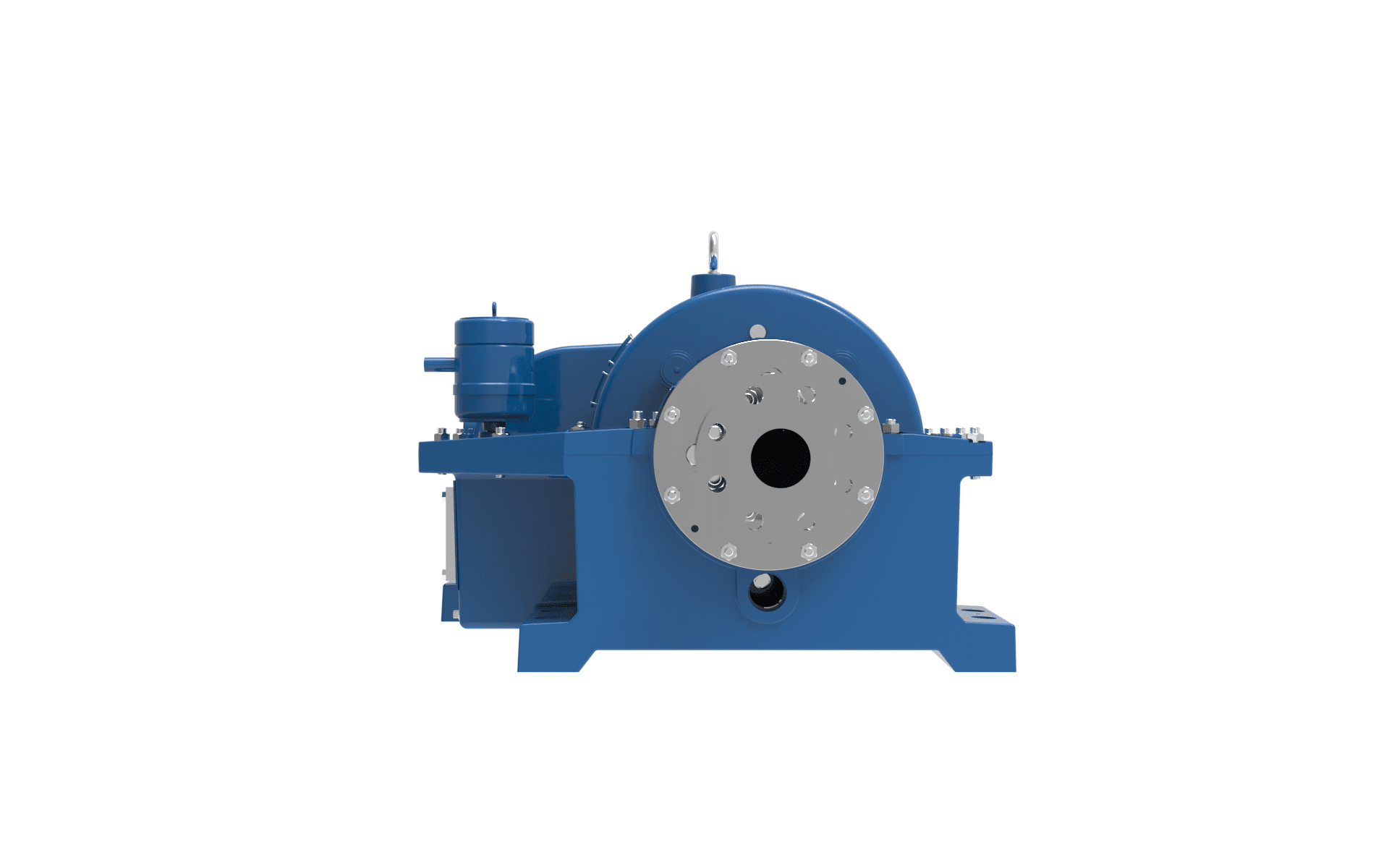

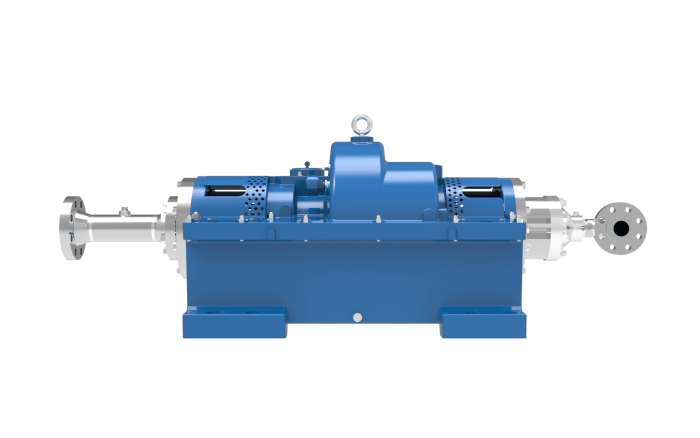

The Roto-Jet® RO-FT API 610 pump was designed specifically for demanding low-flow, high-head services, and fully meets the requirements of API 610. The RO-FT between-bearing configuration provides a reliable, robust, and easy to maintain pump for the midstream and downstream refining, petrochemical, and chemical processing industries.

The operating characteristics of the Roto-Jet® RO-FT API 610 pump are similar to a conventional centrifugal pump. Energy is added to the fluid via the rotor, and the stationary Pitot tube converts the fluid velocity energy into static pressure.

In addition, the Roto-Jet® RO-FT API 610 pump is specifically designed to achieve a broad operating range. These attributes result in improved mechanical seal and bearing life to maximize Mean Time Between Failure, and decrease operational and maintenance costs, which make the Roto-Jet® the most cost effective choice for low-flow, high head process applications.

KEY FEATURES & BENEFITS

API 610 11th Edition compliant
Standard API 682 cartridge seals
No external lube system required
No wear rings or close running clearances
Low NPSH3 without the use of an inducer
Robust design is insensitive to process upsets
Pulsation free flow over the entire head-flow curve
Integral gearbox is isolated from process seal leakage
Reduced life cycle cost by optimizing hydraulic efficiency
Process seals exposed only to suction pressure to maximize seal life
Between bearings arrangement minimizes shaft deflection at the seals
Bearing L10 life exceeds API 610 requirements using rolling element bearings
Patented rotor eliminates radial and axial thrust as a function of flow rate and suction pressure
High heads achieved in a single stage at low operating speeds compared to other low-flow
High-head pumps

APPLICATIONS

Caustics processing
Amine treating
Reflux streams
Transfer services
Boiler feed
NaphthaWash water
Reactor feed
Condensate and well injection
Boiler feed water
Foul water
Diesel
Gasoline
Kerosene
Sour water
Depropanizer
Deethanizer

TEMPERATURE RANGE

Up to 550ºF (290ºC)

CAPACITY – HEAD

Up to 5,000 ft. (1,500 m) Flow: up to 450 gpm (102 m³/h)

MATERIALS – ROTOR

Carbon Steel (A216 WCB)
12% CR (A487 CA6NM)
316 AUS (A351 CF3M)
Duplex (A890 CD4MCu)

FLANGES

Carbon Steel (A216 WCB)
316 AUS (A351 CF3M)

SHAFT ASSEMBLY

Carbon Steel (A216 WCB)
316 AUS (A351 CF3M)

INPUT SHAFT

4140 Carbon Steel (A193)

PITOT TUBE

17-4-PH Stainless Steel (A564) or Inconel 718

GEAR CASE MATERIAL

Carbon Steel (A216 WCB)
