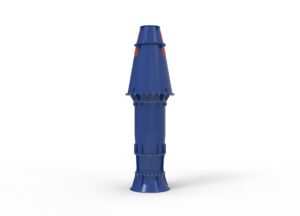

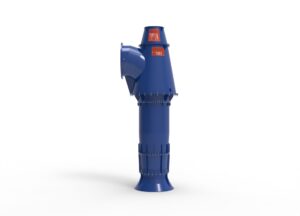

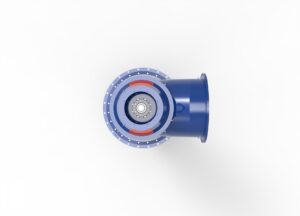

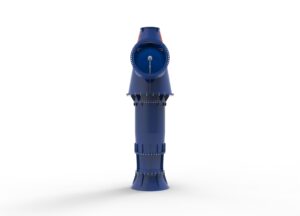

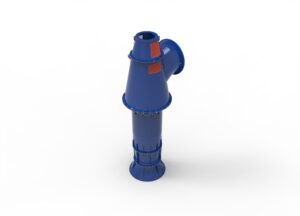

Termomeccanica Pompe EV pumps have a vertical or inclined propeller and are suitable for pumping large flow rates at low pressure on wet pit applications. A wide range of hydraulics are available in combination with a variety of materials and construction options to meet any special service requirement. Adjustable impeller vanes or inlet guide vane designs are also available (EVR model). On large size pumps, pull out design is recommended for easy maintenance.
OPERATING RANGE
Capacity up to 130,000 m³/h (572,400 gpm)
Head up to 15 m (49 ft.)
Pressure up to 2 bar (29 psig)
Temperature up 50°C (120°F)
MAIN APPLICATIONS
River intake
Irrigation
Land reclamation & flood control
Water treatment
Cooling water
Dry docks
Storm & drain water services
