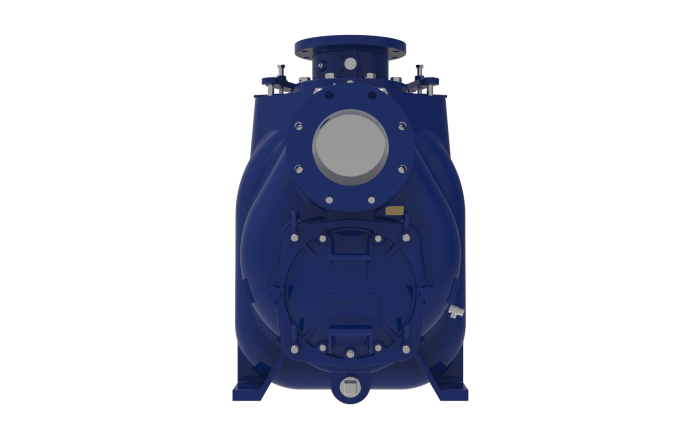

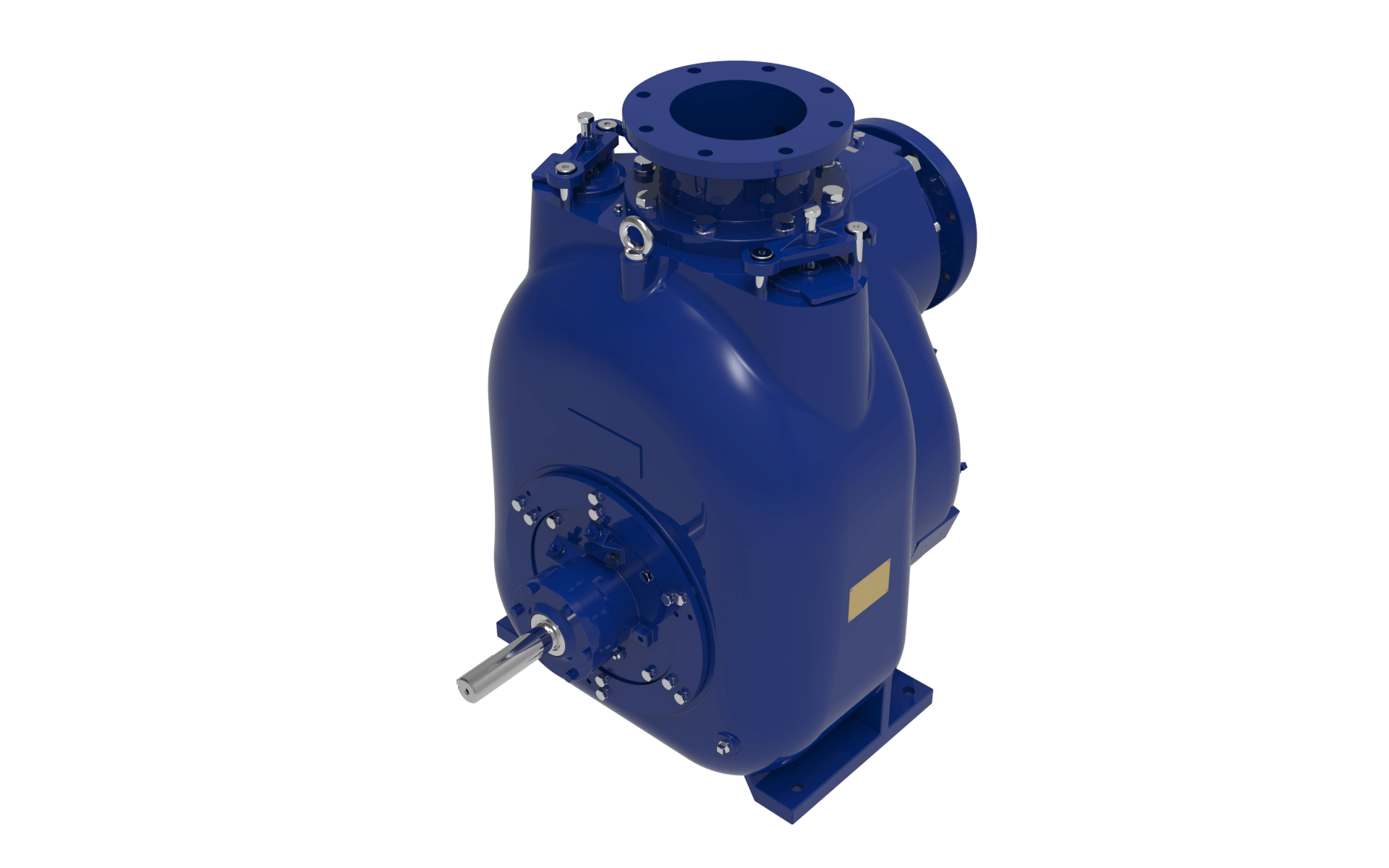

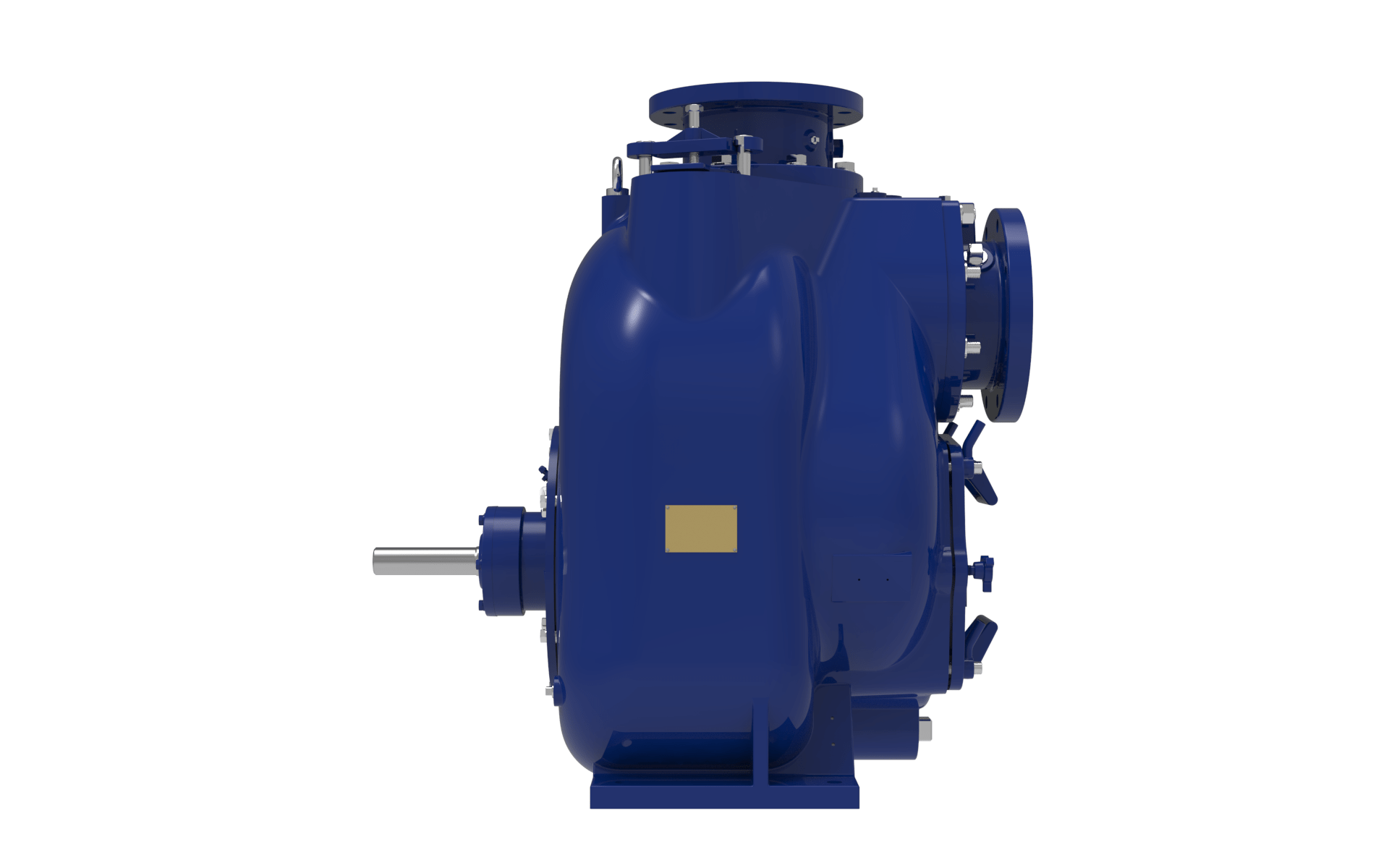

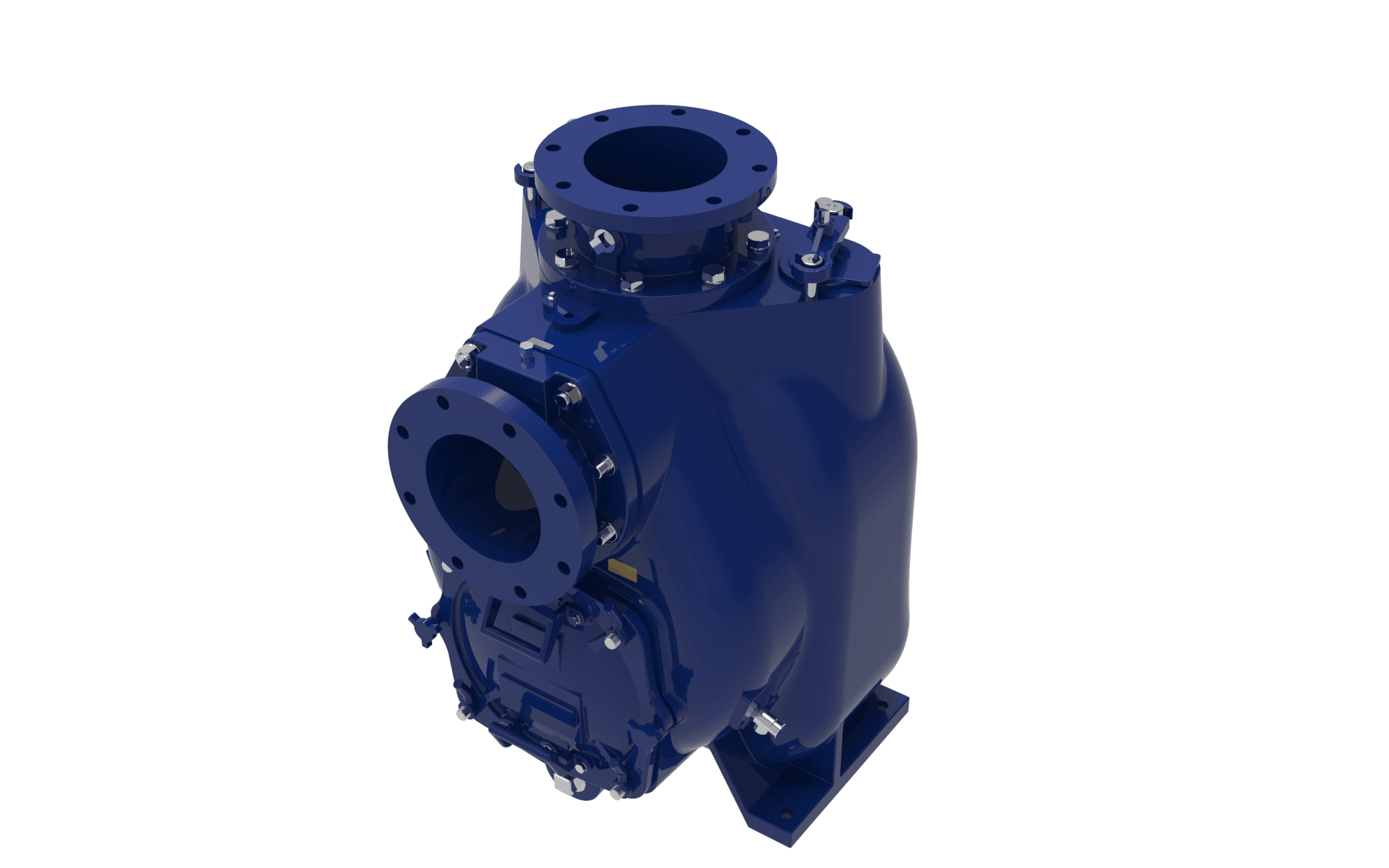

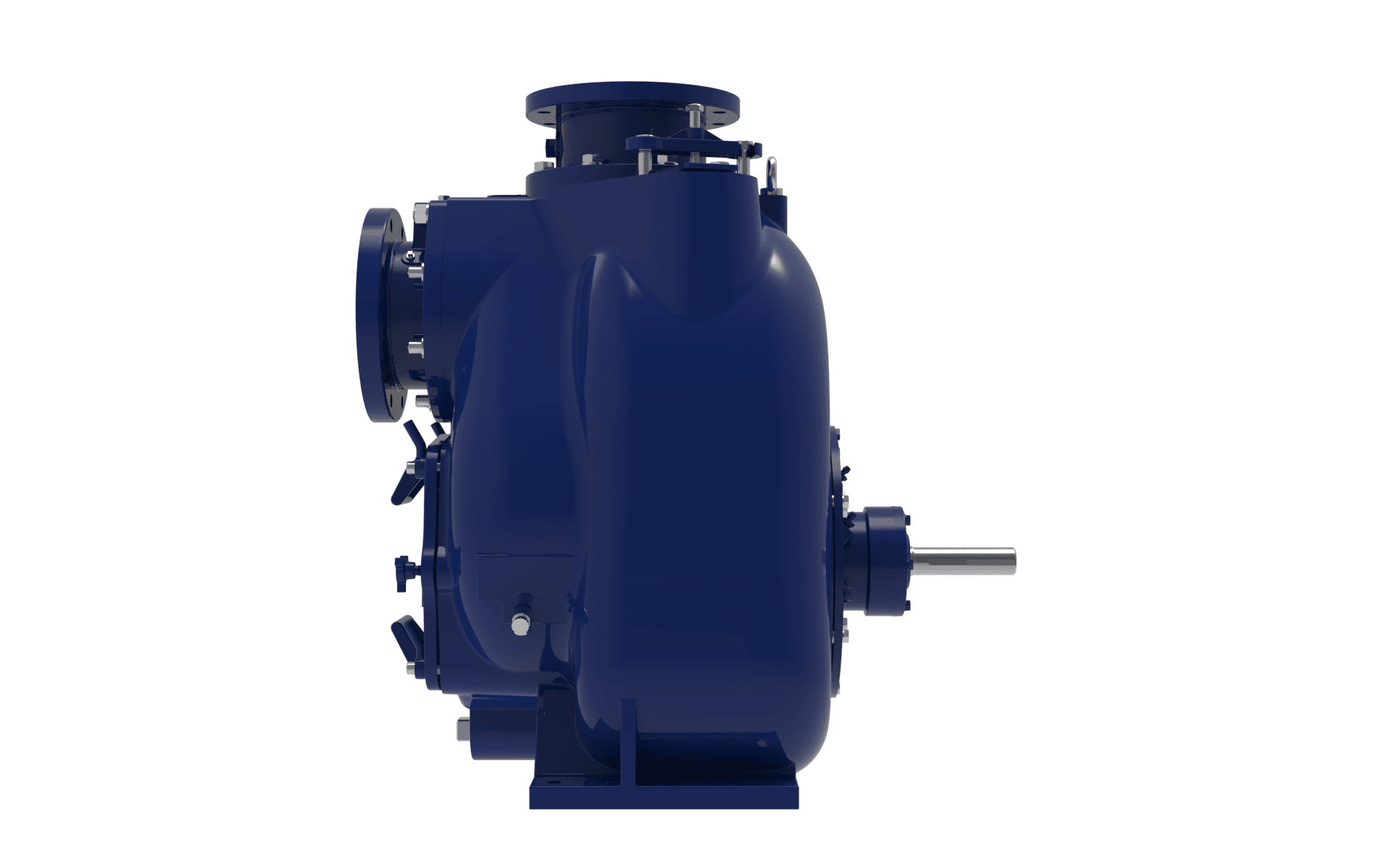

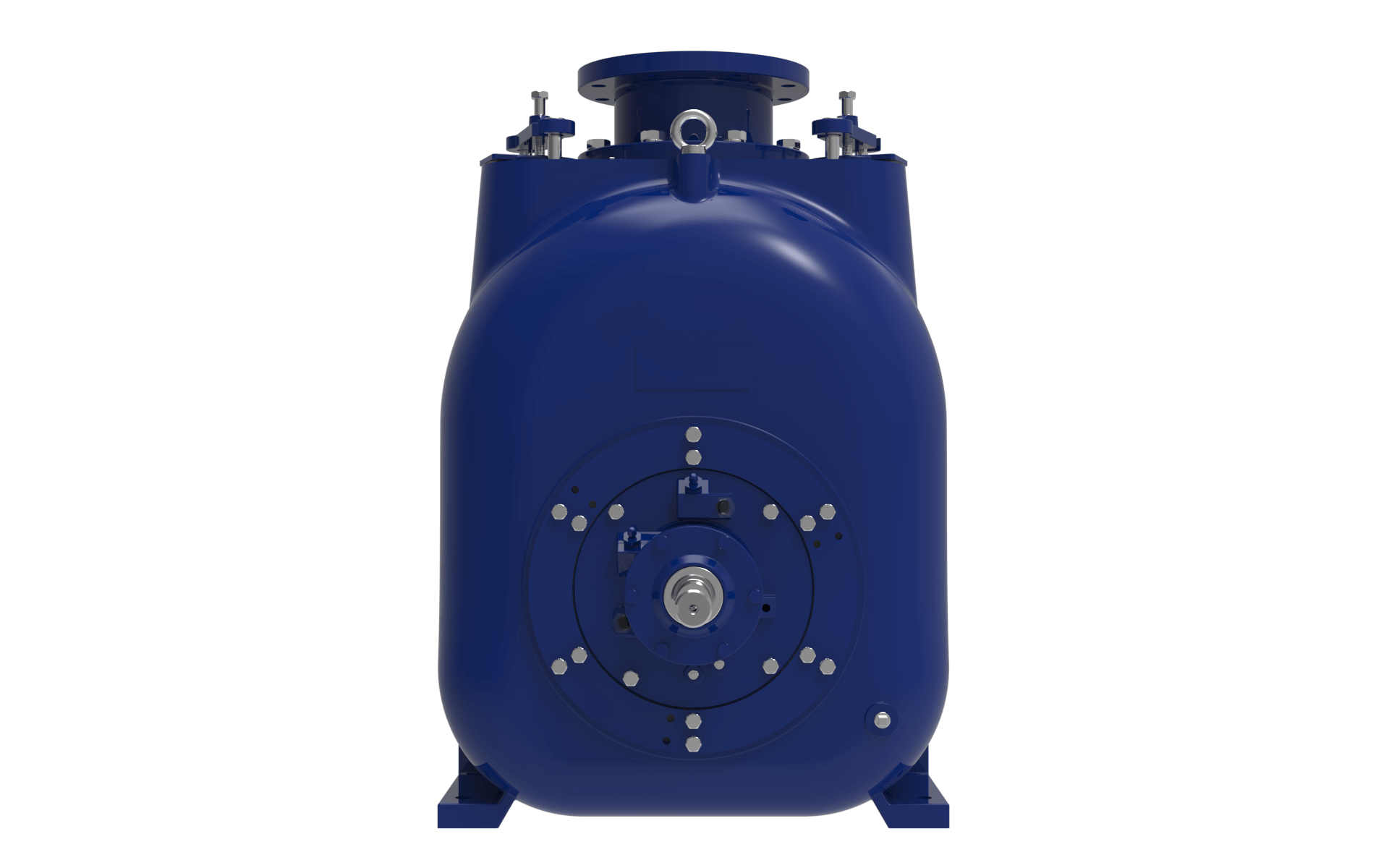

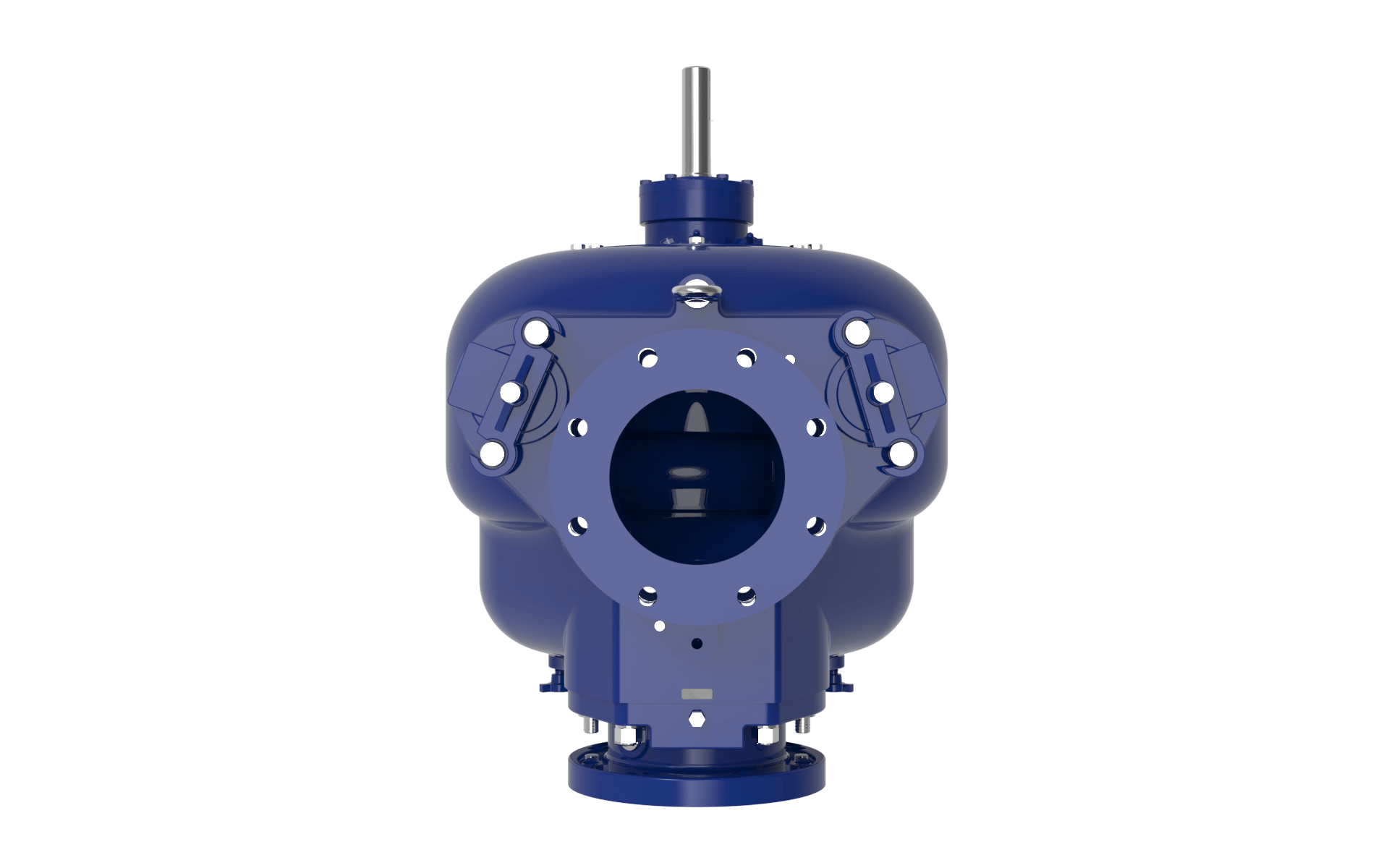

The WSP™ Self-Primer pump is a rugged and dependable self-priming, solids handling, trash pump. Distinguishable from our competitors, the WSP™ Self-Primer pump design allows for a shim-less, tool-less impeller adjustment and ease of suction flap valve replacement.

APPLICATIONS

Municipal and industrial wastewater
Automotive
Metal machining
Beef, pork, & poultry processing
Production & manufacturing
Pulp & paper
Dewatering
Tanker truck unloading
Mining & minerals
Drilling mud recovery
Winery
Food & beverage

KEY FEATURES & BENEFITS

Self-priming
Buzzsaw™ wear plate
Fill Port Cover & Clamp Bar Assembly

SIZE RANGE & DIMENSIONS

2, 4, 6, 8, & 10 inch

HIGH HEAD

3, 4, & 6 inch

TEMPERATURE RANGE

32ºF – 180ºF (0ºC – 83ºC)

CAPACITY HEAD

103 – 250 ft (31 – 76 m)

FLOW

225 – 3,200 gpm (51 – 727 m³/h)

MATERIALS CASE

Ductile iron, CD4MCu

IMPELLER

Cast steel, Hi-Chrome, CD4MCu
