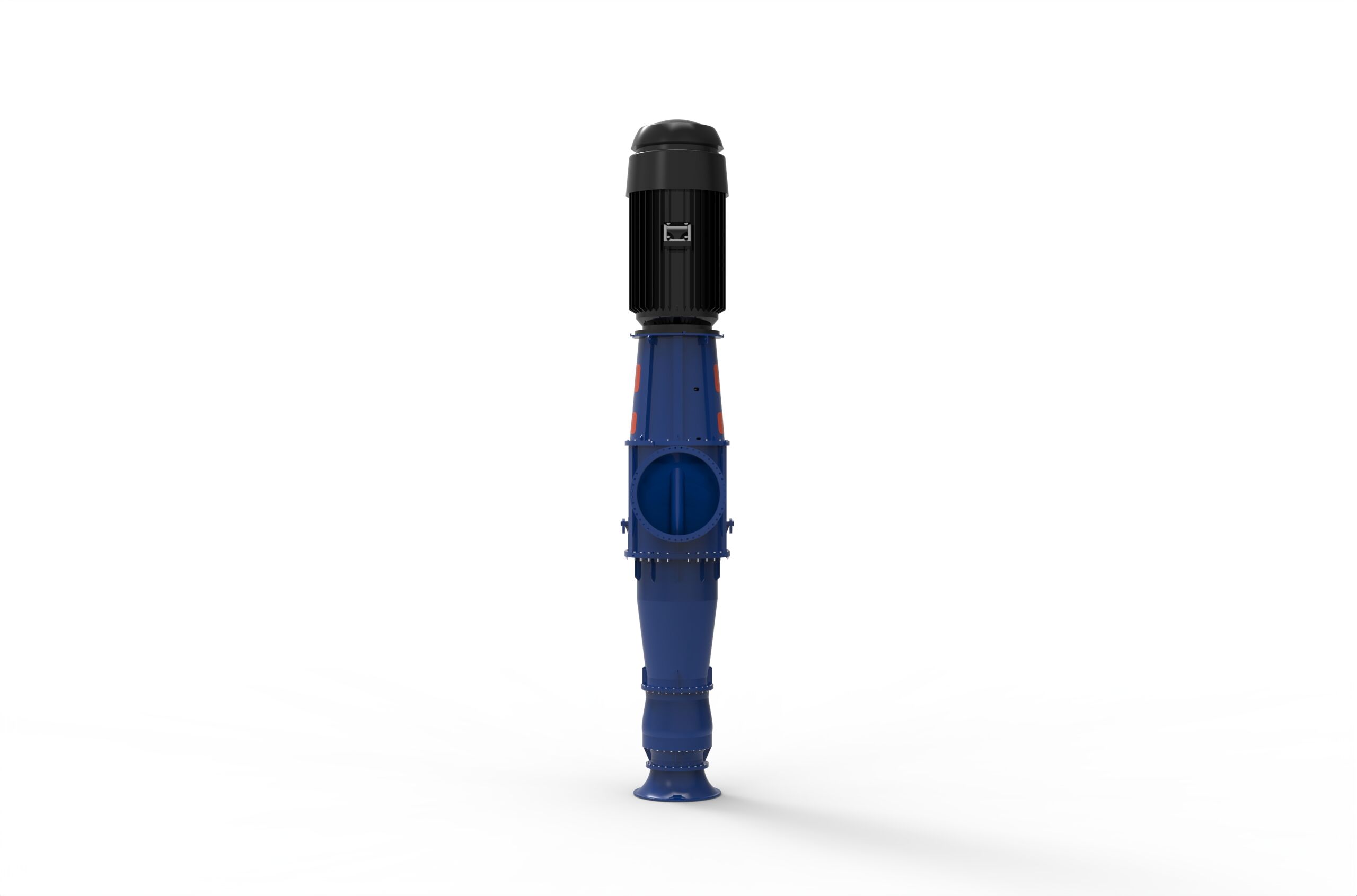

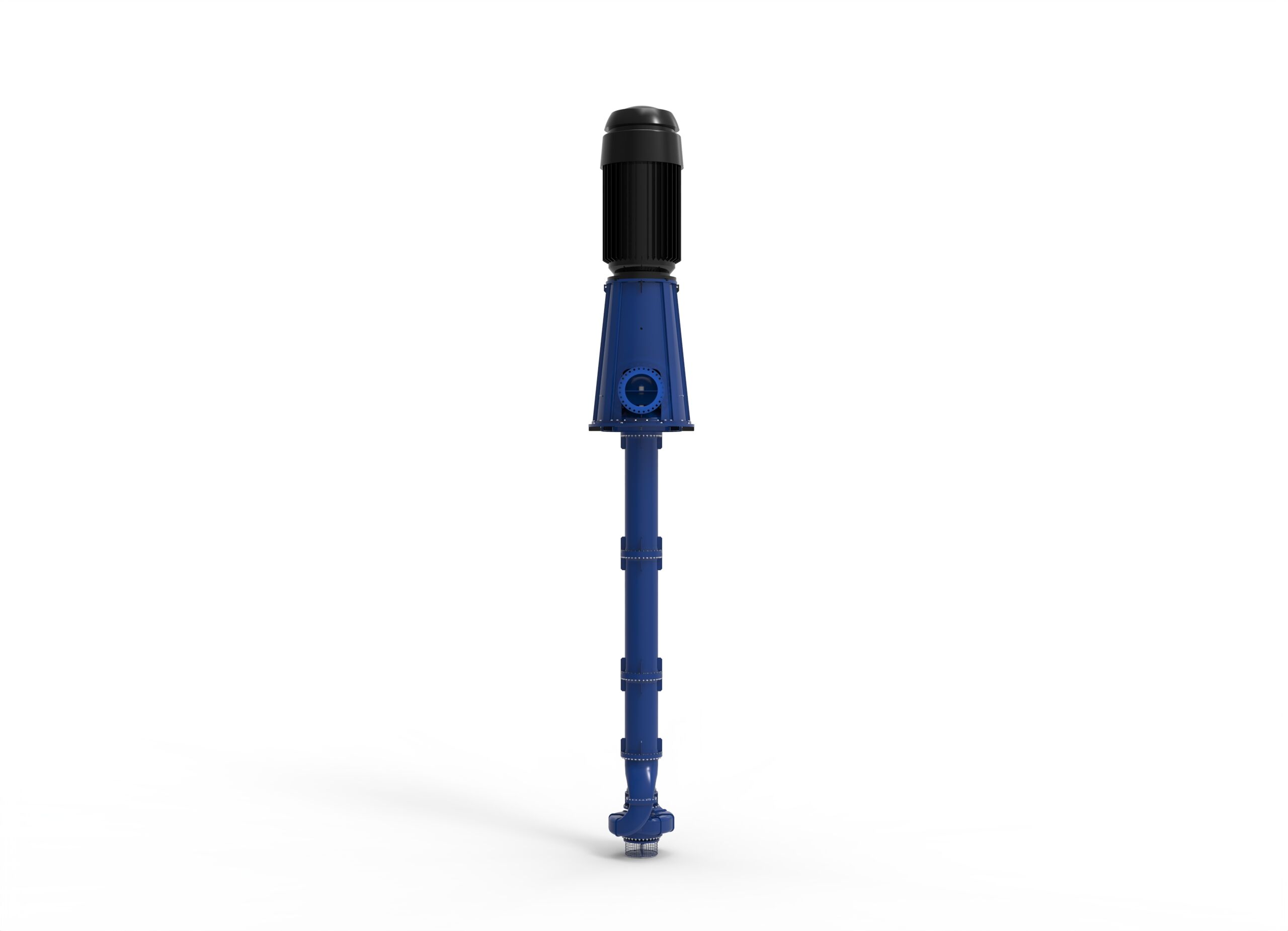

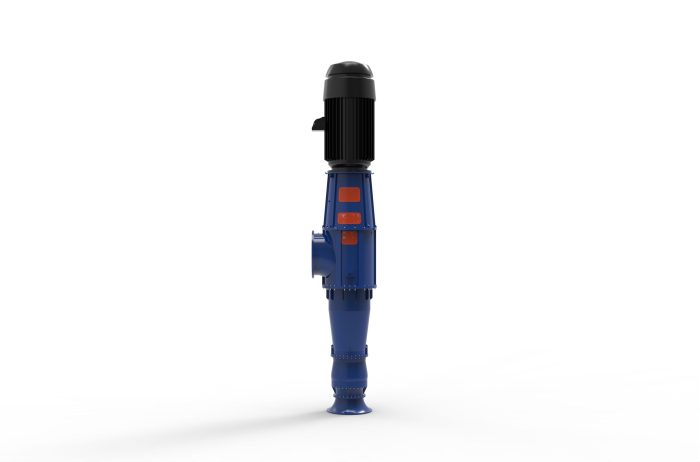

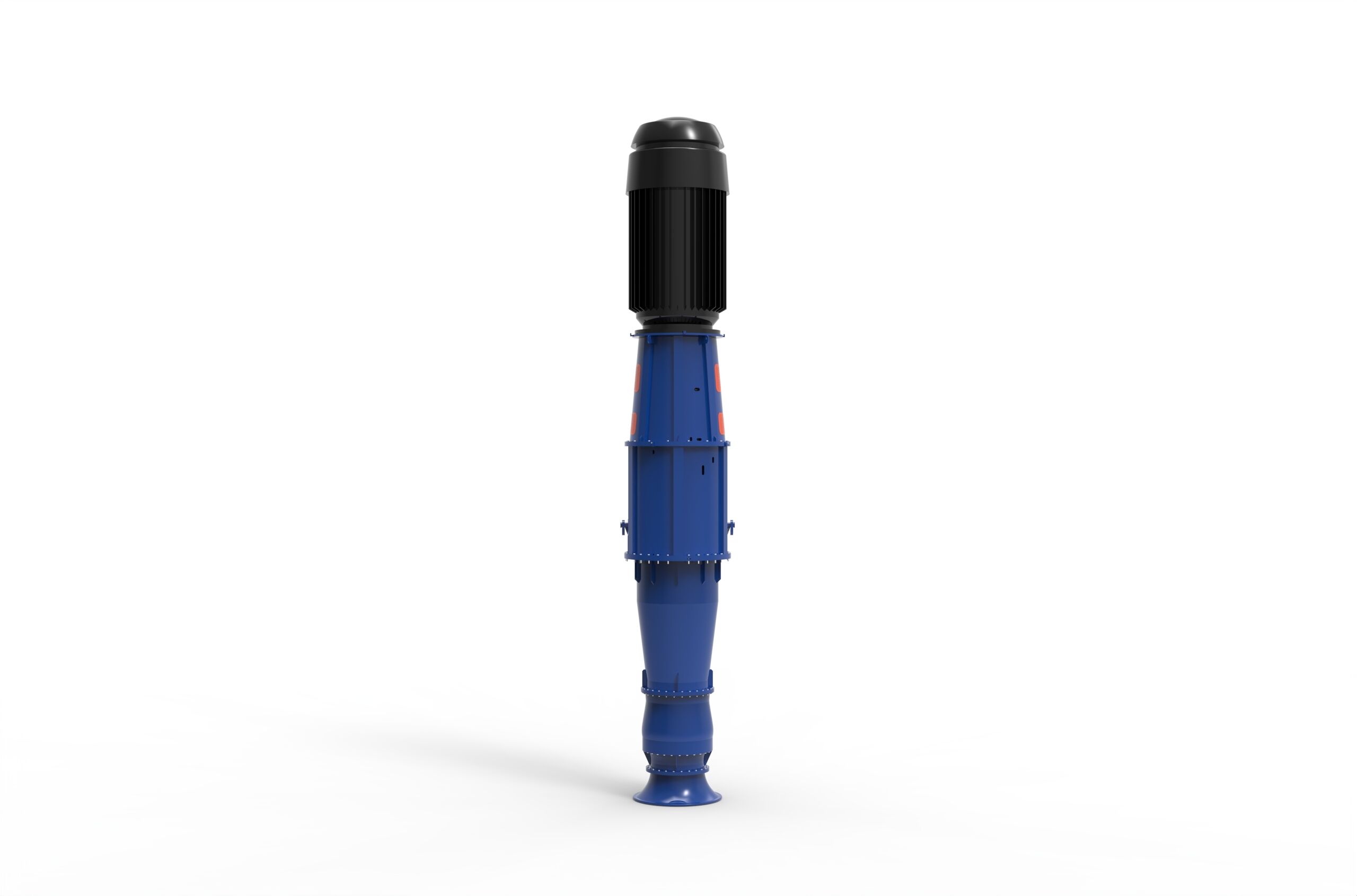

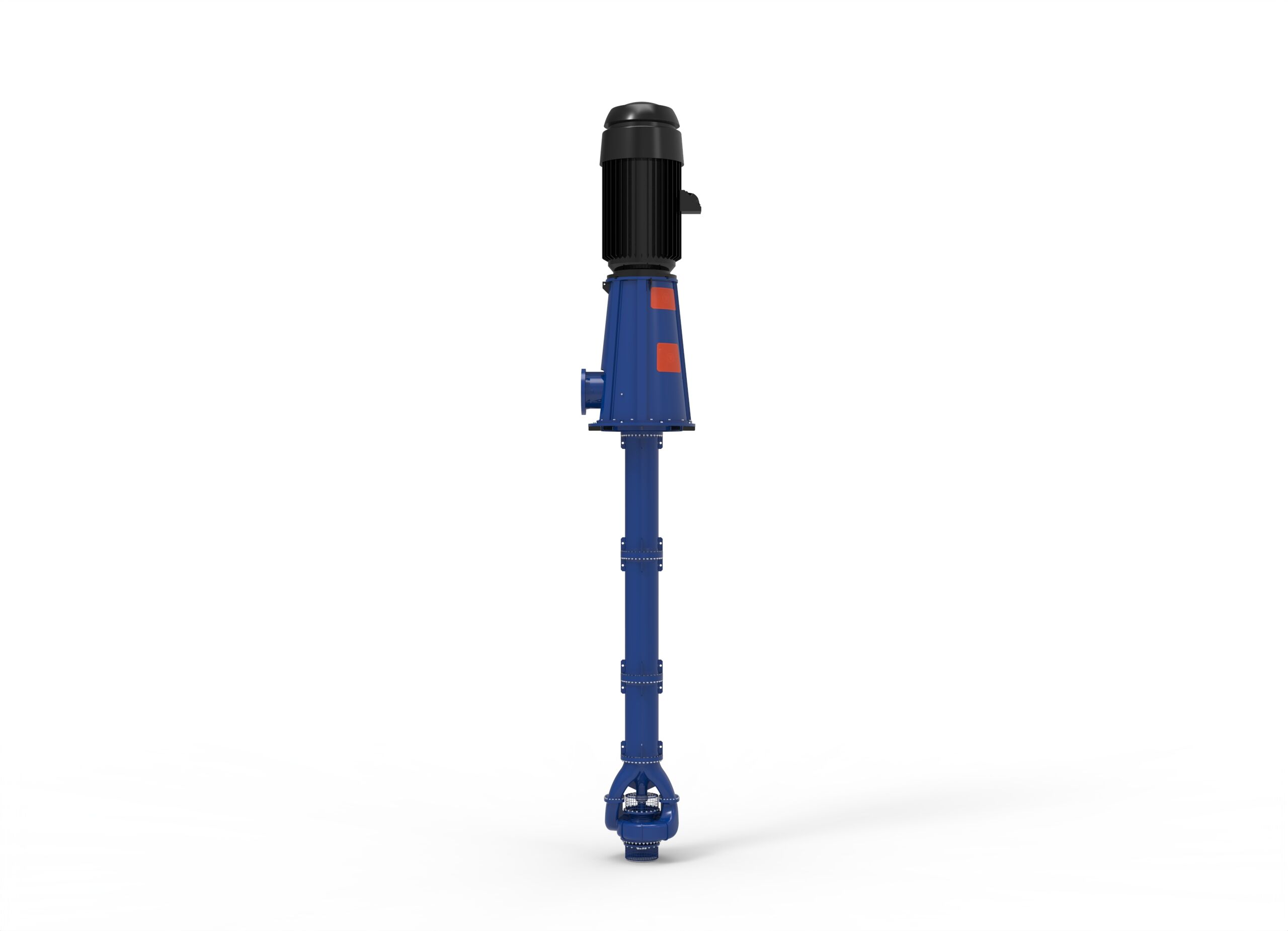

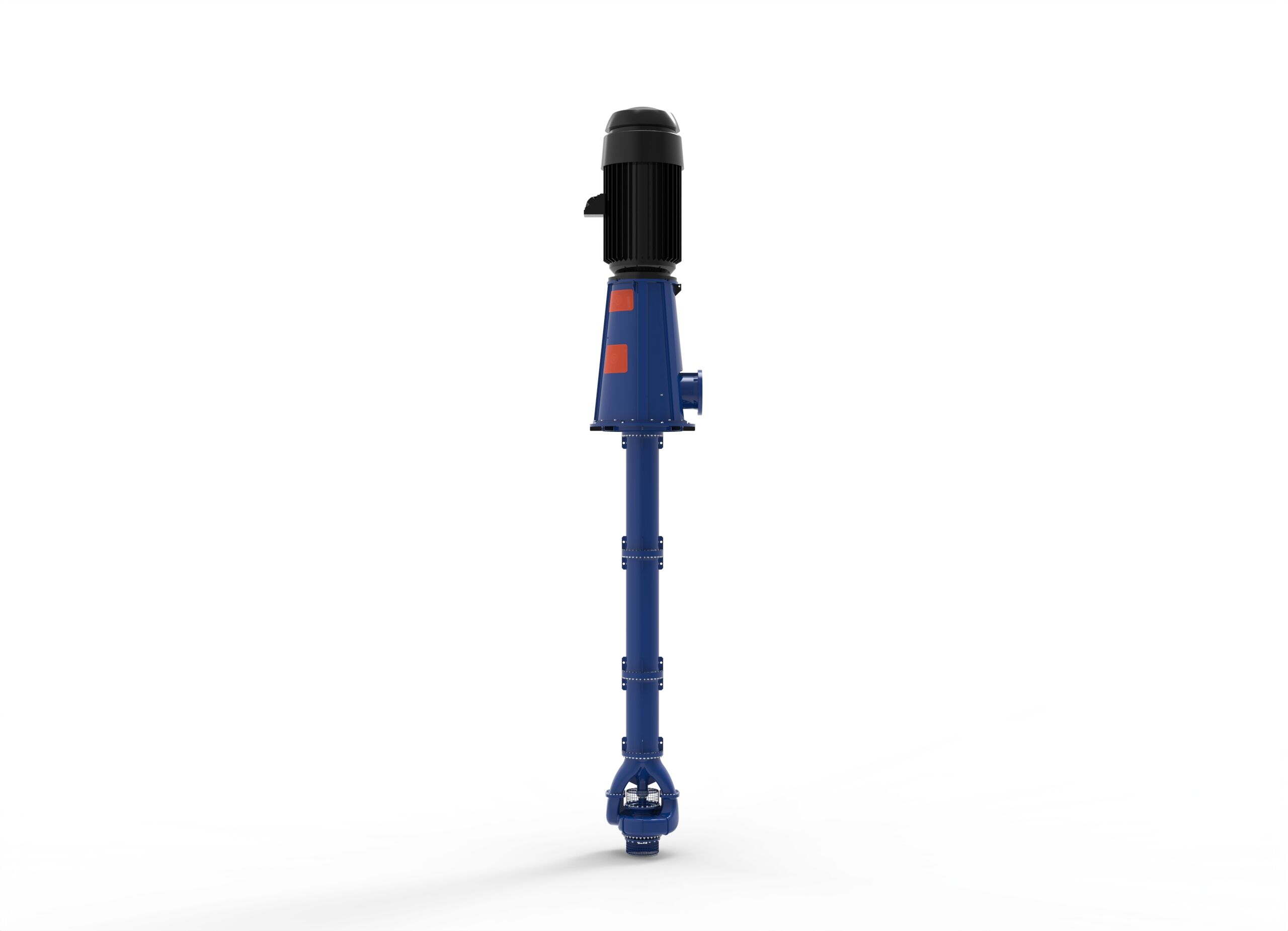

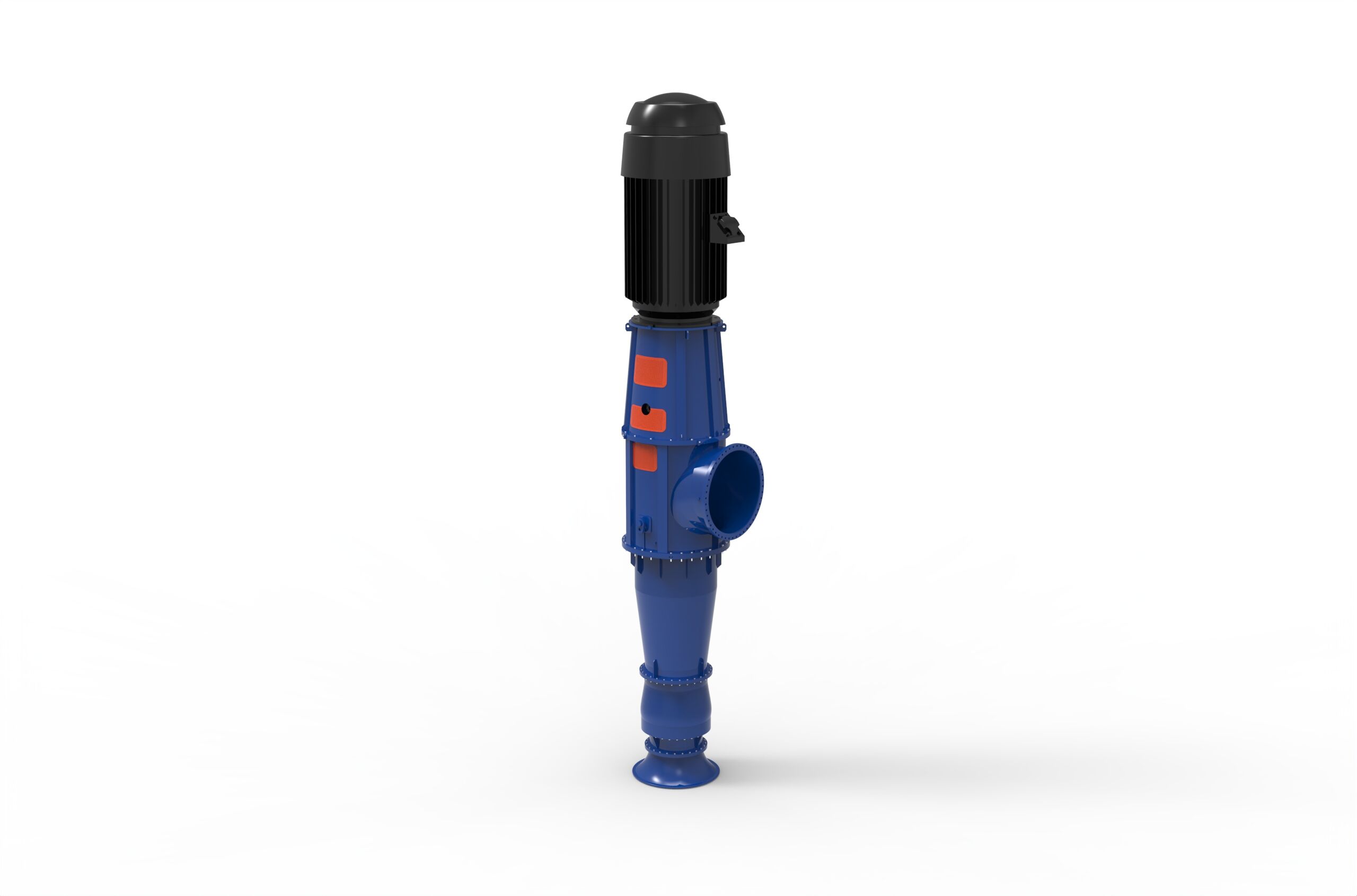

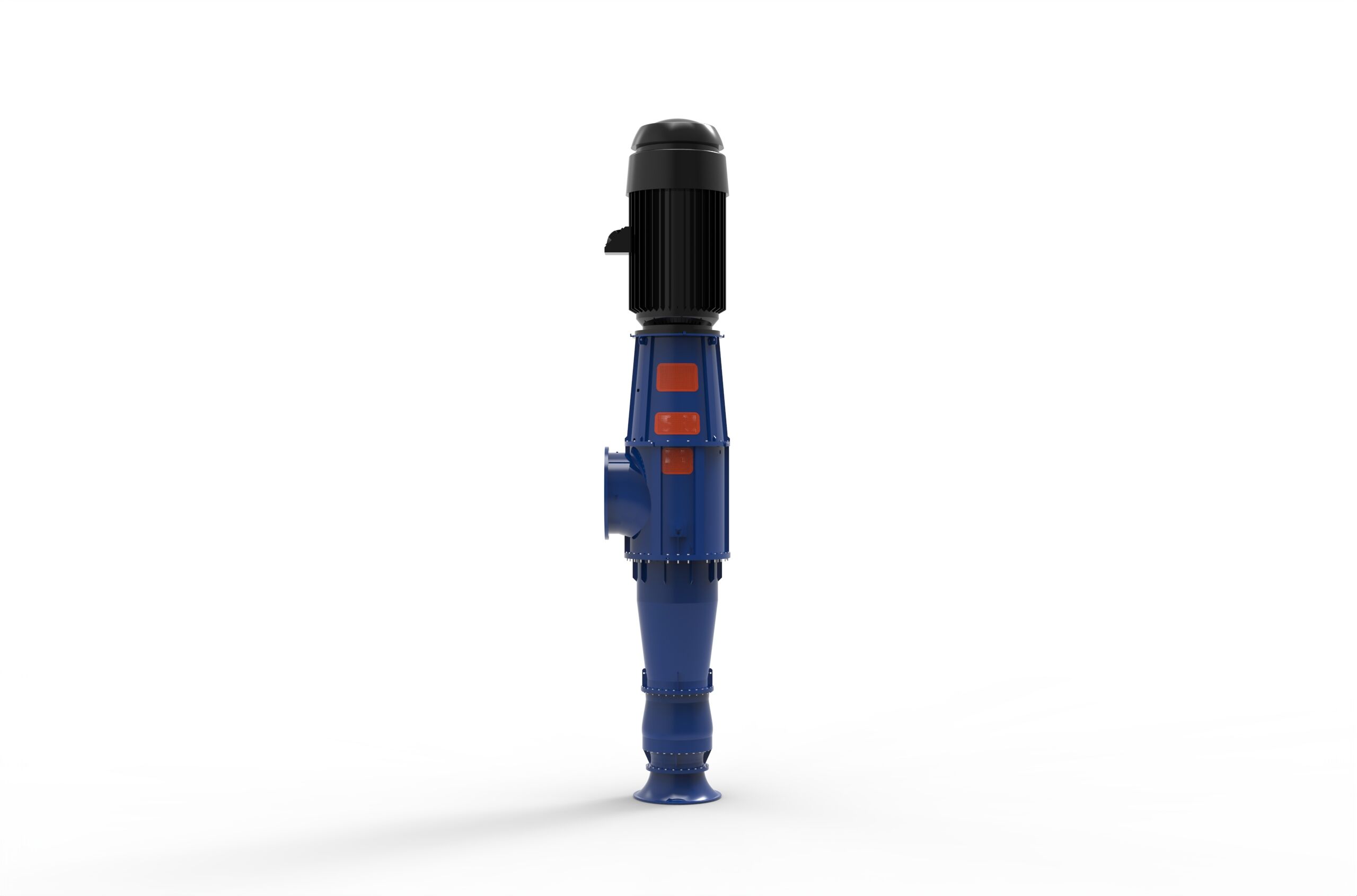

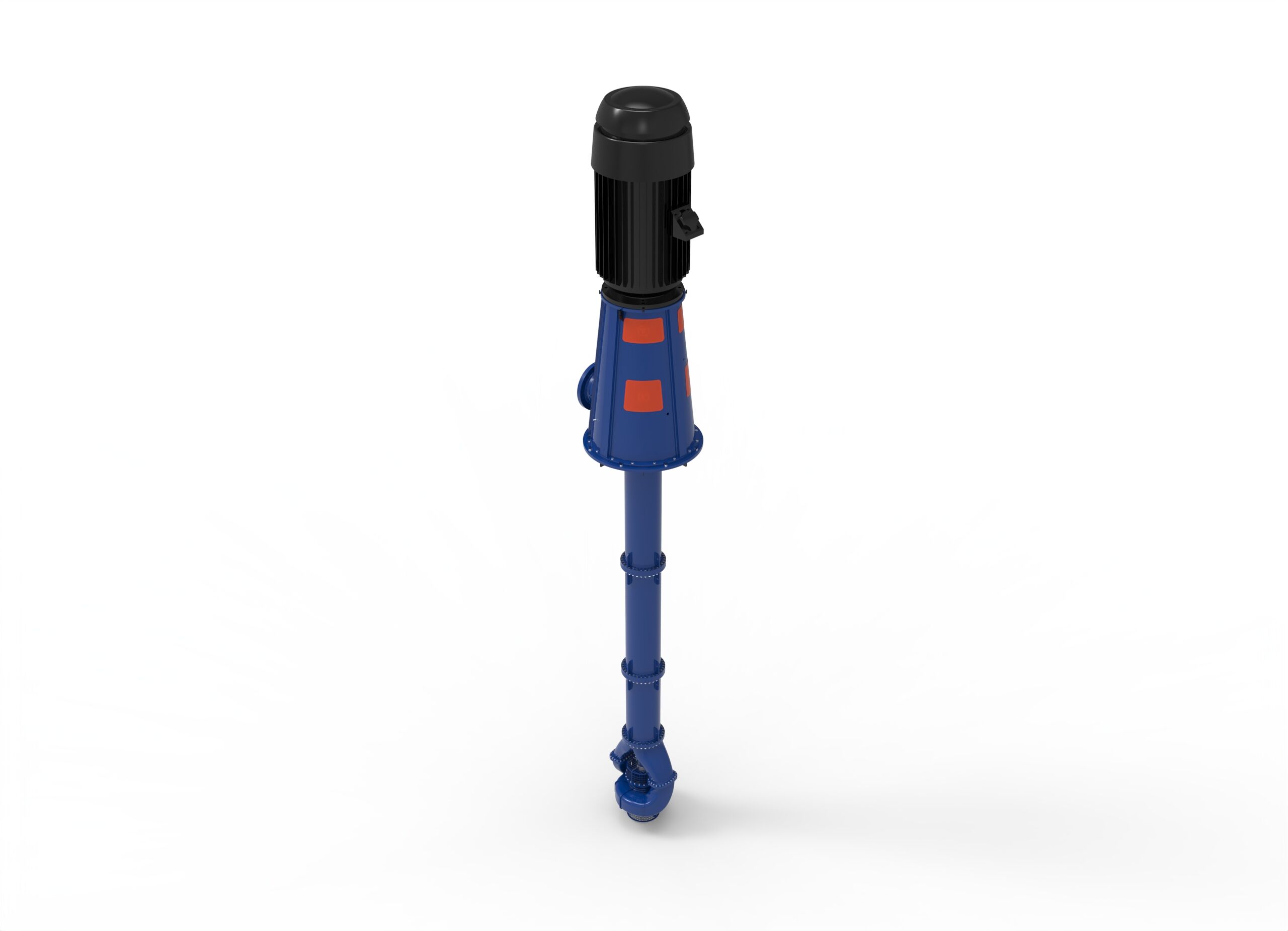

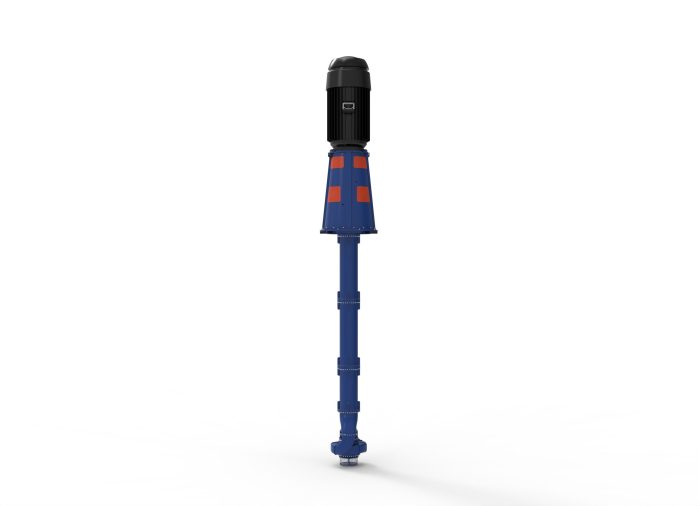

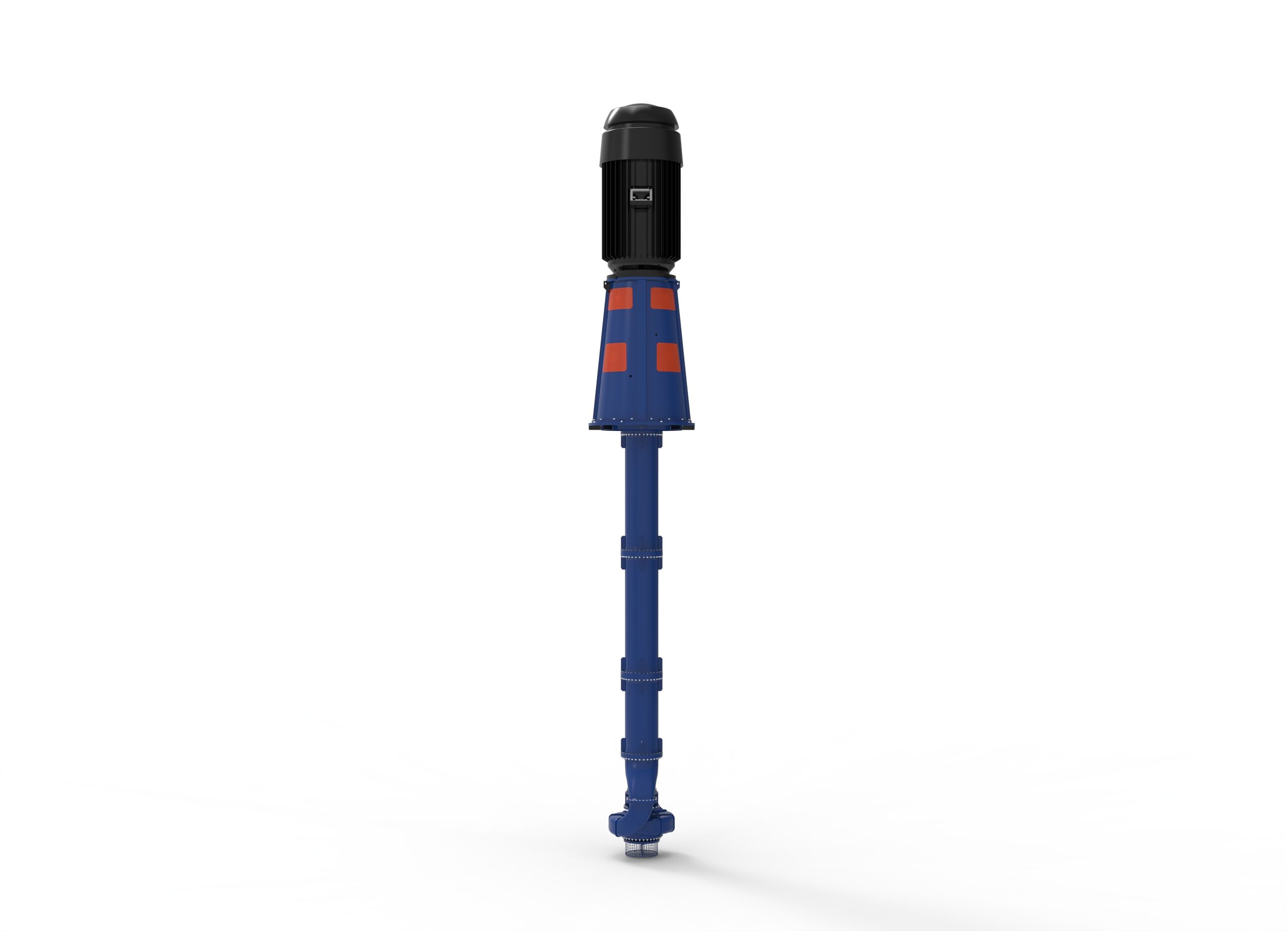

Termomeccanica Pompe CPP & CPPD pumps are wet pit, vertically suspended, single casing, with discharge through the column.

The CPP model refers to single or multistage diffuser pumps (VS1), with radial or mixed flow impellers. The CPPD models refer to single stage volute pumps (VS2), with a single or double suction radial impeller.

Designs in full compliance with API 610 are available on small and medium size standardized models. Larger sizes are custom-made, designed in compliance with international standards, including API 610. For large capacities, CPP pumps can also be supplied in dry pit solutions.

OPERATING RANGE

Capacity up to 100,000 m³/h (440,000 gpm)
Head up to 2,000 m (6,560 ft.)
Pressure up to 220 bar (3,190psig)
Temperature range from -150°C (-300°F) to 400°C (750°F)
Settings up to 50 m (164 ft.)

MAIN APPLICATIONS

Condenser & cooling water for power plants
Industrial cooling water services
Water supply
Flood control & irrigation
Desalination sea water intake
Offshore sea water lift
Hydrocarbon pipelines & transfer service
Chemical & petrochemical auxiliary services
Molten salt services in solar power plants
Fire fighting service

DESIGN STANDARD

API 610 Latest Edition for O&G applications
