These submersible multistage pumps have many applications including:
- The pumping of clear water from 4″ bores
- Domestic, farm or industrial water supply
- Irrigation
Ebara – Winner 4″ Bore Hole Pumps
- Quality Stainless Steel Construction
- Proven Design
- Clean Water Application
Pump Specificaitons:
- Motor output: 0.37 to 2.2 kW (1ph), 0.37 to 5.5 kW (3ph)
- Outlet size: 32 to 50 mm

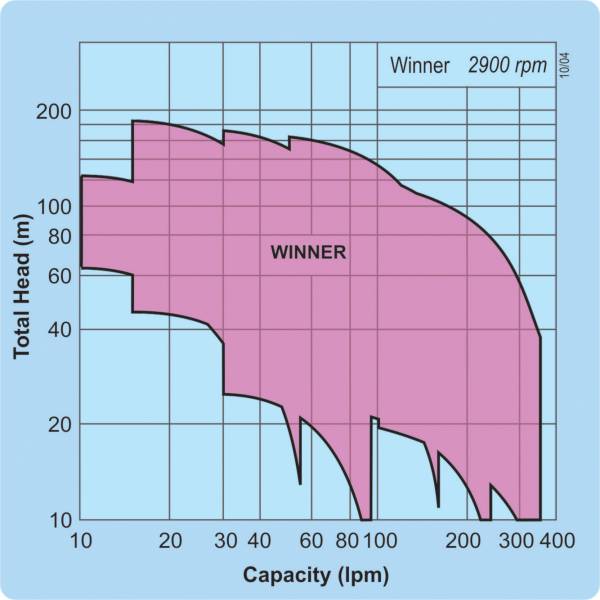

- Flow rates: 10 to 350 lpm
- Head: 10 to 180 m
- Max. liquid temp: 30oC
- Max. immersion: 100m
- Max sand: 50 ppm
Motor Details:
- 2 Pole, 50 Hz˜
- Water filled motors
- 304 Stainless Steel
- 4″ NEMA flange
- IP68 protection
- 230 Volt Single Phase – 0.37 to 3.7 kW
- 400 Volt Three Phase – 0.37 to 5.5 kW
- Maximum submergence: 150 m
- Maximum temperature: 35 °C
- Starts per hour: 30
Pump Features/Construction:
- Impellers: xef (Glass filled Polyarylmide)
- Intermediate casings: 304 Stainless Steel
- Diffusers: Glass filled PPO (Poly-phenylene oxide)
- Discharge casing: Cast 304 Stainless Steel
- Check valve: 304 Stainless Steel
- Shaft: 304 Stainless Steel
- Motor Bracket: Cast 304 Stainless Steel
- Bearing: Ceramic / EPDM®
